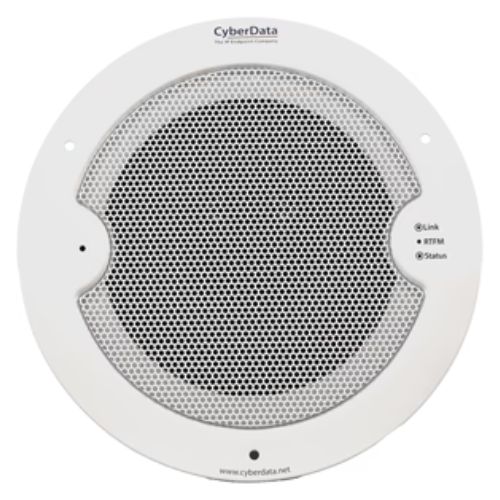

CyberData 011394 - SIP Speaker
The CyberData 011394 SIP Speaker with Talk-Back is a PoE-powered indoor VoIP paging speaker designed for classrooms, offices, medical facilities, clinics, hallways, administrative areas, and other locations that need both overhead paging and two-way voice communication. Its integrated microphone allows the speaker to operate as more than a traditional paging endpoint, supporting full-duplex conversations when talk-back is enabled.
The 011394 supports simultaneous SIP and multicast operation, up to 10 prioritized multicast paging groups, Poly group paging reception, Ambient Noise Compensation, scheduled or manual audio health checks, Monitor Mode, adaptive half-duplex communication, Loud/Night Ringer operation, user-uploadable ring and alert tones, an optional external 8-ohm analog speaker, auxiliary RGB strobe integration, a DTMF-controlled relay, line-level audio output, IEEE 802.3af/at PoE, TLS/SRTP security, VLAN tagging, automatic provisioning, and network-adjustable volume.
Key Features
- CyberData 011394 SIP Speaker with Talk-Back
- Indoor PoE SIP and multicast paging speaker
- Integrated microphone for two-way communication
- Talk-back capability can be enabled through provisioning or web configuration
- Full-duplex audio with configurable echo cancellation
- Adaptive half-duplex audio with configurable VOX settings
- Half-duplex push-to-talk from compatible far-end phone keypad
- Room-side push-to-talk with compatible CyberData Remote Call Button
- Ambient Noise Compensation
- Scheduled or manually initiated audio health checks
- Monitor Mode support
- SIP RFC 3261 compatible
- Simultaneous SIP and multicast operation
- Up to 10 multicast paging groups
- Paging prioritization
- Receives compatible Poly group pages
- Loud / Night Ringer using a second SIP extension
- User-uploadable ring and alert tones
- SIP security-code support
- Network-adjustable speaker volume
- 103 dB SPL at 1 meter using IEEE 802.3af PoE
- 105 dB SPL at 1 meter using IEEE 802.3at PoE
- Can drive one optional external 8-ohm analog speaker
- Compatible with CyberData 011121 Auxiliary Analog Speaker
- Supports compatible CyberData Auxiliary RGB Multi-Color Strobe
- DTMF-controlled onboard relay
- 1A at 30VDC relay rating
- Line-level audio output
- 10/100 Mbps Ethernet
- IEEE 802.3af and IEEE 802.3at PoE
- TLS 1.2 network security
- SRTP encrypted media
- HTTPS web-based configuration
- HTTP, HTTPS and TFTP autoprovisioning
- IEEE 802.1Q VLAN tagging
- Cisco SRST and multiple SIP-server redundancy support
- Configurable device-health and status events
- Drop-ceiling and drywall mounting hardware included
- TAA compliant
Applications & Use Cases
- Classrooms and educational facilities
- Schools and campus buildings
- Medical offices and clinics
- Healthcare facilities
- Corporate offices
- Administrative areas
- Hallways and common areas
- Indoor overhead paging
- Two-way classroom communications
- SIP paging and calling
- Multicast paging systems
- Poly group-paging environments
- Loud / Night Ringer applications
- Room-to-office communications using a Remote Call Button
- Paging systems requiring speaker health monitoring
- Applications requiring automatic volume adjustment based on ambient noise
- Visual notification with compatible RGB strobe
Technical Specifications
Product & Protocol
- Product: CyberData SIP Speaker with Talk-Back
- Manufacturer Part Number: 011394
- NTS Direct SKU: 011394-Z
- Product Type: Indoor SIP / Multicast IP Speaker with Talk-Back
- SIP: RFC 3261 Compatible
- Shared Operations Guide: 932055B, Firmware Version 22.0
Talk-Back & Two-Way Audio
- Talk-Back: Supported
- Integrated Microphone: Yes
- Full Duplex: Supported
- Echo Cancellation: Configurable
- Adaptive Half Duplex: Supported
- VOX: Configurable Voice-Operated Switching
- Far-End Push-to-Talk: Supported Through Compatible Phone Keypad
- Room-Side Push-to-Talk: Supported with Compatible CyberData Remote Call Button
- Monitor Mode: Supported
Speaker & Audio
- Audio Output with IEEE 802.3af: 103 dB SPL at 1 Meter
- Audio Output with IEEE 802.3at: 105 dB SPL at 1 Meter
- Audio Codecs: G.711 A-Law, G.711 µ-Law, G.722 and G.729
- Ambient Noise Compensation: Supported
- Audio Health Check: Scheduled or Manual
- Network Volume Control: Supported
- User-Uploadable Ring / Alert Tones: Supported
SIP & Multicast
- Simultaneous SIP & Multicast: Supported
- Multicast Paging Groups: Up to 10
- Paging Prioritization: Supported
- Poly Group Paging: Supported
- Second SIP Extension: Supported for Loud / Night Ringer
- SIP Security Code: Supported
- Cisco SRST: Supported
- Multiple SIP Servers: Supported for Redundancy
Auxiliary Speaker
- External Speaker Support: 1 Optional 8-Ohm Analog Speaker
- Documented Accessory: CyberData 011121 Auxiliary Analog Speaker
- Recommended Speaker Wire: High-Purity 16-Gauge Copper
- Maximum Documented Speaker-Wire Length: 20 ft / 6.1 m
- Best Performance: IEEE 802.3at PoE Recommended When Using Auxiliary Speaker
Line Output
- Line-Level Output: Supported
- Maximum Output Signal: 2.0 VPP
- Nominal Output Level: +2 dBm
- Total Harmonic Distortion: 0.5% Maximum
- Output Impedance: 10k Ohms
- Application: Compatible External Amplifiers and Line-Level Audio Equipment
Relay & Accessory Connections
- Onboard Relay: Normally Open Dry Contact
- Relay Rating: 1A at 30VDC
- DTMF Relay Control: Supported
- Remote Call Button: Supported
- Remote Call Button LED: Supported
- Auxiliary RGB Strobe: Supported
- Auxiliary Speaker Output: Supported
- Line Output: Supported
Network
- Ethernet Interface: 10/100 Mbps
- DHCP: Supported
- Static IP: Supported
- DHCP Fallback Address: 192.168.1.23
- VLAN: IEEE 802.1Q Tagging Supported
- Web Configuration: HTTPS
- CyberData Discovery Utility: Supported
Power
- Power Input: IEEE 802.3af / IEEE 802.3at PoE
- 802.3af Audio Output: 103 dB SPL at 1 Meter
- 802.3at Audio Output: 105 dB SPL at 1 Meter
- Separate AC Power: Not Required with Compatible PoE
- AC Voltage Inside Enclosure: Not Supported
Security & Management
- TLS: TLS 1.2
- SRTP: Supported
- HTTPS: Supported
- Web-Based Configuration: Supported
- Autoprovisioning: HTTP, HTTPS or TFTP
- Configurable Device-Health Events: Supported
- Configurable Status Events: Supported
- Web-Based Firmware Upgrade: Supported
Mounting
- Mounting: Drop Ceiling or Drywall
- Speaker Opening: 7.50 Inches / 190.5 mm
- Mounting Screw Hole Diameter: 0.1875 Inches / 4.75 mm
- Mounting Pattern: 3-Point / 120-Degree Spacing
- Drop-Ceiling Mounting Hardware: Included
- Drywall Mounting Hardware: Included
Environmental
- Application: Indoor
- Operating Temperature: -40°C to 55°C / -40°F to 131°F
- Operating Humidity: 5% to 95% Non-Condensing
- Storage Temperature: -40°C to 70°C / -40°F to 158°F
- Storage Altitude: Up to 15,000 ft / 4,573 m
Physical
- Grille Diameter: 9.055 Inches / 230 mm
- Speaker Can Diameter: 7.25 Inches / 184.2 mm
- Published Can Depth: 3.08 Inches / 76.11 mm
- Weight: 3.0 lb / 1.36 kg
- Boxed Weight: 4.0 lb / 1.81 kg
Compliance
- CE: EN 55032 / EN 55024
- Safety: EN 62368-1
- RoHS: Compliant
- FCC: Part 15 Class A
- Industry Canada: ICES-3 Class A
- IEEE 802.3: Compliant
- TAA: Compliant
Package Includes
- CyberData 011394 SIP Speaker with Talk-Back Assembly
- Speaker / Screw-Hole Mounting Template
- Drop-Ceiling Mounting Kit
- 3 #8 Nylon Thumb Nuts
- 3 #8 Fender Washers
- 3 8-32 × 1-1/4-Inch Mounting Screws
- Drywall Mounting Kit
- 3 Plastic Ribbed Anchors
- 3 #6 Sheet-Metal Screws
Compatibility & Buying Information
Exact Product: This page is for the CyberData 011394 SIP Speaker with Talk-Back sold under NTS Direct SKU 011394-Z.
011394 vs. 011396: The 011394 is the standard SIP Speaker with Talk-Back. CyberData 011396 is the related InformaCast Enabled Speaker with Talk-Back. Do not apply 011396-specific Singlewire InformaCast features to this 011394 listing.
Talk-Back: When enabled, the integrated microphone allows the speaker to support two-way conversations rather than functioning only as an overhead paging endpoint.
Full-Duplex Mode: The speaker supports full-duplex two-way communication with configurable echo cancellation for classrooms, offices, clinics, and other indoor conversational environments.
Adaptive Half Duplex: Adaptive half-duplex operation with configurable VOX settings is also available when acoustic conditions make full-duplex communication less appropriate.
Push-to-Talk: Half-duplex push-to-talk can be controlled from a compatible far-end phone keypad. Room-side push-to-talk can also be initiated using a compatible CyberData Remote Call Button.
Remote Call Button: A compatible CyberData Remote Call Button can allow someone in the room to initiate a call to a predetermined extension rather than waiting for an incoming call to the speaker.
Ambient Noise Compensation: The speaker can measure ambient sound levels and automatically adjust output volume to help maintain intelligibility as background noise changes.
Audio Health Check: CyberData provides scheduled and manually initiated health checks to help verify that the speaker's audio hardware remains operational.
Monitor Mode: Monitor Mode is available for deployments requiring room-audio monitoring. Organizations should use monitoring functions in accordance with applicable laws, policies, and notice requirements.
Multicast Paging: The speaker supports simultaneous SIP and multicast operation and up to ten prioritized multicast paging groups. It can also receive pages from compatible Poly phones.
Night Ringer: A second SIP extension can be used for Loud / Night Ringer applications and incorporated into compatible PBX hunt or ring groups.
Optional Auxiliary Speaker: The 011394 can drive one compatible external 8-ohm analog speaker to increase physical coverage. CyberData specifically documents the 011121 Auxiliary Analog Speaker as a related accessory.
Auxiliary Speaker Wiring: CyberData documents high-purity 16-gauge copper speaker wire with a maximum run of 20 feet for the auxiliary-speaker connection. Higher-power 802.3at operation is recommended for best performance when an auxiliary speaker is attached.
Total Audio Power: Adding an auxiliary analog speaker expands coverage by distributing the available amplifier output across two speakers; it should not be interpreted as doubling the amplifier's total available wattage.
RGB Strobe: CyberData 011288 Auxiliary RGB Multi-Color Strobe Kit is a documented visual-notification accessory for the 011394 and connects using the strobe's supplied cable.
Line Output: The speaker provides a line-level output for compatible external amplifiers when a larger or separate audio system needs to receive paging audio.
Relay: The onboard normally open dry relay is rated for 1A at 30VDC and can be controlled through supported DTMF functions.
802.3af vs. 802.3at: CyberData publishes 103 dB SPL at one meter using IEEE 802.3af and 105 dB SPL at one meter using IEEE 802.3at. PoE+ is therefore preferable when maximum output or accessory support is required.
Indoor Speaker: Although the published operating-temperature range extends from -40°C to 55°C, CyberData identifies the 011394 as an indoor public-address speaker. High-noise or harsh outdoor applications are better served by an appropriate outdoor horn or intercom.
Mounting: The standard package supports both drop-ceiling and drywall installation and includes the mounting template and hardware for both installation types.
Related Mounting Accessories: CyberData's current documentation also identifies the 010991 Ceiling Mount, 011039 Conduit Speaker Mount, 011152 Speaker Wall Mount, 011154 Wall Mount Clock Kit, and 011523 Auxiliary Analog 2 × 2 Ceiling Tile Drop-In Speaker as related speaker accessories.
PoE Connection: CyberData specifies that the Ethernet/PoE connection is intended for intra-building use and should not be routed directly to outside-plant cabling.
No AC Voltage Inside Enclosure: The speaker enclosure is not rated for AC mains voltage. Power should be supplied using the documented PoE connection.
Current Documentation: The supplied 932055B IP Speakers with Talk-Back Operations Guide is CyberData's current firmware-version-22.0 guide for the 011394 / 011396 talk-back speaker platform.
Best Fit: CyberData 011394 is ideal for classrooms, offices, clinics, healthcare facilities, administrative areas, and other indoor locations requiring SIP paging, multicast announcements, automatic volume adjustment, speaker health monitoring, and two-way room communication from a single PoE ceiling speaker.
