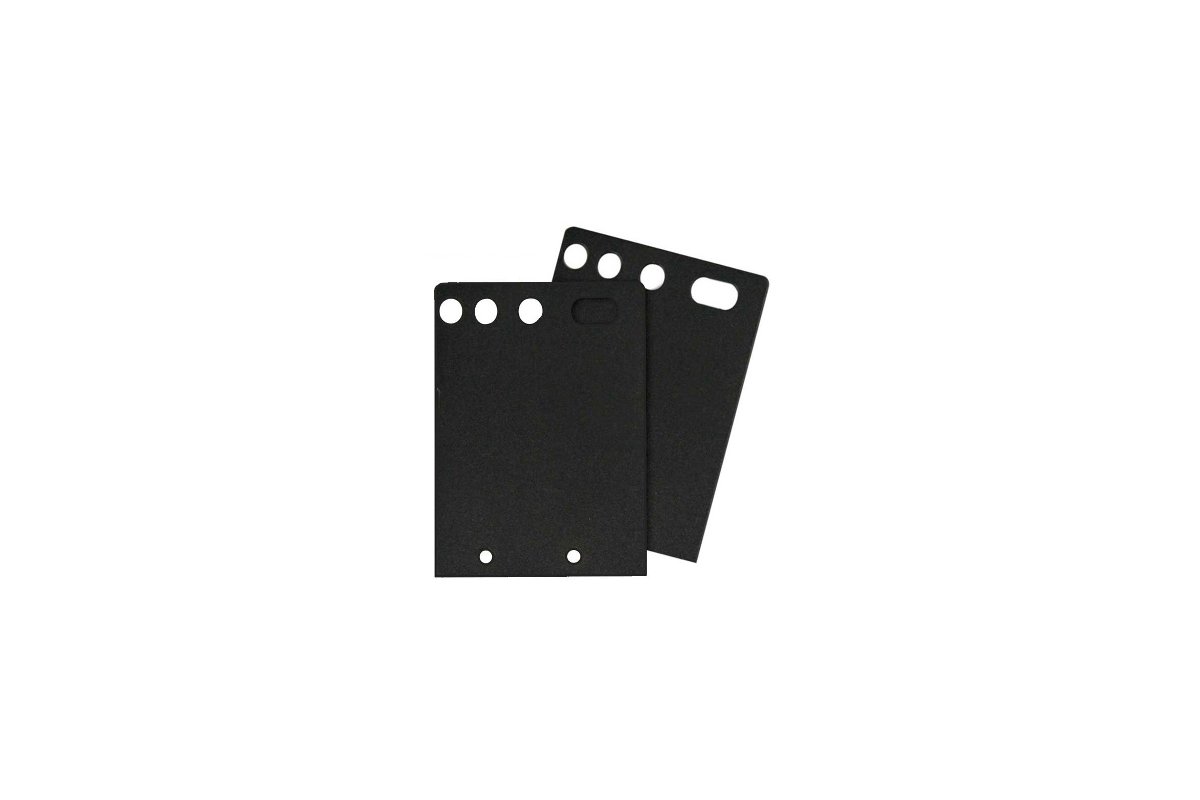

Mitel 415 SMBC rack mount kit - 20350236
The Mitel 20350236 SMBC Rack Mount Kit is a mounting accessory designed to install a Mitel SMB Controller in a standard 19-inch equipment rack. While the SMB Controller includes the hardware required for standard wall or desktop installation, this optional rack-mount kit provides the mounting plates and fasteners needed for an organized rack-based deployment.
The kit is well suited for telecom rooms, server rooms, network closets, and other installations where the SMB Controller needs to be integrated with rack-mounted switches, gateways, UPS systems, and other communications equipment. Mitel also identifies the 20350236 mounting kit with the legacy Mitel 415 / Aastra 415 platform, which is why the accessory is commonly described as the 415/SMBC Rack Mount Kit.
Key Features
- Official Mitel rack-mount kit
- Exact manufacturer part number 20350236
- Designed for Mitel SMB Controller installations
- Supports installation in a standard 19-inch equipment rack
- Converts the SMB Controller from wall/desktop mounting to rack mounting
- Includes 2 rack mounting plates
- Includes required mounting screw set
- Rack-mounted SMB Controller width becomes 483 mm / 19 in
- Rack-mounted SMB Controller height remains approximately 65 mm / 2.5 in
- Rack-mounted SMB Controller depth remains approximately 294 mm / 11.6 in
- Compatible with current Mitel SMB Controller hardware
- Also associated with legacy Mitel 415 / Aastra 415 installations
- Suitable for telecom rooms, network closets, and equipment racks
- Mounting accessory only - SMB Controller not included
Applications & Use Cases
- Mitel SMB Controller rack installations
- MiVoice Business hardware deployments
- Server-room installations
- Telecommunications equipment rooms
- Network closets
- Structured equipment racks
- Branch-office communications systems
- Small and midsize business phone-system installations
- Professional replacement of desktop or wall mounting with rack mounting
- Legacy Mitel 415 / Aastra 415 rack installations
Technical Specifications
Product
- Product: Mitel SMBC Rack Mount Kit
- Manufacturer Part Number: 20350236
- Accessory Type: Rack Mounting Hardware
- Rack Standard: 19-Inch Equipment Rack
- Primary Platform: Mitel SMB Controller
Compatibility
- Mitel SMB Controller: Compatible
- SMB Controller 8/38G: Mitel 50008381
- Legacy Mitel 415: Compatible Rack-Mount Application
- Legacy Aastra 415: Commonly Associated with Same 20350236 Mounting Kit
Rack Installation
- Rack Width: Standard 19 in / 483 mm
- Controller Height When Rack Mounted: Approximately 65 mm / 2.5 in
- Controller Depth When Rack Mounted: Approximately 294 mm / 11.6 in
- Approximate Rack Height: 1.5U
- Rack-Mounted Controller Weight: Approximately 2.5 kg in Published Mitel SMBC Technical Data
Mounting Components
- Rack Mounting Plates: 2
- Mounting Screw Set: Included
- Installation Type: Horizontal Rack Installation
Related SMB Controller Accessories
- SMB Controller: Mitel 50008381
- SMBC Cable Cover Kit: Mitel 20350090
- System Module 2 DSPX: Mitel 20351208
- North American Power Cord: Mitel 51005172
Package Includes
- 2 x Mitel SMB Controller Rack Mounting Plates
- Rack Mounting Screw Set
Compatibility & Buying Information
Exact Part Number: This page is for Mitel part number 20350236, the SMBC Rack Mount Kit.
Rack Mount Kit Only: This product contains mounting hardware only. It does not include the Mitel SMB Controller, power supply, DSPX module, interface cards, software, licenses, or other communications equipment.
Required for Rack Installation: The SMB Controller includes the components required for wall or desktop installation. Mitel specifies the optional 20350236 rack installation set when the controller will be installed in a standard 19-inch rack.
19-Inch Rack: With the mounting kit installed, the SMB Controller occupies the full standard 483 mm / 19-inch rack width.
Rack-Mounted Dimensions: Mitel publishes rack-mounted SMB Controller dimensions of approximately 65 mm high, 483 mm wide, and 294 mm deep.
Kit Contents: Mitel's current SMB Controller System Manual specifies two rack mounting plates and a screw set as the supplied components of the rack-mounting set.
SMBC vs. Cable Cover: The 20350236 rack kit should not be confused with Mitel 20350090, which is the separate SMB Controller Cable Cover Kit used primarily for wall-mounted installations.
Legacy 415 Compatibility: Part number 20350236 is also commonly identified as the Mitel 415 / SMB Controller rack-mounting kit and is used with compatible legacy Mitel 415 / Aastra 415 installations.
Ventilation: The SMB Controller's normal installation and ventilation requirements still apply when the unit is rack mounted. The controller should be installed so cooling airflow is not obstructed.
Best Fit: Mitel 20350236 is the appropriate accessory when a compatible SMB Controller needs to be securely integrated into a standard 19-inch telecom, network, or server rack rather than mounted on a wall or placed on a desktop.
