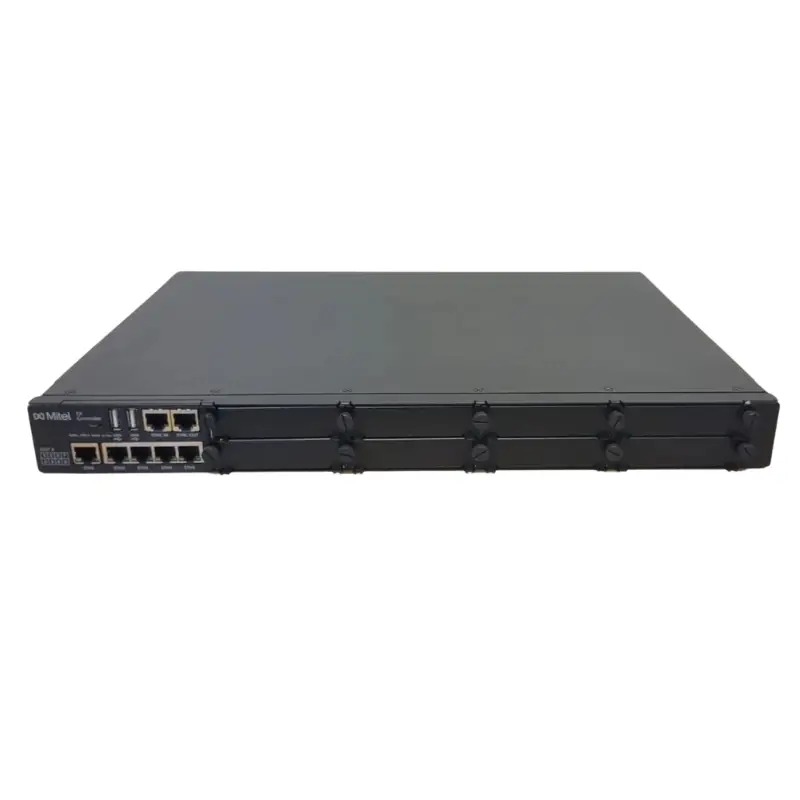

Mitel EX Controller 4/60G - 50008229
The Mitel EX Controller 4/60G 50008229 is a MiVoice Business communications hardware platform designed for medium-size businesses, enterprise locations, and branch-office deployments requiring integrated IP call processing and modular traditional telephony connectivity. This configuration combines an Intel Celeron N2930 processor, 4 GB of RAM, 60 GB of solid-state storage, a single power supply, Gigabit Ethernet networking, and eight telephony-card positions in a compact 1U chassis.
The EX Controller can combine MiVoice Business call processing with optional T1/E1 PRI, analog FXS station, analog FXO trunk, and DSP resources. Depending on installed cards, licensing, software, and system design, the EX platform supports up to 1,400 IP users, up to 28 total FXS/FXO analog ports, or up to eight T1/E1 interfaces, providing a flexible migration path for organizations using a mix of IP, SIP, analog, and digital telephone services.
Key Features
- Mitel EX Controller hardware platform
- Exact manufacturer part number 50008229
- 4 GB RAM
- 60 GB solid-state storage
- Intel Celeron N2930 processor
- Single power supply configuration
- Designed for MiVoice Business deployments
- Supports up to 1,400 IP users depending on system configuration and licensing
- 8 modular telephony-card positions
- Supports optional T1/E1 PRI cards
- Supports optional FXS analog station cards
- Supports optional FXO analog trunk cards
- Supports optional DSP resource card
- Up to 28 total FXS / FXO analog ports depending on configuration
- Up to 8 T1/E1 interfaces depending on configuration
- 5 Gigabit Ethernet interfaces
- 2 USB interfaces
- SYNC IN and SYNC OUT interfaces
- Integrated SIP gateway architecture
- KVM-based MiVoice Business virtual-machine deployment
- Standard 19-inch 1U rack-mount form factor
- Supports desktop installation on a suitable flat surface
Applications & Use Cases
- MiVoice Business on-premises deployments
- Medium-size business communications systems
- Enterprise branch offices
- Regional business locations
- IP phone deployments
- SIP trunk environments
- T1 / E1 PRI carrier connectivity
- Analog telephone integration
- Analog PSTN trunk connectivity
- Legacy phone-system migration
- Mixed IP, analog, and digital telephony environments
- Rack-mounted telecom-room installations
- Business communications deployments requiring modular telephony expansion
Technical Specifications
Product & Platform
- Product: Mitel EX Controller 4/60G
- Manufacturer Part Number: 50008229
- Platform: MiVoice Business EX Controller
- Product Type: Enterprise Communications Controller
- Architecture: MiVoice Business Virtual Machine with Integrated Gateway Functions
- Virtualization: Kernel-Based Virtual Machine (KVM)
Processor, Memory & Storage
- Processor: Intel Celeron N2930
- Memory: 4 GB RAM
- Storage: 60 GB SSD
System Capacity
- Maximum EX Platform IP Users: Up to 1,400
- Maximum Analog Capacity: Up to 28 Total FXS / FXO Ports
- Maximum Digital Trunk Capacity: Up to 8 T1/E1 Interfaces
- Actual Capacity: Depends on Installed Cards, Licensing, Software Features and Engineered System Configuration
Telephony Expansion
- Telephony-Card Slots: 8
- DSP Card: Mitel 50008234
- 1-Port PRI Card: Mitel 50008233
- 4-Port FXS Card: Mitel 50008231
- 4-Port FXS-LP Card: Mitel 51309241
- 4-Port FXO Card: Mitel 50008232
- Australia-Specific FXO Card: Mitel 50008353
DSP Requirements
- FXS / FXO Configurations: 1 DSP Card Required per EX Controller Chassis
- DSP Part Number: 50008234
- PRI-Only Configuration: DSP Requirement Is Specifically Associated with FXS / FXO Use
Ethernet & Networking
- Ethernet Interfaces: 5 x 10/100/1000 Base-T RJ-45
- ETH1: Gigabit Ethernet, Default Uplink / WAN Connection
- ETH2-ETH5: Gigabit Ethernet, Default LAN Connections
- Recommended Gigabit Cabling: Category 5e or Category 6
- Ethernet Cabling: Straight-Through
Additional Interfaces
- USB Ports: 2
- USB Applications: Deployment, Software Maintenance and Compatible USB Accessories
- External Music on Hold: Supported with Compatible Linux USB Audio Adapter
- SYNC IN: TDM Synchronization Input
- SYNC OUT: TDM Synchronization Output
Power
- Power Supply Configuration: Single Power Supply Unit
- Redundant Power: No
- Regional Power Cord: 1 Country-Appropriate Power Cord Included per Mitel Package Checklist
Physical
- Height: 4.4 cm / 1.75 in
- Width: 48.3 cm / 19 in
- Depth: 36.5 cm / 14.4 in
- Weight - Single Power Supply: Approximately 5.4 kg / 11.9 lb
- Form Factor: 1U Rack Mount
- Rack Width: Standard 19-Inch Equipment Rack
- Desktop Installation: Supported
Environment
- Operating Temperature: 0°C to +40°C / 32°F to 104°F
- Storage Temperature: -20°C to +70°C / -4°F to 158°F
- Maximum Relative Humidity: 85%, Non-Condensing
Package Includes
- Mitel EX Controller 4/60G
- Single Integrated Power Supply
- 1 x Country-Appropriate AC Power Cord
- 2 x Chassis Rack-Mount Brackets
- 2 x Rack-Mount Bracket Screws
- 7 ft Category 5e Ethernet Patch Cable
- Polyurethane Self-Adhesive Bumper Kit for Desktop Installation
- EX Controller / GX Gateway Safety Instructions
Compatibility & Buying Information
Exact SKU: This page is for Mitel part number 50008229, the EX Controller configuration with 4 GB of RAM, 60 GB of solid-state storage, and a single power supply.
4/60G Configuration: The 4/60G designation identifies the controller's 4 GB RAM and 60 GB SSD configuration. This version uses the Intel Celeron N2930 processor.
Single Power Supply: Unlike the 50008230 8/120G Dual PSU and 50008375 16/120G Dual PS configurations, part 50008229 uses a single power supply and does not provide dual-PSU hardware redundancy.
MiVoice Business Platform: The EX Controller is designed to host MiVoice Business call-processing software within a virtualized architecture. Software installation, licensing, user entitlements, and feature configuration are separate from the base hardware specification.
Up to 1,400 IP Users: Mitel specifies EX Controller platform support for up to 1,400 IP users. Actual deployment capacity depends on MiVoice Business licensing, installed telephony hardware, enabled applications, call traffic, and the engineered system configuration.
Eight Telephony Slots: The chassis provides eight positions for supported PRI, DSP, FXS, and FXO cards. Optional telephony cards are not included with the base controller unless specifically stated as part of an order configuration.
Analog Expansion: Supported FXS and FXO cards each provide four analog circuits. Mitel specifies a maximum EX Controller analog capacity of up to 28 combined FXS / FXO ports.
DSP Requirement: When FXS or FXO analog cards are installed, Mitel requires one 50008234 DSP card per EX Controller chassis. The DSP card occupies one of the eight available telephony-card positions.
PRI Expansion: Mitel 50008233 single-port PRI cards provide T1/E1 connectivity. The platform supports up to eight T1/E1 interfaces when the available slots are configured accordingly.
Five Gigabit Ethernet Ports: ETH1 through ETH5 support 10/100/1000 Base-T networking. ETH1 is used by default as the uplink / WAN connection, while ETH2 through ETH5 are used by default for LAN connectivity.
Rack or Desktop Installation: The controller is a 19-inch 1U chassis and includes rack-mount brackets. It can also be installed on a suitable flat surface using the supplied protective bumper hardware.
Power Cord Included: Mitel's current EX Controller package checklist specifies one country-appropriate power cord for a single-power-supply controller. Dual-power-supply models receive two.
Different from the 16/120G Dual PS: The newer 50008375 model increases memory to 16 GB, storage to 120 GB, uses an AMD Ryzen Embedded V1605B processor, and includes dual power supplies. Customers should select the controller configuration appropriate for the required MiVoice Business deployment.
Best Fit: Mitel 50008229 is well suited to MiVoice Business deployments that need a compact rack-mount controller with modular PRI and analog connectivity but do not require the increased memory, storage, processor platform, or redundant power configuration of the larger EX Controller models.
