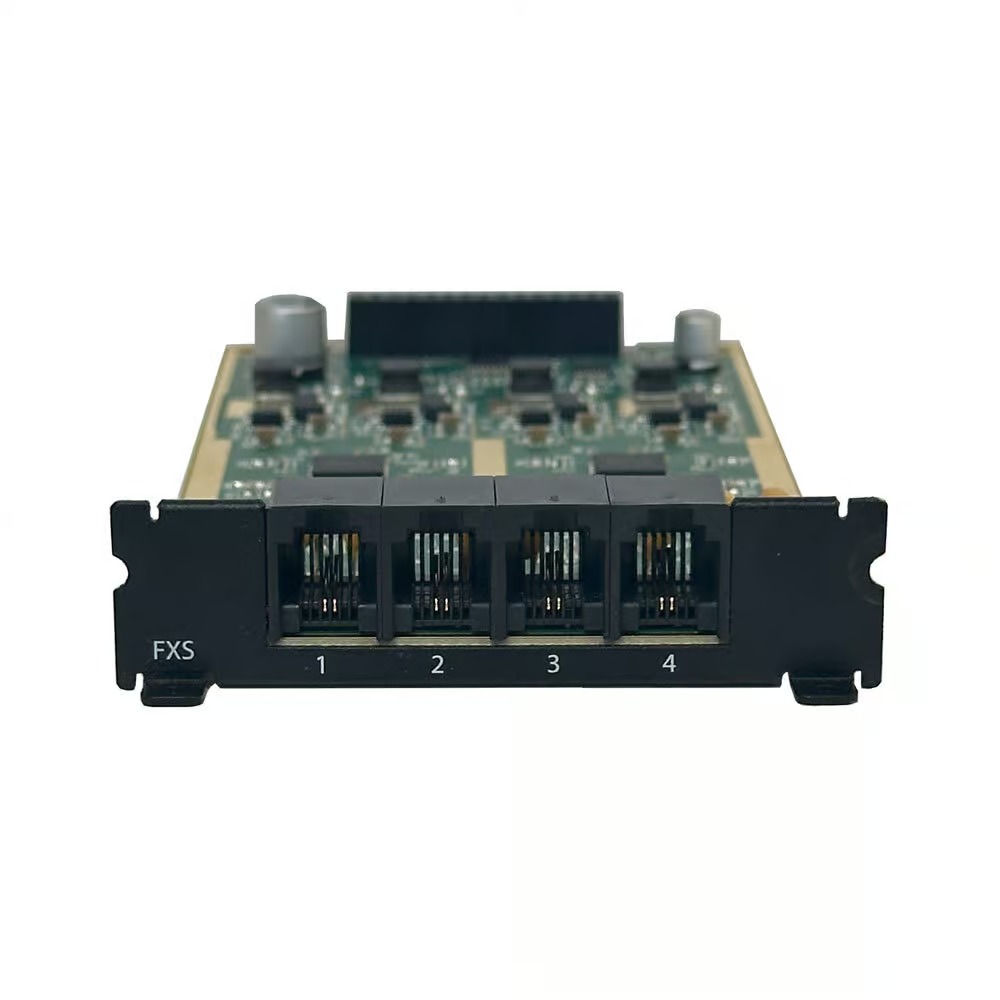

Mitel 4 Port FXS for EX Cont - 50008231
The Mitel 50008231 is a four-port FXS analog station interface card designed specifically for the Mitel EX Controller platform running MiVoice Business. It provides four RJ-11 FXS connections for integrating compatible analog telephones and other supported analog station devices into an EX Controller deployment.
Each 50008231 card occupies one EX Controller telephony-card position and provides four analog FXS station ports with a published loop limit of up to 450 meters. When FXS or FXO cards are installed, Mitel requires one 50008234 DSP card per EX Controller chassis. Multiple FXS cards can be combined with PRI, FXO, and DSP modules to build a mixed IP, digital, and analog MiVoice Business solution.
Key Features
- Official Mitel 4-port FXS card for EX Controller
- Exact manufacturer part number 50008231
- 4 analog FXS station interfaces
- 4 x RJ-11 analog connections
- Designed for compatible analog station devices
- Published loop limit of up to 450 m
- Designed specifically for Mitel EX Controller hardware
- Supported with MiVoice Business on EX Controller
- Occupies 1 EX Controller telephony-card slot
- EX Controller provides 8 telephony-card positions
- Requires 1 Mitel 50008234 DSP card per chassis when FXS or FXO cards are installed
- Supports mixed FXS, FXO, PRI, and DSP card configurations
- Platform supports up to 28 total FXS / FXO ports depending on installed card configuration
- Analog endpoints are programmed as AnalogFXS devices in MiVoice Business
- Expansion card only - controller, DSP card, software, and licenses sold separately
Applications & Use Cases
- MiVoice Business EX Controller deployments
- Analog telephone integration
- Legacy analog endpoint migration
- Hotel and hospitality analog-room-phone deployments
- Healthcare analog endpoint integration
- Campus and institutional phone systems
- Enterprise analog station expansion
- Mixed IP and analog communications environments
- Branch-office deployments
- Replacement FXS card for compatible EX Controller systems
Technical Specifications
Product
- Product: Mitel 4-Port FXS Card for EX Controller
- Manufacturer Part Number: 50008231
- Accessory Type: Analog Station Interface Card
- Platform: Mitel EX Controller
- Communications Platform: MiVoice Business
Analog Station Interfaces
- Interface Type: FXS
- FXS Ports per Card: 4
- Connector Type: RJ-11
- Application: Analog Station Connectivity
- Published Loop Limit: Up to 450 m / Approximately 1,476 ft
- MiVoice Business Device Type: AnalogFXS
EX Controller Expansion
- EX Controller Telephony Slots: 8
- Card Slot Usage: 1 Slot per 4-Port FXS Card
- Maximum Analog Platform Capacity: Up to 28 FXS / FXO Ports
- Maximum All-FXS Configuration: Up to 7 x 4-Port FXS Cards / 28 FXS Ports with Required DSP Card
- Mixed Card Configurations: Supported
DSP Requirement
- Required DSP Card: Mitel 50008234
- DSP Requirement: 1 DSP Card per EX Controller Chassis When FXS or FXO Cards Are Installed
- DSP Slot Usage: 1 Telephony-Card Position
Compatible EX Controller Models
- EX Controller 16/120G Dual PS: Mitel 50008375
- EX Controller 8/120G Dual PSU: Mitel 50008230
- EX Controller 4/60G: Mitel 50008229
Related EX Telephony Cards
- DSP Card: Mitel 50008234
- 1-Port PRI Card: Mitel 50008233
- 4-Port FXO Card: Mitel 50008232
- 4-Port FXS-LP Card: Mitel 51309241
Installation & Cabling
- Installation Location: Internal EX Controller Telephony-Card Slot
- FXS Cabling: RJ-11
- Hot-Swappable: No
- Controller Power: Must Be Turned Off Before Installing, Removing or Swapping Cards
- Earth Ground: Required
- ESD Protection: Proper Electrostatic-Discharge Precautions Required
- Programming: MiVoice Business System Administration Tool
Package Includes
- Mitel 50008231 4-Port FXS Card for EX Controller
Compatibility & Buying Information
Exact Part Number: This page is for Mitel part number 50008231, the standard 4-Port FXS card for the EX Controller platform.
Expansion Card Only: The 50008231 is an internal analog station module. It does not include the EX Controller, DSP card, MiVoice Business software, licenses, or analog endpoint devices.
Four Analog Station Ports: Each card provides four RJ-11 FXS interfaces for compatible analog station equipment.
FXS vs. FXO: FXS ports provide analog station service to endpoint devices. They should not be confused with FXO interfaces, which connect the EX Controller to external analog PSTN or PBX trunk lines.
450-Meter Loop Limit: Mitel identifies part number 50008231 as the standard four-port FXS card with a maximum published loop limit of 450 meters.
FXS-LP Is a Separate Card: Mitel separately lists part number 51309241 as the 4-Port FXS-LP card for the EX Controller. Customers with requirements beyond the published 450-meter loop specification of 50008231 should verify whether the FXS-LP model is the appropriate interface for their engineered installation.
DSP Card Required: Mitel requires one 50008234 DSP card per EX Controller chassis whenever FXS or FXO cards are installed. The DSP card consumes one of the eight available telephony-card positions.
Up to 28 Analog Ports: Mitel specifies EX Controller analog capacity of up to 28 total FXS or FXO ports. With one slot reserved for the required DSP card, an all-FXS configuration can use up to seven 50008231 cards for a total of 28 station ports.
Mixed Configurations: The EX Controller can combine supported FXS, FXO, PRI, and DSP cards. The final slot allocation should be engineered around required analog stations, analog trunks, digital trunks, and DSP resources.
MiVoice Business Programming: Analog FXS endpoints are created through User and Services Configuration and assigned the AnalogFXS device type and appropriate endpoint ID.
Australia Installation Note: Mitel specifies that in Australia, FXS wiring must not be bundled with network cabling and FXS / FXS-LP interfaces are for on-premises installation only.
Not an SMB Controller Card: The 50008231 is intended for the EX Controller platform and should not be confused with the separate FXS expansion hardware used by the Mitel SMB Controller.
Installation Safety: The EX Controller must be properly grounded and powered down before adding, removing, or replacing telephony cards. Proper ESD precautions should be used during installation and service.
Best Fit: Mitel 50008231 is ideal for MiVoice Business EX Controller deployments that need to integrate conventional analog station devices while maintaining a scalable mix of IP, analog, and digital telephony resources.
