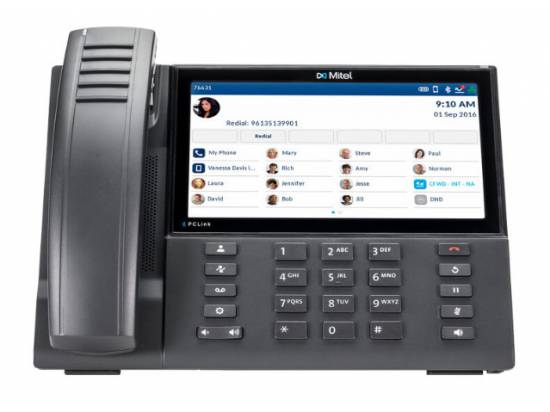

Mitel 6940W IP PHONE - 50008387
The Mitel 6940W 50008387 is a premium MiVoice Business IP phone designed for executives, managers, contact-center personnel, and other power users who need advanced communications capabilities at the desktop. It combines a large 7-inch capacitive color touchscreen, built-in dual-band Wi-Fi, Bluetooth 5.2, a cordless Bluetooth handset, dual Gigabit Ethernet, PCLink, MobileLink, and HD full-duplex audio.
Built for sophisticated business communications, the 6940W provides extensive programmable touchscreen controls, professional USB and Bluetooth headset support, flexible wired or wireless network connectivity, and compatibility with optional M695 programmable key modules. The 50008387 version is the standard MiVoice / MiNet model and should not be confused with the separate 50009437 Open SIP / 3PCC version.
Key Features
- Premium Mitel 6940W business IP phone
- Exact manufacturer part number 50008387
- Standard MiVoice / MiNet version
- Designed for compatible MiVoice Business deployments
- 7-inch WVGA color capacitive touchscreen
- 800 × 480 pixel display resolution
- 12 touchscreen programmable top keys supporting up to 48 functions
- 6 state-sensitive touchscreen softkeys supporting up to 30 functions
- Built-in dual-band Wi-Fi
- IEEE 802.11a/b/d/g/n wireless networking
- Bluetooth 5.2
- Cordless Bluetooth handset
- Mitel PCLink for computer audio integration
- MobileLink smartphone integration
- Dual 10/100/1000 Mbps Gigabit Ethernet ports
- IEEE 802.3az Energy Efficient Ethernet
- USB 2.0 host port with up to 500 mA
- Bluetooth headset support
- USB headset support
- Enhanced wideband full-duplex speakerphone
- Power over Ethernet
- PoE Class 3
- Optional local 48V power support
- Supports up to 3 optional Mitel M695 programmable key modules
- 30° / 60° reversible desktop stand
- Optional 6900 Series wall mounting
Applications & Use Cases
- Executives and senior management
- Executive assistants
- Reception and administrative workstations
- Contact-center employees
- Supervisors and team leaders
- High-call-volume business users
- MiVoice Business deployments
- Multi-line business communications
- Work-from-home and hybrid-office deployments
- Locations requiring Wi-Fi instead of wired Ethernet
- Users integrating mobile phones through MobileLink
- PC collaboration users utilizing PCLink
- Bluetooth and USB headset users
- Users requiring M695 programmable-key expansion
Technical Specifications
Product & Platform
- Product: Mitel 6940W IP Phone
- Manufacturer Part Number: 50008387
- Phone Family: Mitel 6900W Series
- Primary Platform: MiVoice Business
- Standard Firmware Branch: MiNet
- 3PCC / Open SIP Version: Separate Part Number 50009437
Display & Programmable Controls
- Display: 7-Inch WVGA Color TFT
- Resolution: 800 × 480 Pixels
- Touchscreen: Capacitive
- Brightness Control: Supported
- Top Programmable Keys: 12 Touchscreen Softkeys
- Top-Key Functions: Up to 48
- Context-Sensitive Keys: 6 Touchscreen Softkeys
- Context-Sensitive Functions: Up to 30
- Self-Labeling: Supported
Audio
- Speakerphone: Enhanced Wideband Full-Duplex
- Hands-Free Calling: Supported
- Handset: Cordless Bluetooth Handset
- Handset Audio: Wideband Capable
- Hearing Aid Compatibility: Supported
- Advanced Audio Processing: Supported
Cordless Bluetooth Handset
- Handset Type: Cordless Bluetooth
- Approximate Wireless Range: Up to 10 m / 30 ft
- Talk Time: At Least 6 Hours
- Standby Time: More Than 40 Hours
- Recharge Time: 3 Hours or Less
- Handset Controls: Hookswitch, Mute and Volume
- Charging: Through Phone Handset Cradle
Wi-Fi
- Built-In Wi-Fi: Yes
- Wireless Standards: IEEE 802.11a/b/d/g/n
- Wireless Operation: Dual Band
- 2.4 GHz: Supported
- 5 GHz: Supported
- External WLAN Adapter Required: No for Normal 6940W Wi-Fi Operation
Bluetooth & Mobile Integration
- Bluetooth: Embedded Bluetooth 5.2
- Bluetooth Headsets: Supported
- Mitel S720 Bluetooth Speakerphone: Supported
- MobileLink: Supported
- Mobile Contact Synchronization: Supported
- Mobile Call Audio: Can Be Moved Between Compatible Mobile Phone and Desk Phone
PCLink & USB
- PCLink: Supported
- Computer Platforms: Compatible Windows and Mac Workflows
- USB: 1 x USB 2.0 Host Port
- Maximum USB Output: 500 mA
- USB Headsets: Supported
- Supported Function: Phone Can Operate as an Audio Device for Compatible PC Collaboration Applications
Ethernet & Networking
- Ethernet Ports: 2
- Ethernet Speed: 10/100/1000 Mbps
- Integrated Ethernet Switch: Yes
- PC Pass-Through: Supported
- Energy Efficient Ethernet: IEEE 802.3az
- PC Port PoE Output: Not Supported
- Recommended Cabling: Cat 5/5e Minimum; Cat 6 Recommended for Optimum Gigabit Performance
Power
- Power over Ethernet: IEEE 802.3af / 802.3at
- Normal PoE Class: Class 3
- Local Power: Supported with Compatible Mitel 48V AC Adapter
- AC Adapter: Sold Separately
M695 Programmable Key Module
- M695 Support: Yes
- Maximum Modules: Up to 3
- Physical Programmable Keys per Module: 28
- Maximum Additional Physical Keys: 84 with 3 Modules
- M695 Display: 4.3-Inch 480 × 272 Color LCD
- 6940W Power Requirement: Compatible 48V Local Power Required When Using the Sidecar Accessory Port
Desk & Wall Installation
- Desk Stand: Reversible Stand Included
- Low Viewing Angle: 30°
- High Viewing Angle: 60°
- Wall Mounting: Supported
- Optional Wall Mount: Mitel 6900 Series Wall Mount Kit
- Wall Installation: Direct Wall or Compatible Telco Wall Plate
- Application: Indoor Use
Compatibility & Buying Information
Exact SKU: This page is for Mitel part number 50008387, the standard 6940W IP Phone intended primarily for compatible MiVoice Business / MiNet deployments.
Not the 3PCC Version: Mitel 50009437 is the separate 6940W 3PCC / Open SIP model. Buyers specifically deploying a third-party or hosted Open SIP platform should verify whether 50009437 is the required version rather than 50008387.
MiNet Firmware: Mitel documents the 6900 / 6900W standard phone family with MiNet firmware pre-installed. Feature availability still depends on the connected Mitel communications platform, software release, licensing, and administrator configuration.
Built-In Wi-Fi: The 6940W includes its own dual-band wireless interface and does not require the external MTL-300AN WLAN Adapter for normal Wi-Fi operation.
Bluetooth 5.2: Current 6940W documentation specifies embedded Bluetooth 5.2. Older 6940 documentation and older NTS copy may reference Bluetooth 4.x because the original non-W 6940 uses an earlier Bluetooth implementation.
Cordless Handset: A cordless Bluetooth handset is a standard feature of the 6940W, providing short-range mobility around the office while maintaining access to hookswitch, volume, and mute controls.
MobileLink: Compatible mobile phones can pair with the 6940W for mobile-contact synchronization and supported mobile call handling directly from the desk phone.
PCLink: PCLink allows the 6940W to operate as an audio device for supported PC or Mac collaboration applications, reducing the need for separate desktop conferencing audio equipment.
Gigabit Ethernet: Two 10/100/1000 Mbps Ethernet interfaces provide high-speed network connectivity and PC pass-through. The secondary PC port does not supply PoE power to an attached device.
M695 Expansion: Up to three M695 programmable key modules can be connected for as many as eighty-four additional physical programmable keys.
Important M695 Power Requirement: Unlike the original 6940, the 6940W does not automatically change its PoE class when an accessory is installed in the sidecar port. Mitel specifies use of a compatible 48V power supply when a sidecar accessory is attached.
PoE or Local Power: The phone can normally be powered through an IEEE 802.3af / 802.3at network connection. A compatible Mitel 48V AC adapter is sold separately for installations without PoE or configurations requiring local accessory power.
Headset Support: The 6940W supports compatible Bluetooth and USB headsets in addition to its included cordless Bluetooth handset.
Wall Mounting: The phone can be wall mounted using the optional Mitel 6900 Series Wall Mount Kit, either directly to a wall or over a compatible telco wall plate.
Best Fit: Mitel 6940W 50008387 is ideal for executives, managers, assistants, supervisors, contact-center personnel, and other MiVoice Business users who need a large touchscreen, built-in Wi-Fi, cordless handset, Bluetooth, PC and mobile integration, Gigabit networking, and extensive programmable-key expansion.
