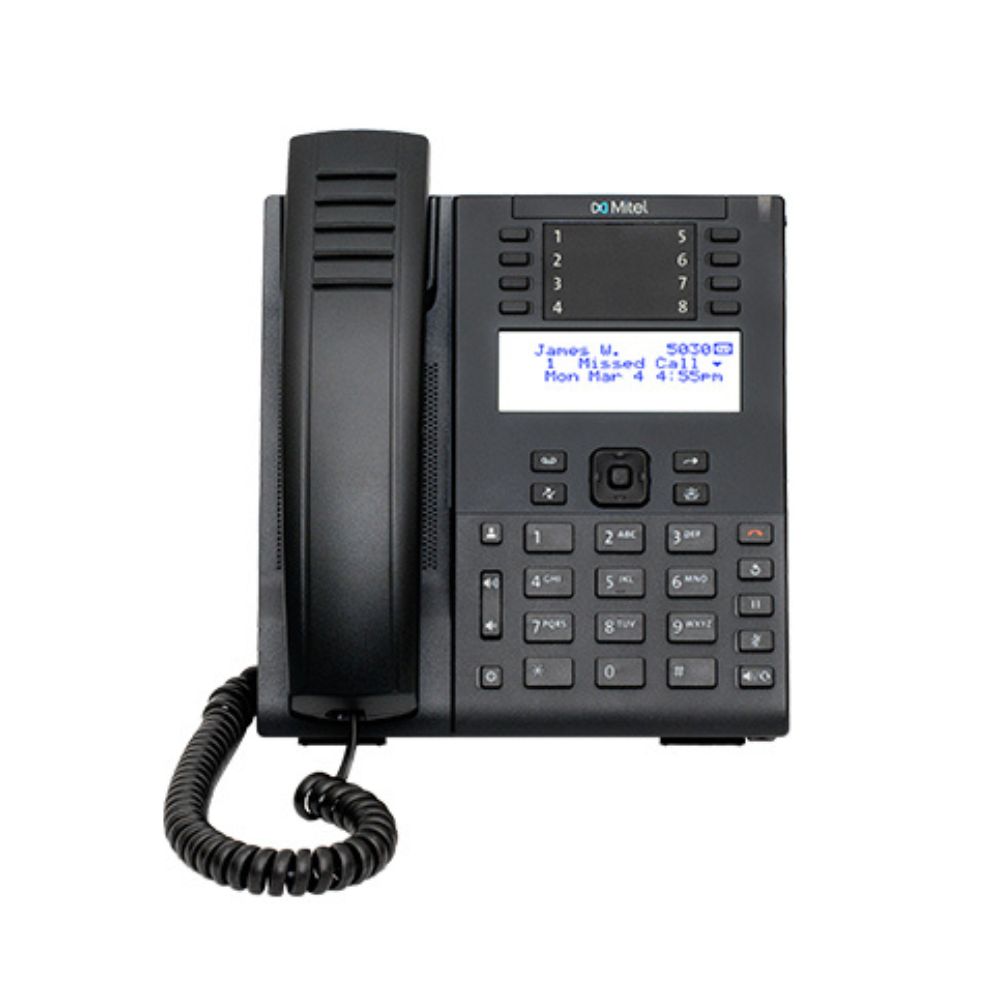

Mitel 6910 - 50009433 3PCC Phone
The Mitel 6910 3PCC 50009433 is an enterprise-grade Open SIP desk phone designed for third-party and standards-based SIP communications platforms. It combines a 3.4-inch backlit graphical display, eight programmable personal keys, dual Gigabit Ethernet, HD wideband audio, and support for up to 24 call lines in a straightforward professional desktop design.
Designed for business offices, shared workspaces, customer-service teams, contact-center users, and managed VoIP deployments, the 6910 provides flexible programmable calling functions, full-duplex hands-free audio, wired headset support, Gigabit PC pass-through, and Power over Ethernet. Its combination of additional line capacity and simple physical controls makes it well suited to users who need more functionality than an entry-level SIP phone without requiring a large color touchscreen.
Key Features
- Mitel 6910 enterprise Open SIP / 3PCC IP phone
- Exact manufacturer part number 50009433
- Designed for third-party and standards-based SIP call-control environments
- 3.4-inch graphical LCD display
- 128 × 48 pixel display resolution
- Soft white display backlighting
- 8 programmable personal keys with LED indicators
- Supports up to 24 call lines
- Press-and-hold speed-dial key configuration
- 4-way navigation control with Select / OK
- Dedicated business calling controls
- Mitel Hi-Q wideband audio
- Wideband handset
- Wideband full-duplex speakerphone
- Hearing Aid Compatible handset
- Analog wired headset support
- Native DHSG / EHS headset support
- Dual 10/100/1000 Gigabit Ethernet ports
- Gigabit PC network pass-through
- IEEE 802.3af / 802.3at Power over Ethernet
- PoE Class 2
- Optional local AC power support
- 30° / 60° reversible desktop stand
- Optional Mitel 6900 Series wall-mount support
Applications & Use Cases
- Third-party SIP phone systems
- Open SIP communications platforms
- Small and midsize business offices
- Enterprise employee workstations
- Administrative and front-office users
- Customer-service teams
- Contact-center agents and supervisors
- Hot-desking and shared workspaces
- Retail and commercial environments
- Multi-site business communications
- Managed VoIP deployments
- MSP and systems-integrator installations
- Users requiring multiple line appearances
- Workstations requiring Gigabit PC pass-through
Technical Specifications
Product & Call Control
- Product: Mitel 6910 3PCC SIP Phone
- Manufacturer Part Number: 50009433
- Phone Family: Mitel 6900 Series
- Protocol: SIP
- Deployment Type: Open SIP / Third-Party Call Control
- Feature Availability: Dependent on SIP Platform, Firmware and Provisioning
Display & Controls
- Display: 3.4-Inch Graphical LCD
- Resolution: 128 × 48 Pixels
- Backlight: Soft White
- Programmable Personal Keys: 8
- Key Indicators: LED
- Maximum Call Lines: Up to 24
- Navigation: 4-Way Navigation with Select / OK
- Speed Dial: Press-and-Hold Configuration Supported
Audio
- Audio Technology: Mitel Hi-Q Wideband Audio
- Handset: Wideband
- Hearing Aid Compatibility: Supported
- Speakerphone: Wideband Full-Duplex
- Hands-Free Calling: Supported
SIP Audio Codecs
- G.711 µ-law / A-law: Supported
- G.729: Supported
- G.722: Supported
- G.726: Supported
- iLBC: Supported on Applicable SIP Platforms
- AMR / AMR-WB: Supported Where Provided by Compatible SIP Platform and Firmware
Headset Support
- Analog Headset: Supported
- Headset Connector: RJ9 / RJ22 4-Pin Modular Interface
- DHSG / EHS: Native Support
- DHSG / EHS Connector: Supported Through Convertible Headset Port
- Bluetooth Headset: Not Built In
- USB Headset: No USB Host Port
Ethernet & Networking
- Ethernet Ports: 2
- Ethernet Speed: 10/100/1000 Mbps Gigabit Ethernet
- LAN Port: Gigabit Ethernet
- PC Pass-Through: Gigabit Ethernet
- PC Port PoE Output: Not Supported
- Recommended Cabling: Category 5 / 5e or Better
- VLAN / QoS: IEEE 802.1p/Q Support
- Network Authentication: IEEE 802.1X Support
Power
- Power over Ethernet: Supported
- PoE Standards: IEEE 802.3af / 802.3at Compatible Network Power
- PoE Class: Class 2
- Local Power: Supported with Compatible Mitel Power Adapter
- AC Power Adapter: Sold Separately
Desk & Wall Installation
- Desk Stand: Reversible Stand Included
- Low Viewing Angle: 30°
- High Viewing Angle: 60°
- Wall Mounting: Supported
- Optional Wall Mount: Mitel 6900 Series Wall Mount Kit 50008299
- Wall Installation: Direct Wall or Compatible Telco Wall Plate
Physical & Environment
- Approximate Dimensions: 8.9 × 5.9 × 7.5 in / 22.5 × 15 × 19 cm
- Approximate Weight: 2.2 lb / 0.98 kg
- Operating Temperature: Approximately +4°C to +49°C / +39°F to +120°F
- Installation: Indoor Use
Compatibility & Buying Information
Exact SKU: This page is for Mitel part number 50009433, the 6910 SIP / 3PCC phone intended for compatible Open SIP and third-party call-control environments.
3PCC / Open SIP Version: This SKU should be selected when a standards-based SIP endpoint is required for a compatible hosted, cloud, UCaaS, or on-premises SIP communications platform. Available calling features depend on the connected provider and provisioning configuration.
Eight Programmable Keys: The 6910 provides eight physical programmable personal keys with LED indicators, giving users direct access to commonly used line appearances, speed dials, busy-lamp fields, and other provider-supported features.
Up to 24 Lines: Mitel's SIP documentation states that the 6910 can support up to 24 call lines. Actual configured line capacity and behavior depend on the connected SIP system or service provider.
Gigabit Ethernet: The 6910 provides two fully switched 10/100/1000 Mbps Ethernet interfaces. A computer or compatible network device can share the wired network connection through the phone's PC pass-through port.
No PoE Output from PC Port: The secondary Ethernet port passes network data but does not provide inline PoE power to the connected computer or network device.
PoE or Local Power: The phone can be powered through a compatible PoE network connection. If inline power is unavailable, a compatible Mitel AC power adapter can be used and is sold separately.
Wired Headsets: The 6910 supports standard 4-pin analog headsets as well as compatible DHSG / EHS headsets through its convertible headset interface.
No Built-In Wi-Fi or Bluetooth: Unlike the higher-end 6920W, 6930W, and 6940W models, the 6910 does not include integrated Wi-Fi or Bluetooth. Wireless requirements should be planned separately.
No USB Host Port: The 6910 is designed around wired handset, speakerphone, and analog / DHSG-EHS headset use rather than USB headset and accessory connectivity.
Desk Installation: The included reversible stand provides 30-degree and 60-degree viewing positions for desktop use.
Wall Mounting: Wall installation is supported using the optional Mitel 6900 Series Wall Mount Kit, including part number 50008299.
SIP Documentation: Part 50009433 should use Mitel's 6910 SIP User Guide, Installation Guide, and Quick Reference Guide rather than the separate MiNet documentation branch.
Best Fit: Mitel 6910 50009433 is well suited to offices, customer-service teams, shared workspaces, contact-center users, and managed Open SIP deployments that need more programmable keys and line capacity than an entry-level phone while retaining straightforward physical controls, Gigabit networking, and HD business audio.
