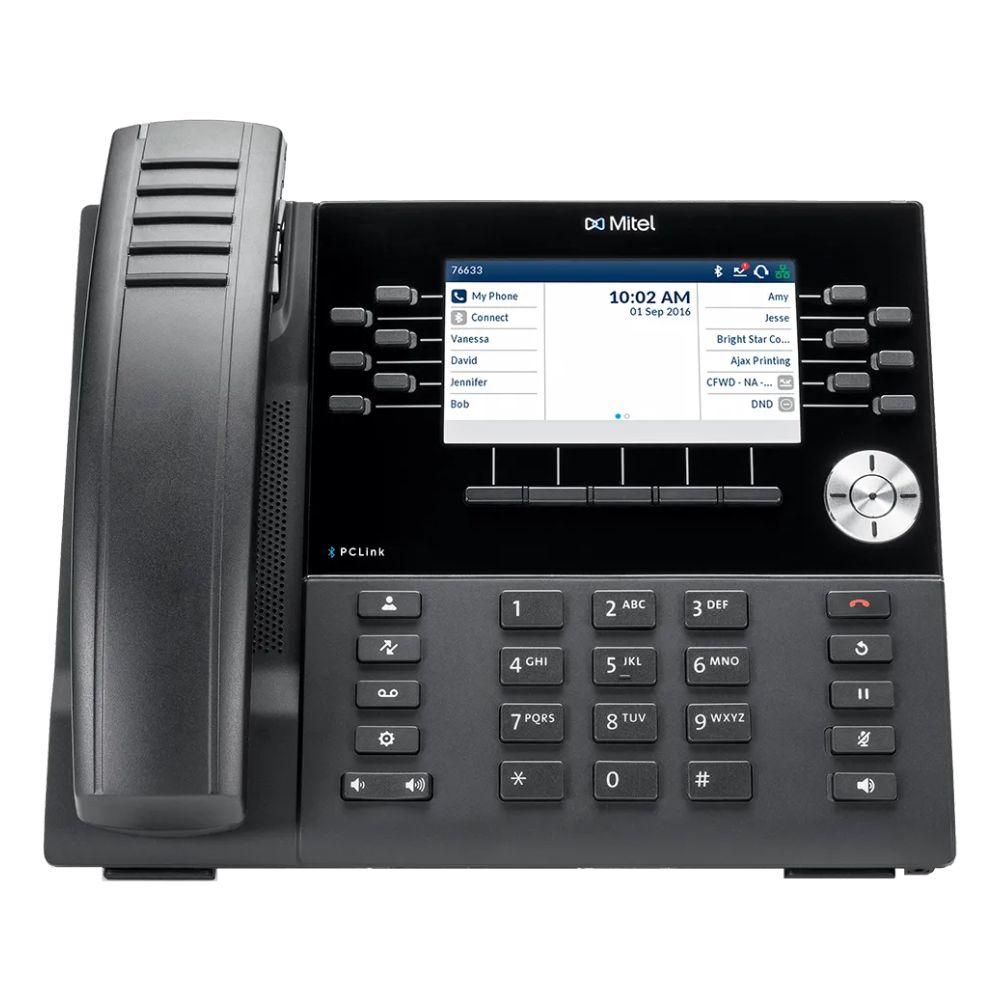

Mitel 6930W - 50009436 3PCC Phone
The Mitel 6930W 3PCC 50009436 is an advanced Open SIP IP phone designed for third-party and standards-based SIP communications platforms. Built for supervisors, managers, contact-center personnel, remote workers, and other power users, it combines a 4.3-inch color display, extensive programmable keys, integrated dual-band Wi-Fi, Bluetooth 5.2, dual Gigabit Ethernet, and premium HD audio in a flexible professional desktop phone.
The 6930W supports Mitel PCLink for computer collaboration audio and MobileLink for smartphone integration, along with Bluetooth, USB, analog, and DHSG/EHS headset options. Built-in Wi-Fi provides additional deployment flexibility for work-from-home and office environments, while optional M695 expansion modules can add additional programmable keys for high-call-volume positions.
Key Features
- Mitel 6930W Open SIP / 3PCC IP phone
- Exact manufacturer part number 50009436
- Designed for third-party and standards-based SIP call-control environments
- 4.3-inch WQVGA color display
- 480 × 272 pixel display resolution
- 12 programmable top softkeys supporting up to 44 functions
- 5 context-sensitive bottom softkeys supporting up to 24 functions
- Built-in dual-band Wi-Fi
- IEEE 802.11a/b/g/n wireless networking
- Bluetooth 5.2
- Mitel PCLink support
- Mitel MobileLink smartphone integration
- Mitel Hi-Q HD wideband audio
- Noise-canceling wideband handset
- Enhanced wideband full-duplex speakerphone
- Analog 4-pin headset support
- DHSG / EHS headset support
- Bluetooth headset support
- USB headset support
- USB 2.0 host port with up to 500mA output
- 2 x 10/100/1000 Gigabit Ethernet ports
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af / 802.3at Power over Ethernet
- PoE Class 3 operating profile
- Optional local 48V power support
- Optional Mitel M695 Programmable Key Module support
- Supports up to 3 M695 expansion modules
- 30° / 60° reversible desktop stand
- Optional 6900 Series wall-mount support
Applications & Use Cases
- Third-party SIP phone systems
- Open SIP communications platforms
- RingCentral deployments
- Supervisor and management offices
- Contact-center agent and supervisor positions
- Power users requiring extensive programmable functions
- Remote and work-from-home users
- Wireless office installations using built-in Wi-Fi
- Hybrid wired and wireless network environments
- PC-based collaboration audio through PCLink
- Smartphone integration through MobileLink
- Reception and high-call-volume positions using optional M695 modules
Technical Specifications
Product & Call Control
- Product: Mitel 6930W 3PCC SIP Phone
- Manufacturer Part Number: 50009436
- Phone Family: Mitel 6900w Series
- Protocol: SIP
- Deployment Type: Open SIP / Third-Party Call Control
- Feature Availability: Dependent on SIP Platform, Firmware and Provisioning
Display & User Interface
- Display: 4.3-Inch WQVGA Color TFT LCD
- Resolution: 480 × 272 Pixels
- Brightness: Adjustable
- Programmable Top Softkeys: 12
- Programmable Function Capacity: Up to 44 Functions
- Context-Sensitive Bottom Softkeys: 5
- Context-Sensitive Function Capacity: Up to 24 Functions
- Navigation: 4-Way Navigation / Select Control
- Dedicated Functions: Conference, Transfer, Directory, Call History, Voicemail, Hold, Redial, Goodbye, Settings, Volume, Mute and Speaker / Headset
Audio & Handset
- Audio: Mitel Hi-Q HD Wideband Audio
- Speakerphone: Enhanced Wideband Full-Duplex
- Standard Handset: Noise-Canceling Wideband Corded Handset
- Hearing Aid Compatibility: Supported
- Optional Cordless Handset: Compatible Mitel Bluetooth Cordless Handset Supported
SIP Audio Codecs
- G.711: Supported
- G.729: Supported
- G.722: Supported
- G.726: Supported
- iLBC: Supported
- AMR: Supported
- AMR-WB / G.722.2: Supported
- Codec Availability: Can Vary by SIP Call-Control Platform
Wi-Fi
- Wireless LAN: Built-In
- Wi-Fi: IEEE 802.11a/b/g/n
- Frequency Bands: 2.4 GHz and 5 GHz
- WPA2 Enterprise: Supported with Compatible Network Configuration
- WPA2 / WPA3 Personal: Supported by Current SIP Firmware
- Hidden Networks: Supported
Bluetooth & Mobile Integration
- Bluetooth: 5.2
- MobileLink: Supported
- Mobile Pairing: Bluetooth
- Mobile Call Audio: Supported Through Desk Phone
- Mobile Contact Synchronization: Supported
- Mobile Call-Log Synchronization: Supported
- Bluetooth Headsets: Supported
PCLink
- PCLink: Supported
- Connection: Bluetooth
- Function: Allows the Phone to Operate as the Audio Device for Compatible PC Collaboration Applications
- Computer Platforms: Compatible Windows and macOS Environments
Headset Support
- Analog Headset: 4-Pin Modular Connection
- DHSG / EHS Headset: Supported
- USB Headset: Supported
- Bluetooth Headset: Supported
- Mitel Integrated DECT Headset: Supported
Ethernet & Networking
- Ethernet Ports: 2
- Ethernet Speed: 10/100/1000 Mbps Gigabit Ethernet
- LAN Port: Gigabit Ethernet
- PC Pass-Through Port: Gigabit Ethernet
- Energy Efficient Ethernet: IEEE 802.3az
- VLAN / Priority: IEEE 802.1p/Q Support
- Network Authentication: IEEE 802.1X Support
Power
- Power over Ethernet: IEEE 802.3af / 802.3at
- PoE Operating Profile: Class 3
- Local Power: Compatible Mitel 48V AC Adapter Supported
- AC Power Adapter: Sold Separately
- Sidecar Accessory Note: Compatible 48V Local Power Is Required by Mitel When an Accessory Is Installed in the 6930W Sidecar Port
USB
- USB Port: 1 x USB 2.0 Host Type-A
- Maximum USB Output: 500mA
- USB Headsets: Supported
- Mobile / Accessory Charging: Supported for Compatible Devices
Expansion & Accessories
- M695 Programmable Key Module: Supported
- Maximum M695 Modules: 3
- M695 Keys: 28 Keys per Page / 3 Pages
- M695 Programmable Functions: Up to 84 per Module
- Mitel Integrated DECT Headset: Supported
- Mitel Bluetooth Cordless Handset: Supported as Optional Accessory
- 6900 Series Wall Mount Kit: Supported, Sold Separately
Physical & Installation
- Dimensions: Approximately 9.3 × 5.9 × 7.5 in / 23.5 × 15 × 19 cm
- Weight: Approximately 2.4 lb / 1.08 kg
- Desk Stand: Reversible Stand Included
- Viewing Angles: 30° or 60°
- Wall Mount: Optional Mitel 6900 Series Wall Mount Kit
- Operating Environment: Indoor Use
Package Includes
- Mitel 6930W SIP / 3PCC IP Phone
- Noise-Canceling Wideband Handset
- Handset Cord
- Reversible 30° / 60° Desktop Stand
Compatibility & Buying Information
Exact SKU: This page is for Mitel part number 50009436, the 6930W SIP / 3PCC phone intended for Open SIP and compatible third-party call-control deployments.
3PCC / Open SIP Version: The 50009436 should be selected when a standards-based SIP endpoint is required for compatible third-party hosted, cloud, or on-premises communications platforms. Feature availability can vary by provider and provisioning configuration.
Different from 50008386: Mitel 50008386 is the separate standard 6930W IP Phone SKU. Customers specifically requiring the 3PCC / Open SIP version should order 50009436.
RingCentral Compatibility: RingCentral currently lists the Mitel 6930 / 6930W among its supported desk-phone models, and the supplied RingCentral datasheet is appropriate when this phone is being deployed with RingCentral service.
Built-In Wi-Fi: Unlike the original 6930, the 6930W includes integrated dual-band Wi-Fi and does not require the optional Mitel WLAN adapter for wireless network connectivity.
Bluetooth 5.2: The 6930W adds Bluetooth 5.2 for supported wireless headsets, MobileLink, PCLink, and other compatible Bluetooth accessories.
Standard Handset: The 6930W includes a conventional corded noise-canceling wideband handset. A Mitel cordless Bluetooth handset can be added separately when cordless desk mobility is required.
MobileLink: A compatible paired smartphone can synchronize contacts and call history, route mobile calls through the 6930W, and transfer supported call audio between the smartphone and desk phone.
PCLink: PCLink allows the 6930W to act as a high-quality audio device for compatible PC and Mac collaboration applications, reducing the need for separate desk-phone and computer audio accessories.
PoE or Local Power: The phone supports IEEE 802.3af / 802.3at Power over Ethernet. If PoE is unavailable, a compatible Mitel 48V AC adapter can be used and is sold separately.
Sidecar Accessory Power: Mitel's installation documentation specifies compatible 48V local power when an accessory is installed in the 6930W sidecar accessory port. Power requirements should therefore be checked when adding M695 or other supported sidecar accessories.
M695 Expansion: Up to three optional M695 Programmable Key Modules can be supported. Each M695 provides three pages of 28 keys for up to 84 programmable functions.
Wall Mounting: The included reversible desk stand provides 30-degree and 60-degree viewing positions. Wall installation requires the optional Mitel 6900 Series Wall Mount Kit.
SIP Documentation: This SKU should use Mitel's 6930 / 6930W SIP documentation rather than the separate MiNet IP Phone documentation branch.
Best Fit: Mitel 6930W 50009436 is well suited to supervisors, managers, contact-center users, remote workers, and other Open SIP users who need integrated Wi-Fi and Bluetooth, extensive programmable functions, premium audio, flexible headset support, and PC/mobile communications integration.
