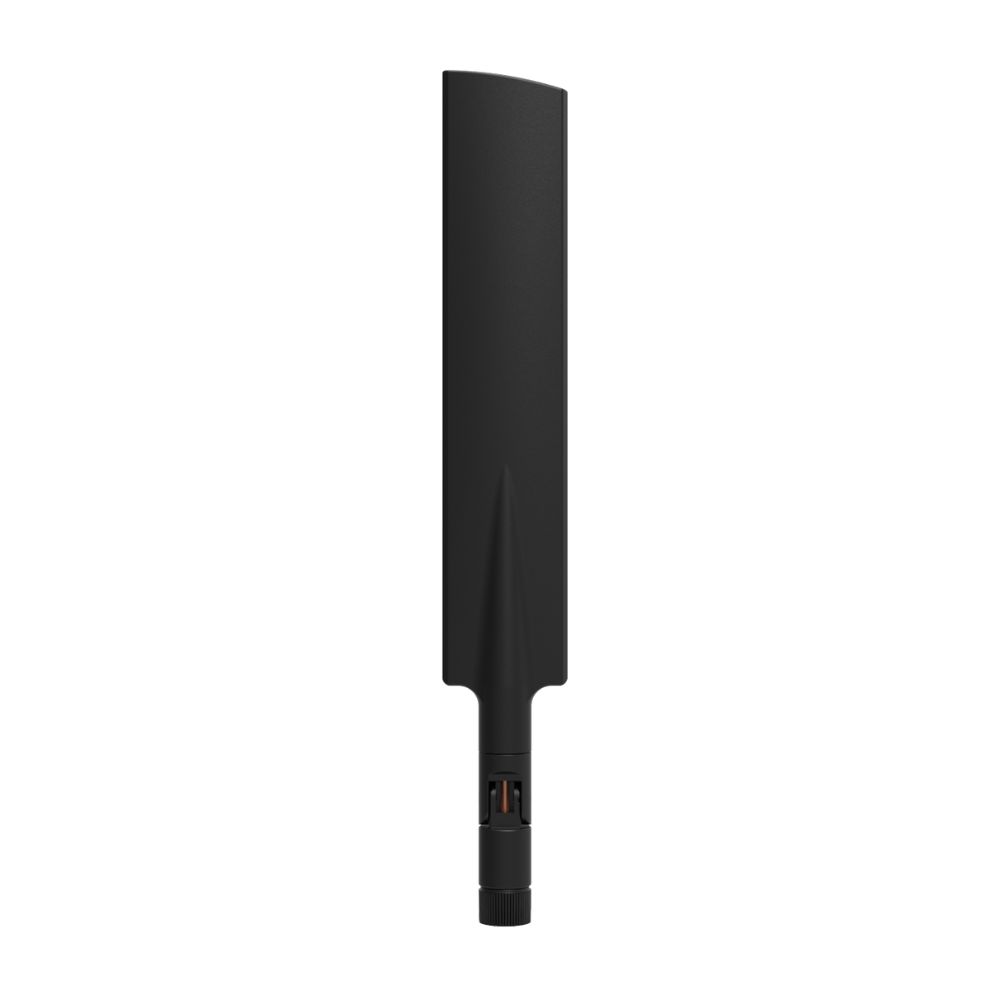

POYNTING OMNI-85 Wideband Router/Equipment Mount 5G/LTE Antenna

The POYNTING OMNI-85 is a compact wideband omni-directional 5G/LTE antenna engineered to enhance cellular connectivity for routers, gateways, modems, and industrial networking equipment. Covering an ultra-wide frequency range from 617–3800 MHz, the OMNI-85 supports global 5G, 4G LTE, LTE-A, CBRS, 3G, and legacy 2G networks with up to 3.5 dBi of gain. Its wideband design allows a single antenna to operate across multiple carriers and frequency bands, making it an ideal solution for enterprise networking, industrial IoT, mobile connectivity, and failover WAN deployments.

Designed as a direct equipment-mount antenna, the OMNI-85 features an SMA male connector that attaches directly to compatible routers and wireless devices without requiring additional coaxial cables. The ground plane independent design and adjustable knuckle base allow installers to position the antenna for optimal signal reception while maintaining a compact footprint. Built with a durable halogen-free ABS enclosure, IP55 protection, and a wide operating temperature range, the OMNI-85 is well suited for commercial, industrial, transportation, IoT, and remote networking applications where reliable cellular performance is essential.

POYNTING OMNI-85 Features:

• Wideband omni-directional 5G/LTE antenna
• Supports 617–3800 MHz cellular frequency coverage
• Compatible with 5G, 4G LTE, LTE-A, CBRS, 3G, and 2G networks
• Peak antenna gain up to 3.5 dBi
• Future-ready wideband design supports multiple carriers worldwide
• Ground plane independent antenna design
• Direct SMA male connector for router and equipment mounting
• Adjustable knuckle base allows multiple installation angles
• Compact, lightweight, and portable design
• Improves cellular signal reception and network reliability
• Helps increase wireless throughput and connection stability
• Suitable for indoor commercial and industrial deployments
• Durable halogen-free ABS enclosure
• IP55-rated environmental protection
• Operating temperature range from -40°C to +80°C
• Complies with CE and RoHS standards

Ideal Applications:

• 5G and 4G LTE routers and gateways
• Industrial IoT (IIoT) deployments
• Machine-to-Machine (M2M) communications
• Enterprise wireless WAN connectivity
• Cellular failover networking
• Commercial office connectivity
• Remote and rural broadband deployments
• Transportation and mobile networking
• Retail and branch office connectivity
• Edge computing devices and industrial gateways
• Improving weak cellular signal reception
• Multi-carrier wireless deployments

Technical Specifications:

• Frequency Range: 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3400–3800 MHz
• Antenna Type: Omni-directional Cellular Antenna
• Configuration: SISO
• Peak Gain: Up to 3.5 dBi
• Gain: 0 dBi @ 617–960 MHz, 1.2 dBi @ 1427–1517 MHz, 3.5 dBi @ 1710–2700 MHz, 2.5 dBi @ 3400–3800 MHz
• Polarization: Linear Vertical
• VSWR: <2.5:1
• Input Impedance: 50 Ohm
• Maximum Power Handling: 10 W
• Connector Type: SMA Male
• Cable: None (Direct Equipment Mount)
• Dimensions: 209 × 31 × Ø13 mm
• Weight: 0.042 kg
• Housing Material: Halogen-Free ABS
• Mounting Type: Screw-on Direct Router Mount
• Ingress Protection: IP55
• Impact Rating: IK05
• Operating Temperature: -40°C to +80°C
• Operating Humidity: Up to 98%
• Indoor Rated
• Compliance: CE and RoHS
