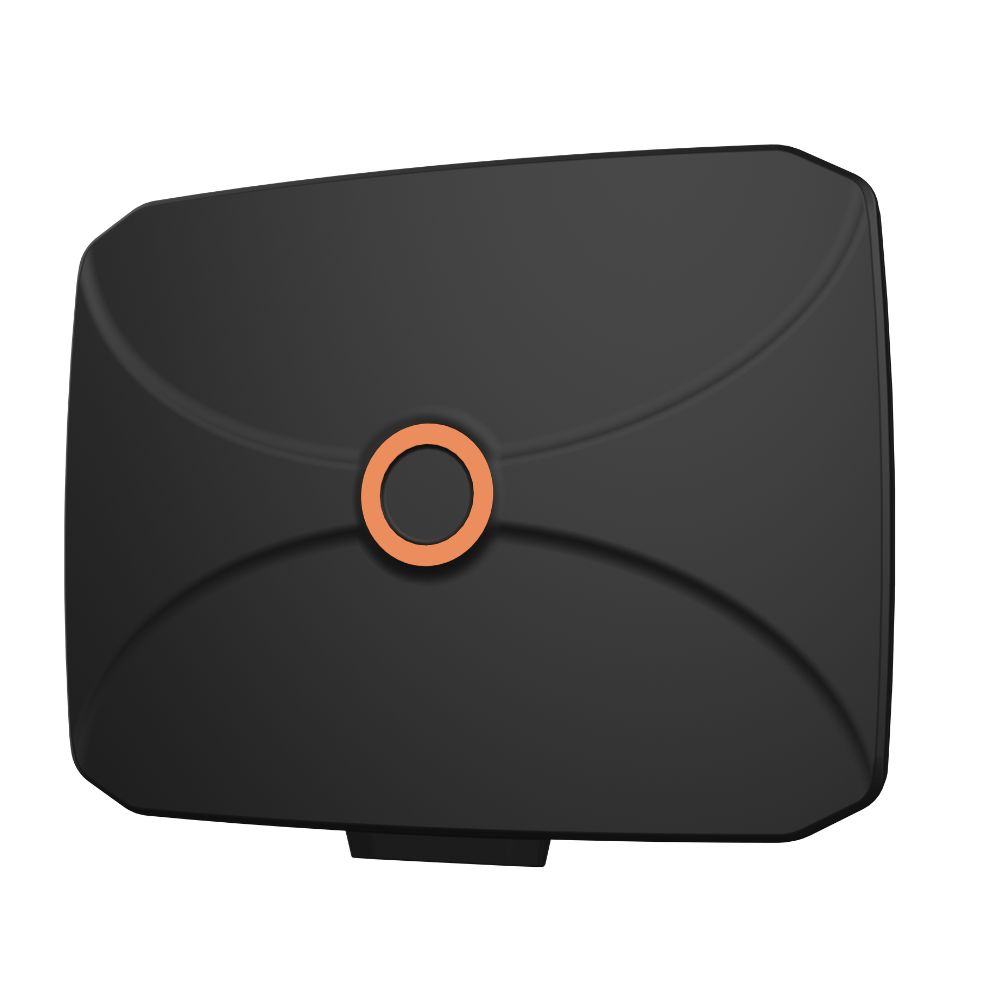

POYNTING PANL-401 Omni-Directional Wideband Panel 5G Antenna

The POYNTING PANL-401 is a premium 5-in-1 omni-directional panel antenna engineered to deliver exceptional 5G, LTE, and GNSS performance for connected vehicles, industrial IoT, transportation, emergency services, and fixed wireless deployments. Featuring four ultra-wideband 4x4 MIMO cellular antennas and one dual-band active GNSS antenna in a compact low-profile enclosure, the PANL-401 provides reliable connectivity across an extensive 410–6000 MHz frequency range. Its future-ready design supports global 5G, 4G LTE, LTE-A, CBRS, and emerging cellular technologies while delivering high antenna gain of up to 7.8 dBi for improved throughput and network reliability.

Designed for both mobile and fixed installations, the PANL-401 combines cross-polarized 4x4 MIMO technology with an integrated dual-band GNSS antenna for enhanced cellular performance and precise positioning. The rugged IP65-rated UV-stable enclosure is built for demanding environments, while two convenient window-mount installation options make deployment quick and non-invasive. Configuration 1 uses the supplied Velcro mounting assembly for a secure adhesive installation, while Configuration 2 utilizes the included suction cups for temporary or easily removable mounting. These flexible installation options make the PANL-401 ideal for fleet vehicles, emergency response units, commercial transportation, mobile broadband, home offices, remote infrastructure, and enterprise connectivity.

POYNTING PANL-401 Features:

• 5-in-1 antenna with four cellular antennas and one dual-band active GNSS antenna
• Supports 4x4 MIMO cellular connectivity with integrated GNSS positioning
• Ultra-wideband frequency coverage from 410–6000 MHz
• Compatible with 5G, 4G LTE, LTE-A, CBRS, and future cellular technologies
• Peak cellular antenna gain up to 7.8 dBi
• Integrated dual-band GNSS antenna supporting L1 and L5 frequencies
• Cross-polarized linear vertical and horizontal antenna design for improved MIMO performance
• Low-profile omni-directional panel antenna design
• Integrated 2 m low-loss RTK-031 cables with factory-fitted SMA male connectors
• Configuration 1: Window mounting using the included Velcro mounting assembly
• Configuration 2: Window mounting using the supplied M6 suction cups
• Includes Velcro strips, spare Velcro strips, suction cups, mounting screws, and Allen key
• Ground-independent design suitable for vehicle and fixed installations
• Weather-resistant IP65-rated enclosure
• UV-stable ASA housing for long-term durability
• E-Mark certified for automotive applications
• Operating temperature range from -40°C to +80°C
• CE and RoHS compliant

Ideal Applications:

• Connected vehicles and fleet management
• Public safety and emergency response vehicles
• Commercial transportation and bus connectivity
• Industrial IoT (IIoT) deployments
• Machine-to-Machine (M2M) communications
• Remote infrastructure monitoring
• Fixed wireless access (FWA)
• Home office and small business backup internet
• Enterprise cellular networking
• Mobile broadband deployments
• GPS tracking and vehicle telematics
• Industrial gateways and edge computing devices

Technical Specifications:

• Configuration: 5-in-1 (4 Cellular + 1 Dual-Band GNSS)
• Cellular Configuration: 4x4 MIMO
• Frequency Range: 410–470 MHz, 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3300–4200 MHz, 4400–6000 MHz
• GNSS Frequencies: L1 1575.42 MHz ±25 MHz and L5 1176.45 MHz ±25 MHz
• Peak Cellular Gain: Up to 7.8 dBi
• GNSS LNA Gain: 20 ±2 dB
• Cellular VSWR: ?2:1 across 85% of frequency bands
• GNSS VSWR: <2:1
• Input Impedance: 50 Ohm
• Cellular Polarization: Cross Polarized (Linear Vertical & Horizontal)
• GNSS Polarization: RHCP
• Maximum Power Handling: 10 W
• GNSS Operating Voltage: 2.7–5 V
• GNSS Operating Current: <15 mA
• Connector Type: 5 × SMA Male
• Cable Type: RTK-031
• Cable Length: 2 m
• Dimensions: 267 × 210 × 31 mm
• Weight: 0.88 kg
• Housing Material: UV-Stable ASA
• Mounting Options:
  • Configuration 1 – Adhesive window mount using the supplied Velcro mounting assembly
  • Configuration 2 – Window mount using the supplied M6 suction cups
• Included Accessories:
  • 2 × Velcro Mount Assemblies (with Velcro strips attached)
  • 2 × Spare Velcro Strips
  • 4 × M6 Suction Cups with Screws
  • 4 × M6 × 16 mm Stainless Steel Countersunk Captive Screws
  • Allen Key
• Ingress Protection: IP65
• Impact Rating: IK08
• Wind Survival: Up to 160 km/h
• Operating Temperature: -40°C to +80°C
• Operating Humidity: Up to 98%
• Environmental Rating: Indoor Window Mount
• Automotive Certification: E-Mark Approved
• Compliance: CE and RoHS
