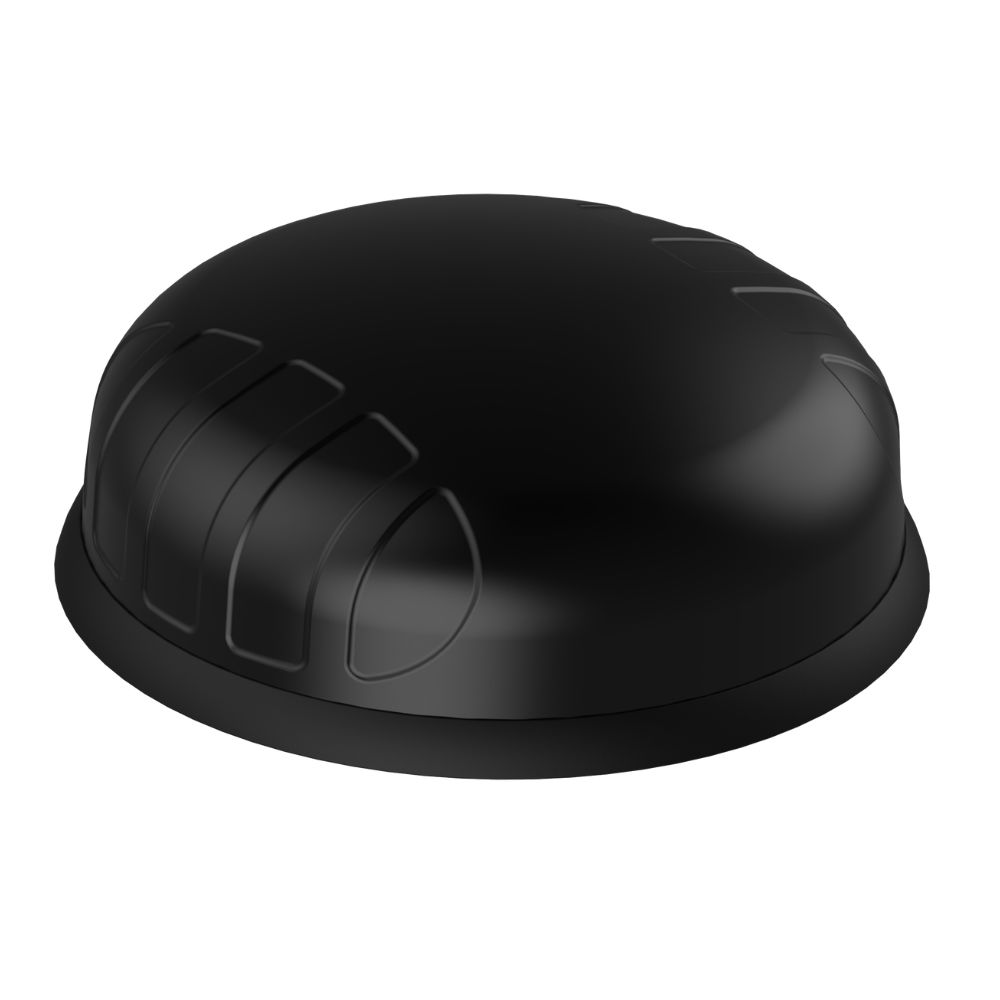

POYNTING PUCK-3 3-in-1 Transportation & IoT/M2M Antenna

The POYNTING PUCK-3 is a compact, high-performance 3-in-1 antenna designed to provide dependable wireless connectivity for transportation, industrial IoT, smart utilities, marine, and M2M applications. Combining a wideband 5G/LTE cellular antenna, dual-band Wi-Fi antenna, and active GPS/GLONASS antenna into a single low-profile enclosure, the PUCK-3 delivers reliable communications, positioning, and wireless networking for connected vehicles, industrial equipment, and remote monitoring systems. Supporting cellular frequencies from 617–6000 MHz and Wi-Fi frequencies from 2.4 GHz through 7.2 GHz, the PUCK-3 is ready for today's LTE and 5G deployments while remaining future-proof for evolving wireless technologies.

Built for harsh outdoor environments, the PUCK-3 features a rugged IP69K-rated, vandal-resistant enclosure that withstands extreme temperatures from -40°C to +80°C while maintaining exceptional wireless performance. Its omni-directional design provides consistent coverage without requiring antenna alignment, while versatile mounting options—including threaded spigot, magnetic, adhesive, wall, and pole mounting—allow quick installation on vehicles, machinery, utility cabinets, kiosks, marine vessels, and industrial infrastructure. Whether deployed for fleet connectivity, smart metering, automation, or public safety communications, the PUCK-3 delivers enterprise-grade reliability in a compact form factor.

POYNTING PUCK-3 Features:

• 3-in-1 antenna integrating Cellular, Wi-Fi, and GPS/GLONASS into a single enclosure
• Wideband cellular coverage from 617–6000 MHz
• Dual-band Wi-Fi support from 2.4 GHz to 7.2 GHz (Wi-Fi 6/6E/7 ready)
• Active GPS/GLONASS receiver for accurate positioning and navigation
• Supports 5G NR, 4G LTE, 3G, 2G, Wi-Fi, LoRa, Bluetooth, and CBRS networks
• 5.5 dBi peak cellular gain and 4.5 dBi Wi-Fi gain
• Compact low-profile design (Ø99.3 mm × 36 mm)
• IP69K-rated waterproof, dustproof, and vandal-resistant housing
• UV-stable, corrosion-resistant, and fire-resistant enclosure
• Factory-installed low-loss coaxial cables with SMA male connectors
• Includes RP-SMA adapter for Wi-Fi connection flexibility
• Multiple mounting options including spigot, magnetic, adhesive, wall, and pole mounting
• E-Mark certified for transportation applications
• Designed for both indoor and outdoor installations

Ideal Applications:

• Fleet management and connected transportation
• Industrial IoT (IIoT) and Machine-to-Machine (M2M) communications
• Private 5G and CBRS network deployments
• Smart power, gas, and water metering
• Smart building automation and security systems
• Remote telemetry and GPS tracking
• Digital signage and connected kiosks
• Warehouse automation and logistics
• Mining vehicles and heavy equipment communications
• Agricultural machinery and precision farming
• Marine vessels operating near coastlines and inland waterways
• Public safety and utility vehicles

Technical Specifications:

• Antenna Configuration:
  • 1 × Cellular (SISO)
  • 1 × Wi-Fi (SISO)
  • 1 × Active GPS/GLONASS
• Cellular Frequency Bands:
  • 617–960 MHz
  • 1427–1517 MHz
  • 1710–2700 MHz
  • 3400–4200 MHz
  • 5000–6000 MHz
• Wi-Fi Frequency Bands:
  • 2400–2500 MHz
  • 5000–7200 MHz
• GPS Frequencies:
  • 1575.42 MHz (GPS)
  • 1602 MHz (GLONASS)
• Supported Technologies: 5G NR, 4G LTE, LTE-A, 3G, 2G, Wi-Fi 6/6E/7, Bluetooth, LoRa, CBRS
• Maximum Cellular Gain:
  • -2 dBi @ 617–960 MHz
  • 2 dBi @ 1427–1517 MHz
  • 4.5 dBi @ 1710–2700 MHz
  • 5.5 dBi @ 3400–4200 MHz
  • 5 dBi @ 5000–6000 MHz
• Maximum Wi-Fi Gain:
  • 2 dBi @ 2.4 GHz
  • 4.5 dBi @ 5–7.2 GHz
• GPS LNA Gain: 20 ±3 dBi
• Cellular VSWR: ?2.5:1
• Wi-Fi VSWR: <2:1
• Input Impedance: 50 Ohms
• Maximum Power Handling: 10 W
• Polarization:
  • Cellular: Linear Vertical
  • Wi-Fi: Linear Vertical
  • GPS: RHCP
• Connectors:
  • 3 × SMA Male
  • 1 × RP-SMA Adapter Included
• Cable Type: RTK-031 Low-Loss Coaxial Cable
• Cable Length: 3 × 2 m
• Dimensions: Ø99.3 mm × 36 mm
• Weight: 0.426 kg
• Housing Material: UV-Stable PC+ABS (Halogen Free)
• Mounting Options:
  • Threaded Spigot Mount
  • Magnetic Mount
  • Adhesive Surface Mount
  • Wall Mount
  • Pole Mount
• Ingress Protection: IP69K
• Impact Rating: IK10
• Wind Survival: Up to 220 km/h
• Operating Temperature: -40°C to +80°C
• Operating Humidity: Up to 98%
• Environmental Rating: Indoor / Outdoor
• Salt Spray: MIL-STD-810G / ASTM B117
• Enclosure Flammability: UL 94-HB
• Compliance: CE, RoHS, E-Mark Certified
