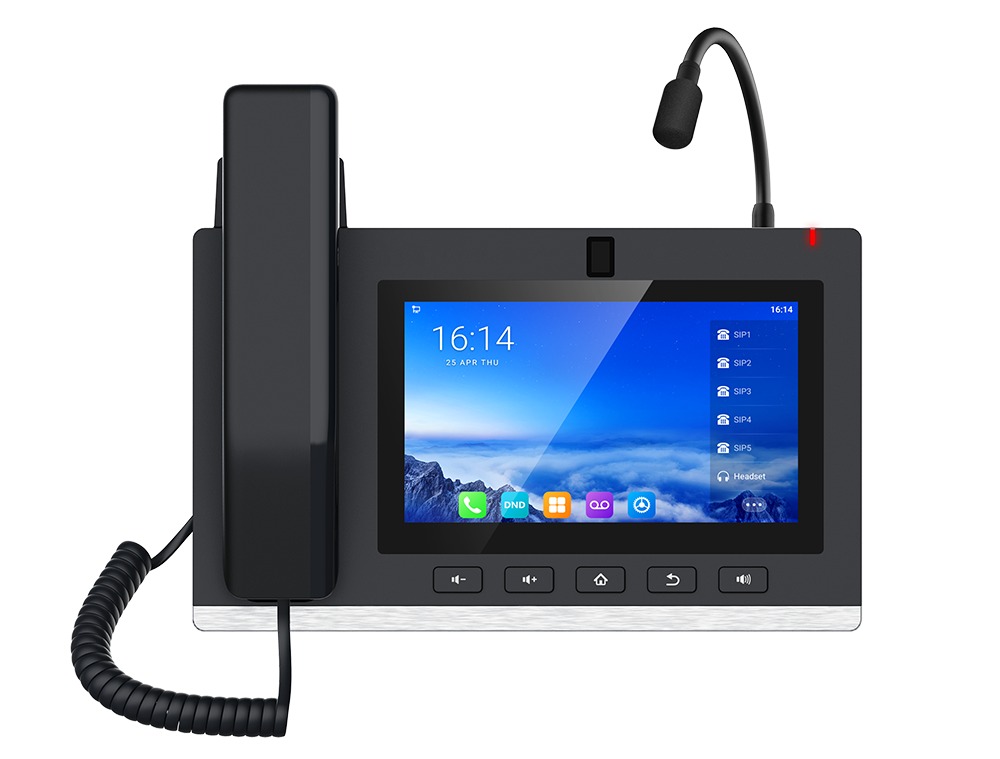

Fanvil A308i Android Console IP Phone
The Fanvil A308i is an Android-based console IP phone designed for reception desks, dispatch positions, security stations, management consoles, and other communication-intensive environments. It combines a 7-inch color touchscreen, 20 SIP lines, 116 programmable DSS keys, an adjustable 5MP camera, a gooseneck microphone, HD audio and video, and advanced conferencing capabilities in a flexible desktop or wall-mounted design.
Running Android 9.0, the A308i supports compatible third-party Android applications and Fanvil's built-in broadcast and intercom functions. Dual Gigabit Ethernet ports, integrated PoE, dual-band 2.4 GHz / 5 GHz Wi-Fi, 10-party audio conferencing, 3-party video conferencing, and a high-output full-duplex speakerphone make it well suited for users who need centralized call handling, visual communication, paging, intercom, and programmable controls from a single console.
Key Features
- 7-Inch Touchscreen: 1024 × 600 color touchscreen provides an intuitive interface for calling, DSS functions, applications, contacts, and device management.
- 20 SIP Lines: Supports up to 20 SIP accounts for high-volume business, dispatch, reception, and console applications.
- 116 Programmable DSS Keys: Virtual DSS keys provide extensive programmable access to BLF, line, speed dial, intercom, and other supported functions.
- 5MP Adjustable Camera: Built-in adjustable camera supports HD video calling and video preview applications.
- Gooseneck Microphone: Dedicated gooseneck microphone supports precise voice pickup for console and dispatch-style operation.
- High-Output Full-Duplex Audio: Intelligent speech processing supports full-duplex calls with speaker output up to 90 dB.
- 10-Party Audio Conferencing: Supports large multi-party audio conferences directly from the console.
- 3-Party Video Conferencing: Supports multi-party video communication for compatible SIP video environments.
- Android 9.0: Android operating system supports compatible third-party applications and Fanvil development APIs.
- Dual-Band Wi-Fi: Built-in 2.4 GHz and 5 GHz Wi-Fi provides wireless network connectivity.
- Dual Gigabit Ethernet: Two 10/100/1000 Mbps Ethernet ports provide high-speed network connectivity and PC passthrough.
- Integrated PoE: Supports network and power delivery through a compatible PoE connection.
Applications & Use Cases
- Reception & Front Desk: Twenty SIP lines and extensive DSS functions help receptionists manage extensions, BLF monitoring, transfers, and high call volumes.
- Dispatch Consoles: Gooseneck microphone, loud full-duplex audio, programmable controls, and touchscreen operation support dispatch-oriented communication workflows.
- Security Stations: Video calling, multicast, intercom, programmable keys, and centralized call handling support security and monitoring desks.
- Command & Operations Centers: High-density DSS controls and multi-line operation provide quick access to contacts, lines, groups, and supported communications functions.
- Broadcast & Intercom: Built-in Fanvil broadcast and intercom capabilities support compatible paging and internal communication deployments.
- Executive & Administrative Desks: Touchscreen operation, video calling, large phonebooks, Wi-Fi, and programmable functions provide a feature-rich business communications platform.
- Audio & Video Conferencing: Supports up to 10-party audio and 3-party video conferencing for collaborative communications.
- Custom Android Applications: Android 9.0 and Fanvil API support allow compatible third-party applications to be incorporated into specialized workflows.
Technical Specifications
Display & User Interface
- Display: 7-inch color touchscreen
- Resolution: 1024 × 600 pixels
- SIP Lines: 20
- Programmable DSS Keys: Up to 116 virtual DSS keys
- Physical Keys: 5, including Volume Down, Volume Up, Home, Hands-Free, and Return
- Local Phonebook: Up to 2000 entries
- Remote Phonebook: XML / LDAP, up to 2000 entries
- Call Logs: Up to 1000 incoming, outgoing, and missed-call records
- Blocked / Allowed Lists: Supported
- Voice Message Waiting Indication: Supported
Operating System & Applications
- Operating System: Android 9.0
- Third-Party Applications: Compatible Android applications supported
- Development Support: Fanvil API for secondary development
- Built-In Applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, and Music
- Audio / Video Recording: Supported
- Fanvil Broadcast & Intercom System: Built in
Calling & Conferencing
- Audio Conference: Up to 10-party
- Video Conference: Up to 3-party
- Call Hold / Resume: Supported
- Call Waiting: Supported
- Call Forward: Always, Busy, No Answer
- Call Transfer: Attended and unattended
- Call Parking / Pickup: Supported when provided by the SIP server
- Do Not Disturb: Supported
- Auto Answer: Supported
- Hot Desking: Supported
- BLF: Supported
- SIP Hotspot: Supported
- Multicast: Supported
Camera & Video
- Camera: Built-in adjustable 5MP camera
- Video Codec: H.264
- Video Call Resolutions: CIF, VGA, 4CIF, 720p, 1080p
- Video Frame Rate: 5 to 30 fps
- Video Bandwidth: 64 kbps to 4 Mbps
- Video Preview: Supported
- Remote Video Full Screen: Supported
- Image Formats: JPEG, PNG, BMP
- Video Format: MP4
Audio
- Microphone: Gooseneck microphone
- Maximum Speaker Level: Up to 90 dB
- HD Voice: Supported on handset and hands-free speakerphone
- Hearing Aid Compatibility: HAC handset
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711A/U, G.729AB, iLBC
- Speakerphone: Full-duplex Acoustic Echo Cancellation
- Noise Reduction: Supported
- Packet Loss Concealment: Supported
- Adaptive Jitter Buffer: Supported
- DTMF: In-band, RFC2833, SIP INFO
Network & Wireless
- Ethernet Ports: 2 × RJ45 10/100/1000 Mbps Gigabit Ethernet ports
- Network Port: 1 × Gigabit Ethernet
- PC Port: 1 × bridged Gigabit Ethernet
- Wi-Fi: Built-in dual-band 2.4 GHz / 5 GHz Wi-Fi
- IP Mode: IPv4
- IP Configuration: Static IP / DHCP
- Network Access Control: IEEE 802.1X
- VPN: OpenVPN with compatible third-party application support
- VLAN: Supported
- LLDP: Supported
- CDP: Supported
- QoS: Supported
Protocols & Security
- SIP: SIP 2.0 over UDP, TCP, and TLS
- Media: RTP, RTCP, SRTP
- Additional Protocols: STUN, DHCP, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
- Encrypted Configuration: AES-encrypted configuration file download supported
Interfaces
- Handset Port: 1 × RJ9
- Headset Port: 1 × RJ9
- USB: 1 × USB 2.0 Type-A
- Security Slot: 1 × security keyhole
- Operating Modes: Handset, hands-free, and headset
Power
- Power: PoE or 12V DC / 1A
- Power Consumption with PoE: Approximately 3.52W to 10.76W
- Power Consumption with Adapter: Approximately 2.38W to 8.6W
- External Power Adapter: Optional
Provisioning & Management
- Web Management: Supported
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
- Web Upgrade: Supported
- Factory Reset: Supported
- Telnet: Supported
Physical & Environment
- Color: Gray
- Desktop Installation: 45-degree or 50-degree stand positions
- Wall Mounting: Supported with the included dual-purpose installation bracket
- 45-Degree Dimensions: 265 × 172.1 × 145.2 mm
- 50-Degree Dimensions: 265 × 161.7 × 154.5 mm
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 95% RH
Package Includes
- Console IP Phone: 1 × Fanvil A308i
- Handset: 1 × handset
- Handset Cord: 1 × handset cord
- Gooseneck Microphone: 1 × gooseneck microphone
- Ethernet Cable: 1 × Ethernet cable
- Installation Stand: 1 × dual-purpose stand / bracket
- Quick Installation Guide: 1 × Fanvil A308i Quick Installation Guide
Compatibility & Buying Information
The Fanvil A308i is an Android console IP phone intended for higher-density call handling, intercom, video, broadcast, and programmable DSS applications. It provides 20 SIP lines and up to 116 virtual DSS keys, making it better suited to console-style workflows than a conventional lower-line-count desk phone.
The A308i runs Android 9.0 and supports compatible third-party Android applications. Application compatibility depends on the requirements of the individual application, the phone's Android environment, and the deployed firmware, so buyers requiring a specific third-party application should confirm compatibility before deployment.
The phone supports dual Gigabit Ethernet, integrated PoE, and built-in 2.4 GHz / 5 GHz Wi-Fi. It can also be powered by a 12V DC / 1A external adapter; however, Fanvil identifies the external power adapter as optional, so it should not be assumed to be included with every A308i.
The A308i includes an adjustable 5MP camera for SIP video applications and a removable gooseneck microphone for console-style voice pickup. Video calling, conferencing, BLF, call parking, and other server-dependent functions require compatible SIP platform support and configuration.
