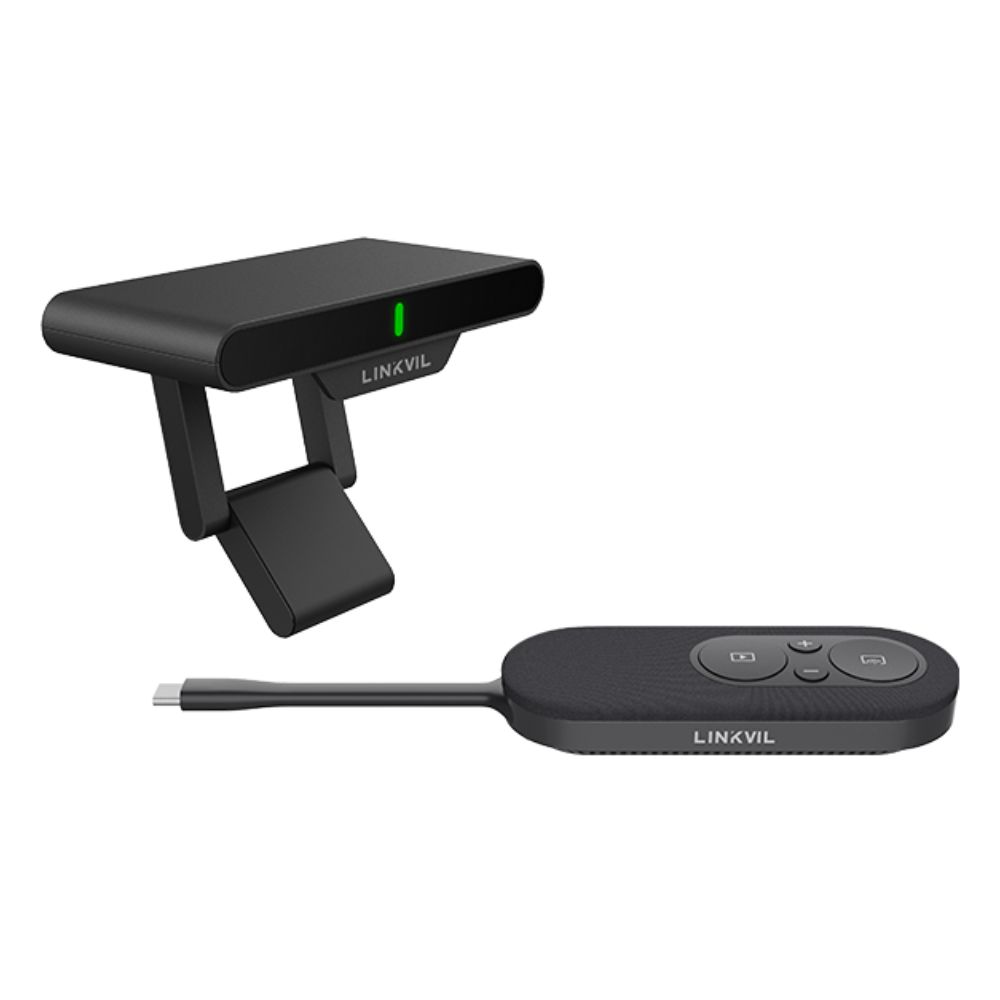

CA200 Wireless Conference Kit

The Fanvil CA200 is a wireless conference kit that streamlines meeting deployment and boosts collaboration efficiency. With an integrated transmitter and receiver, a single CA200 hub can connect up to four CP20 screen-sharing pods simultaneously, supporting 4K wireless casting and freeze mode for seamless presentations. Compact and portable, CA200 is compatible with multiple devices, eliminating cable clutter and enabling a more productive meeting environment.

Highlights:

• Supports HDMI-enabled displays and one-press 4K/30fps wireless screen sharing
• One-click switch between screen share and freeze mode
• Connect up to 4 devices for seamless expansion
• Plug-and-play setup, no software installation required
• Synchronize system volume across screen-sharing devices
• Wireless access to UVC camera, microphone, and speaker
• Compatible with CA400 suite and includes universal stand for flexible deployment

Technical Specifications:

Connectivity

• Wi-Fi: Wi-Fi 5 / Wi-Fi 6
• Frequency Band: 2.4GHz / 5GHz
• Encryption Protocol: WPA3-PSK
• Transmission Distance: up to 10 meters

Physical Specifications

• CP20 Screen-Sharing Pod: 189 × 40 × 18mm, USB cable 85mm, weight 62g
• RC10 Receiver Hub: 102 × 45 × 20mm, weight 85g
• Gift Box: 224 × 138 × 79.5mm
• Carton Package: 423 × 296 × 244mm (10 pcs), net weight 0.675kg, gross weight 7.35kg
• Working Temperature: -10°C to +40°C
• Working Humidity: 0% – 95% RH

Package Contents

• CP20 Screen-Sharing Pod
• RC10 Receiver Hub
• Pairing Adapter
• 1.5m HDMI Cable
• Power Adapter: Type-C port (5V/2A)
• Quick Installation Guide

I/O Interface

• CP20 Pod: Type-C PD + DP ALT
• RC10 Hub: HDMI ×1, Type-C PD, USB-A 3.0 ×1

Specifications & Compliance

• CP20 Pod: 5V operation, 2.5W power consumption
• Buttons: Screen share, Volume Up/Down, Freeze screen with LED indicators
• RC10 Hub: Magnetic design, Input power 5V/2A
• Supports mainstream UC and video conferencing platforms
• Device compatibility: Windows/Mac PCs, laptops, tablets, smartphones with full-featured USB-C
