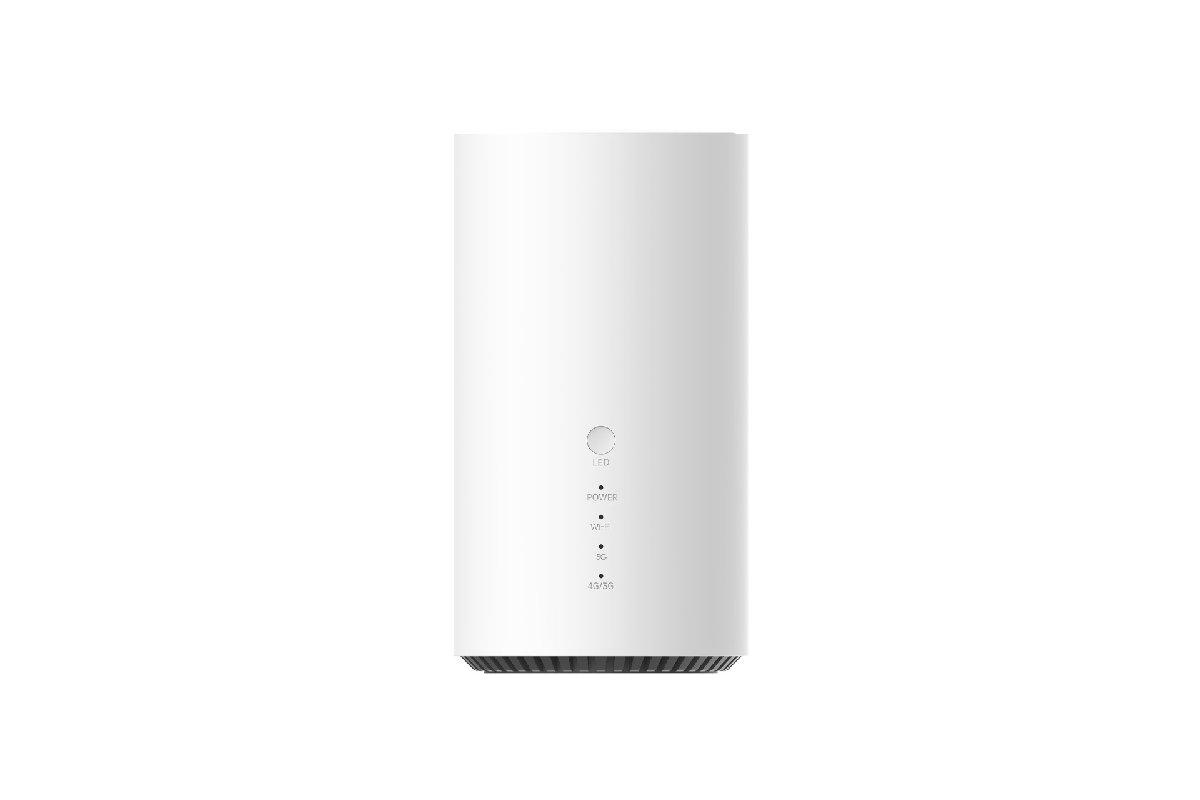

Teltonika CAP700 WIFI 7 Router for Fixed Wireless Access - CAP700000000

• 5G Wi-Fi 7 router for Fixed Wireless Access
• Designed for homes, small offices, remote sites, and managed broadband deployments
• 5G NR Standalone and Non-Standalone support
• 5G speeds up to 4 Gbps download and 900 Mbps upload
• 4G LTE Cat 19 fallback
• LTE speeds up to 1.6 Gbps download and 200 Mbps upload
• 3G fallback support
• 1 x Nano-SIM / 4FF slot
• Dual-band Wi-Fi 7
• 2.4 GHz and 5 GHz simultaneous wireless operation
• IEEE 802.11a/b/g/n/ac/ax/be support
• 2x2 MIMO on both Wi-Fi bands
• Wireless transmission rates up to approximately 6.4 Gbps aggregate
• WPA3 and enterprise wireless-security support
• Fast Roaming and Mesh functionality
• 1 x 2.5 GbE RJ45 WAN/LAN port
• 1 x Gigabit Ethernet RJ45 LAN port
• 1 x RJ11 telephone interface
• Micro-USB virtual network interface
• Integrated mobile and Wi-Fi antennas
• Automatic mobile and wired WAN failover
• Advanced routing, firewall, VLAN, and VPN functionality
• Captive portal and hotspot functionality
• RutOS operating system based on OpenWrt Linux
• Teltonika RMS remote monitoring and management
• Zero-touch deployment support
• Remote device and LAN access through RMS
• Compact indoor desktop design
• EU power supply included with CAP700000000

• 5G Fixed Wireless Access
• Residential broadband where fiber is unavailable
• Small office Internet access
• Remote branch connectivity
• Primary 5G WAN connectivity
• Backup broadband connections
• Temporary offices and construction sites
• Pop-up retail locations
• Temporary events and venues
• Retail and POS networks
• Digital signage connectivity
• Healthcare and professional-office networks
• Managed residential Internet deployments
• Service-provider FWA deployments
• Smart-home connectivity
• Streaming and entertainment networks
• Remote-work environments
• High-bandwidth Wi-Fi environments
• Smart-city and remote facility connectivity
• Multi-site deployments managed through Teltonika RMS

• 1 x Teltonika ALTOS CAP700 5G Wi-Fi 7 Router
• 1 x EU Barrel-Jack Power Supply
• 1 x Cat5e Ethernet Cable
• 1 x Quick Start Guide
• 1 x Packaging Box

CAP700000000 EMEA Version: This exact order code is Teltonika's CAP700 0***** configuration for EMEA and is supplied as the standard package with an EU power supply. Customers deploying outside the intended region should verify frequency support, regulatory approvals, power-plug requirements, and carrier compatibility before purchase.

5G Fixed Wireless Access: ALTOS is designed primarily to turn compatible 5G cellular service into high-performance wired and wireless broadband. It is particularly useful in locations where fiber or cable Internet is unavailable, expensive to install, temporary, or needs a cellular backup path.

5G SA & NSA: The CAP700 supports both Standalone and Non-Standalone 5G architectures, allowing deployment across different generations of 5G network infrastructure when supported by the mobile operator.

Cellular Performance: Teltonika specifies mobile speeds up to 4 Gbps download and 900 Mbps upload on 5G and up to 1.6 Gbps download on LTE Cat 19. Actual throughput depends on operator support, spectrum, network architecture, signal quality, congestion, service plan, and installation environment.

Single Nano-SIM: ALTOS uses one physical Nano-SIM / 4FF slot. The SIM card and cellular data service are not included with the router and must be obtained from a compatible mobile operator.

Wi-Fi 7: The dual-band wireless system supports 2.4 GHz and 5 GHz Wi-Fi using IEEE 802.11be together with backward-compatible Wi-Fi standards. Wi-Fi 7 provides higher efficiency, lower latency, and improved performance for modern multi-device networks compared with older Wi-Fi generations.

Wi-Fi Performance: The CAP700 supports aggregate theoretical wireless rates of approximately 6.4 Gbps across its dual-band 2x2 MIMO radios. Actual wireless throughput depends on the client device, channel width, interference, distance, regulatory settings, and Wi-Fi capabilities of the connected equipment.

2.5 Gigabit Ethernet: The configurable WAN/LAN port supports up to 2.5 Gbps Ethernet, allowing substantially more wired throughput than traditional Gigabit or Fast Ethernet interfaces. A second dedicated LAN interface supports up to 1 Gbps.

Internal Antennas: ALTOS uses an integrated antenna design rather than the external SMA and RP-SMA antenna connectors common on Teltonika's industrial RUT routers. This simplifies desktop deployment but means buyers should not plan on attaching standard external Teltonika antennas unless specifically supported by the hardware and documentation.

RJ11 Interface: The CAP700 includes an RJ11 telephone port. Availability and functionality of telephone services can depend on firmware, carrier configuration, service provisioning, and the intended deployment, so required voice functionality should be confirmed before purchase.

Indoor FWA Design: ALTOS is designed as an indoor fixed wireless router rather than an outdoor industrial cellular router. For best 5G performance, placement should account for mobile signal strength, building construction, interference, and proximity to windows or other favorable indoor reception locations.

EU PSU Included: CAP700000000 is supplied as the standard EMEA package with an EU power supply. Installations requiring a different mains plug should confirm the appropriate power option before purchase.

Remote Management: Teltonika RMS supports zero-touch deployment, remote configuration, monitoring, firmware management, remote device access, and remote LAN access. These features make ALTOS particularly attractive to ISPs, MSPs, system integrators, and organizations managing many FWA sites.

Best Fit: The CAP700000000 is a strong choice for residential 5G broadband, small offices, managed FWA deployments, remote branches, retail locations, temporary sites, events, smart-home networks, and service-provider installations that need high-speed 5G, Wi-Fi 7, multi-gigabit Ethernet, enterprise-grade security, and centralized remote management.
