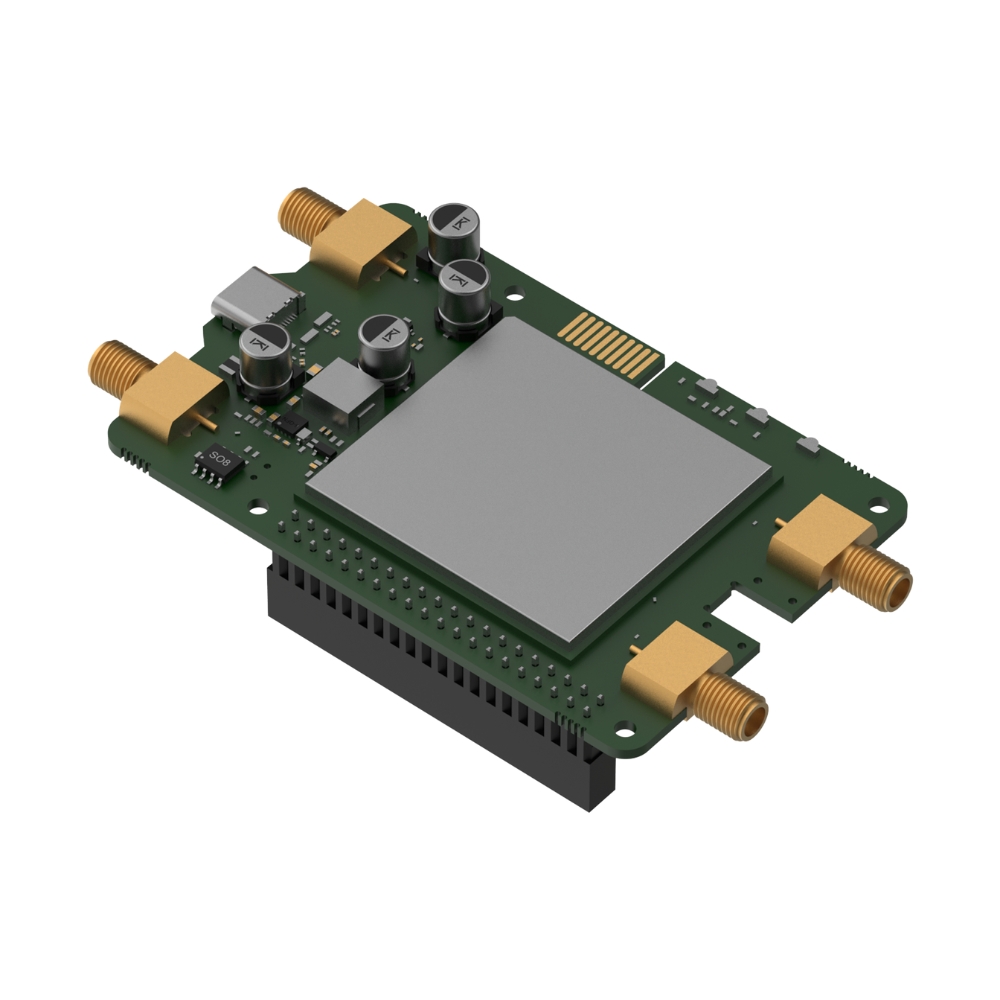

Teltonika EBD021 Calyx 4G Embedded Cellular Raspberry Pi HAT+ (NO PSU)
Teltonika EBD021 Calyx 4G Embedded Cellular Raspberry Pi HAT+ (No PSU)
The Teltonika EBD021 Calyx is an industrial-grade 4G LTE Embedded Cellular Raspberry Pi HAT+ designed to provide reliable cellular connectivity for Raspberry Pi 4 and Raspberry Pi 5 platforms. Purpose-built for Industrial IoT (IIoT), edge computing, smart city, energy, utilities, and automation applications, the EBD021 delivers seamless LTE Cat 4 connectivity in a compact HAT+ form factor that mounts directly onto the Raspberry Pi GPIO interface. With integrated modem control, USB Type-C connectivity, Nano SIM support, and industrial-grade durability, the Calyx simplifies the deployment of connected embedded systems without requiring external gateways.
Designed for developers, system integrators, OEMs, and industrial solution providers, the EBD021 combines LTE Cat 4 cellular networking with GPIO modem management, PCM audio support, and a rugged operating temperature range of -40°C to +75°C. The embedded design enables direct control of modem power, reset, and wake functions through Raspberry Pi GPIO pins, while dual SMA antenna connectors ensure dependable wireless performance. This version is supplied without a power supply (No PSU), making it ideal for custom embedded systems where power is already integrated into the deployment.
Teltonika EBD021 Calyx Features:
- Industrial 4G LTE Cat 4 Embedded Cellular Raspberry Pi HAT+
- Designed for Raspberry Pi 4 and Raspberry Pi 5 platforms
- LTE Cat 4 connectivity with download speeds up to 75 Mbps and upload speeds up to 50 Mbps
- Backward compatible with 3G and 2G mobile networks
- 3GPP Release 9 cellular module
- Direct Raspberry Pi GPIO integration for modem control
- GPIO modem wake, reset, and power management functions
- USB 2.0 interface with USB Type-C connector
- Integrated PCM interface for low-latency audio applications
- Nano SIM (4FF) card slot
- Dual SMA connectors for external LTE antennas
- Supports power through Raspberry Pi GPIO header or USB Type-C
- Compact HAT+ form factor with included mounting hardware
- Industrial operating temperature from -40°C to +75°C
- Designed for Industrial IoT, embedded computing, and edge connectivity
- Supplied without power supply (No PSU)
Ideal Applications:
- Industrial IoT (IIoT) deployments
- Embedded Raspberry Pi projects
- Edge computing gateways
- Industrial automation systems
- Remote monitoring and telemetry
- Energy and utility infrastructure
- Smart city applications
- OEM embedded device development
- Machine-to-machine (M2M) communications
- Connected industrial control systems
Technical Specifications:
- Model: Teltonika EBD021 Calyx
- Product Type: Embedded Cellular Raspberry Pi HAT+
- Cellular Technology: 4G LTE Cat 4
- Maximum Download Speed: Up to 75 Mbps
- Maximum Upload Speed: Up to 50 Mbps
- 3G Support: DC-HSPA+ up to 42 Mbps download
- 2G Support: EDGE and GPRS compatibility
- 3GPP Release: Release 9
- Compatible Platforms: Raspberry Pi 4 and Raspberry Pi 5
- USB Interface: USB 2.0 via USB Type-C
- GPIO Interface: 40-pin Raspberry Pi HAT+ connector
- GPIO Functions: Modem power, wake, and reset control
- SIM Slot: 1 × Nano SIM (4FF)
- Antenna Connectors: 2 × SMA
- Status LEDs: Power, NET IND, NET STAT
- Power Input: 5 VDC via USB Type-C or Raspberry Pi GPIO header
- Dimensions: 56 × 23.11 × 95.48 mm
- Weight: 57 g
- Operating Temperature: -40°C to +75°C
- Mounting: Includes mounting kit for Raspberry Pi integration
- Package Includes: Calyx EBD021 module, Quick Start Guide, PCB connector, fasteners kit, USB Type-C cable
- Power Supply: Not Included (No PSU)
