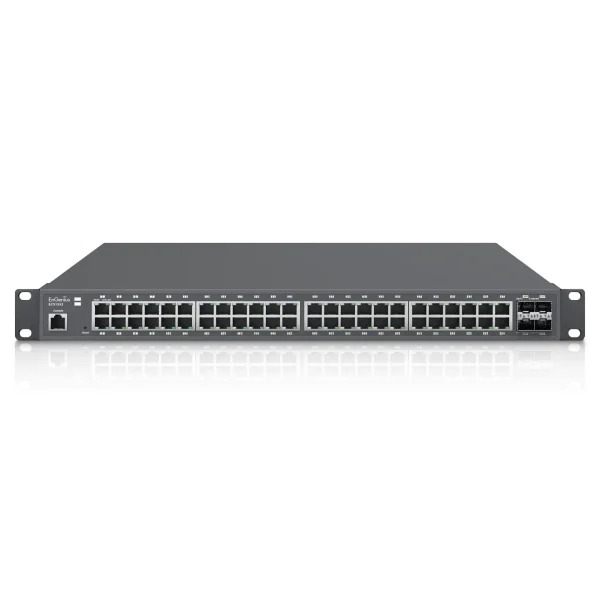

EnGenius ECS1552 - 48-Port Non-PoE Network Switch
The EnGenius ECS1552 is a cloud-managed Layer 2+ 48-port Gigabit network switch designed for business and enterprise networks that need high port density without Power over Ethernet. It provides 48 × Gigabit Ethernet RJ45 ports for workstations, servers, printers, storage systems, uplinks, and other wired devices, plus 4 × 10G SFP+ ports for high-speed fiber or DAC connections to aggregation switches, servers, and network backbones.
With 176 Gbps switching capacity, IPv4 and IPv6 static routing, VLAN segmentation, QoS, link aggregation, 802.1X authentication, ACLs, DHCP snooping, Voice VLAN, storm control, and flexible EnGenius Cloud or standalone management, the ECS1552 provides a scalable non-PoE access-layer switching platform for offices, schools, hospitality environments, multi-site organizations, and other high-density wired networks.
Key Features
- 48 x 10/100/1000 Mbps Gigabit Ethernet RJ45 ports
- 4 x 10G SFP+ uplink ports
- 176 Gbps switching capacity
- Layer 2+ switching with IPv4 and IPv6 static routing
- 32K MAC address table
- 10K jumbo frame support
- Up to 256 multicast groups
- 8 QoS priority queues
- IEEE 802.1Q VLAN tagging
- Voice VLAN support
- STP, RSTP, and MSTP
- IEEE 802.3ad link aggregation
- IGMP and MLD snooping
- 802.1X and RADIUS authentication
- MAC and IPv4/IPv6 ACL support
- DHCP snooping and ARP packet validation
- Port security and storm control
- Energy Efficient Ethernet support
- EnGenius Cloud centralized management
- Standalone local web and CLI management
- Zero-touch provisioning through EnGenius Cloud
- 19-inch 1U rack-mountable design
- Non-PoE design for networks where connected devices are powered separately
Applications & Use Cases
- Business and enterprise access-layer switching
- High-density wired office networks
- Desktop and workstation connectivity
- Server and storage connectivity
- Schools and educational facilities
- Hotels and hospitality networks
- Retail and multi-site environments
- Branch offices and corporate networks
- Networks with separately powered endpoints
- 10G fiber uplinks to aggregation switches
- Cloud-managed distributed networks
- Networks requiring many Gigabit ports without PoE power delivery
Technical Specifications
Switching & Ports
- Manufacturer: EnGenius
- Model: ECS1552
- Product Type: Cloud Managed Layer 2+ Gigabit Switch
- RJ45 Network Ports: 48 x 10/100/1000 Mbps
- SFP+ Uplink Ports: 4 x SFP+
- SFP+ Speed: 1G / 10Gbps
- RJ45 Console Port: Yes
- Switching Capacity: 176 Gbps
- SDRAM: 512MB
- Flash Memory: 128MB
- MAC Address Table: Up to 32K
- Jumbo Frame: Up to 10K Bytes
- Multicast Groups: Up to 256
- Power Input: 100–240VAC, 50/60Hz
Layer 2 Features
- Spanning Tree: IEEE 802.1D STP, IEEE 802.1w RSTP, MSTP
- Loopback Detection: Supported
- Link Aggregation: IEEE 802.3ad
- VLAN: IEEE 802.1Q VLAN Tagging
- Port-Based VLAN: Supported
- Voice VLAN: Supported
- IGMP Snooping: Supported
- MLD Snooping: Version 1
- Multicast Filtering: Supported
- Flow Control: IEEE 802.3x
- IPv4 DHCP Relay: Supported
- IPv4 DHCP Snooping: Supported
- DHCP Snooping Source MAC Validation: Supported
- ARP Packet Validation: Supported
- Energy Efficient Ethernet: IEEE 802.3az
Layer 3 Features
- Multiple IP Interfaces: Supported
- IPv6 Addresses: Up to 20
- ARP Table: Up to 192 Entries
- IPv4 Static Routes: Up to 63 Entries
- IPv6 Static Routes: Up to 21 Entries
- IPv4 Settings: Supported
- IPv6 Settings: Supported
QoS & Traffic Management
- Priority Queues: 8
- QoS Trust Modes: CoS/802.1p, DSCP, CoS/802.1p-DSCP
- Scheduling: Strict, WRR, Strict + WRR
- Bandwidth Control: Port-Based Ingress and Egress Control
- Voice VLAN: Supported
- CoS Mapping: Supported
Security
- 802.1X Authentication: Supported
- RADIUS Authentication: Supported
- MAC-Based ACL: Supported
- IPv4 / IPv6 ACL: Supported
- ACL Binding: Supported
- Port Security: Up to 256 Entries
- DHCP Snooping: Supported
- ARP Validation: Supported
- Storm Control: Broadcast, Unknown Multicast, and Unknown Unicast
Management
- EnGenius Cloud: Supported
- Standalone Management: Supported
- Local Web GUI: Supported
- HTTP / HTTPS: IPv4 and IPv6
- Command Line Interface: Supported
- SSH Server: Supported
- Telnet Server: Supported
- SNMP: v1, v2c, v3
- RMON: Groups 1, 2, 3, and 9
- TFTP Client: Supported
- Configuration Upgrade / Backup: Supported
- SNTP: Supported
- SYSLOG: Supported
- Zero-Touch Provisioning: Supported through EnGenius Cloud
Environmental & Physical
- Operating Temperature: 0°C to 50°C / 32°F to 122°F
- Operating Humidity: 5% to 95% Non-Condensing
- Width: 440 mm / 17.32 in.
- Depth: 260 mm / 10.24 in.
- Height: 44 mm / 1.73 in.
- Weight: 3.71 kg / 8.18 lb.
- Form Factor: 19-inch 1U Rack-Mountable Switch
Package Includes
- 1 x EnGenius ECS1552 Cloud Managed Gigabit Switch
- 1 x Product Card
- 1 x Power Cord
- 1 x RJ45 Console Cable
- 1 x Rack Mount Kit
Compatibility & Buying Information
Non-PoE Switch: The ECS1552 does not provide Power over Ethernet. Wireless access points, IP cameras, VoIP phones, and other powered network devices require their own power source or a compatible external PoE injector.
Gigabit Access Ports: The 48 RJ45 ports support standard 10/100/1000 Mbps Ethernet connectivity. This model is intended for high-density Gigabit networks rather than 2.5GbE or faster copper edge connections.
10G SFP+ Uplinks: Four SFP+ interfaces support 1G/10Gbps connections for aggregation switches, servers, storage systems, and fiber backbones. Compatible SFP/SFP+ transceivers or DAC cables are required separately.
Layer 2+ Positioning: The ECS1552 combines advanced Layer 2 switching with IPv4 and IPv6 static routing. Networks requiring advanced dynamic routing protocols should use an appropriate full Layer 3 switching platform.
Management Options: The ECS1552 supports centralized EnGenius Cloud management as well as standalone local web and CLI administration.
Best Fit: The ECS1552 is well suited for organizations that need 48 high-density Gigabit ports, four 10G uplinks, centralized cloud management, and advanced Layer 2+ functionality without PoE power delivery.
