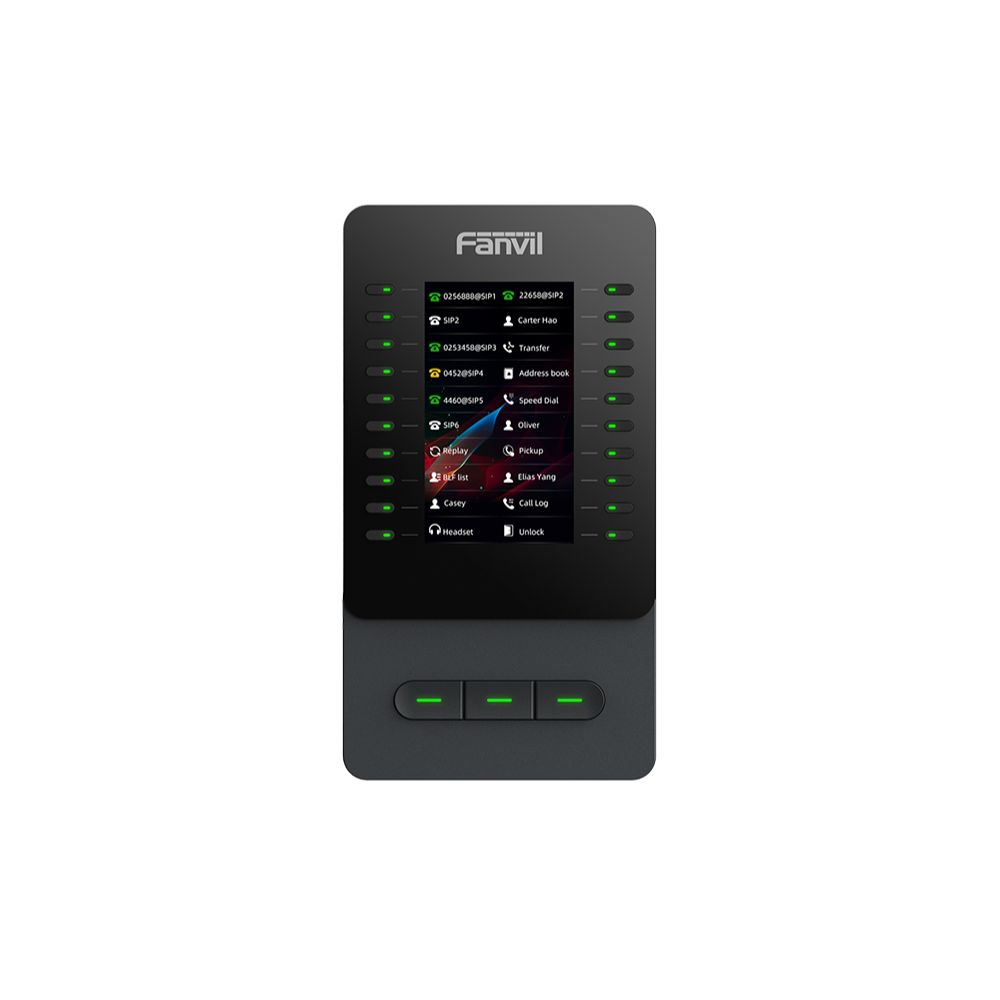

EM60 Color-screen Expansion Module

The Fanvil EM60 is a multifunctional 4.3-inch color-screen expansion module designed for the V65, V66, and V66 Pro IP phones. With 60 programmable DSS keys featuring dual-color LEDs, a USB connection for fast and reliable data transmission, and support for up to four modules in cascade, the EM60 allows receptionists, call attendants, and power users to manage large call volumes with ease and efficiency.

Highlights:

• 4.3-inch 480×272 color screen delivers a rich visual experience
• 20 physical DSS keys per page with dual-color LED indicators
• 3 illuminated page-switch keys for quick access to all 3 pages (total 60 keys)
• Reliable USB connection with fast data refresh
• Supports up to 4 cascaded EM60 modules via USB
• Desktop stand with two adjustable angles: 40° and 45°

Technical Specifications:

Device Functions

• Screen saver support
• User-defined DSS keys
• Supports BLF, speed dial, call park, intercom, conference, forward, group pickup, LDAP, URL, and more
• 3 pages for a total of 60 programmable keys
• USB peripherals supported: USB headset, USB BT dongle, USB Wi-Fi dongle, flash drive, additional EM60 modules
• Cascade modules: 1–2 units require adapter on last stage; 3–4 units require adapter on 2nd & last stage

Physical Specifications

• LCD: 4.3-inch (480×272) color screen
• Keypad: 23 total keys
  • 20 DSS keys (dual-color LED)
  • 3 page-switch keys (dual-color LED)
• Ports:
  • DC port (?5.5×2.1×10mm)
  • Type-C port (connects to phone or cascaded EM60)
  • USB 2.0 Type-A port for peripherals or expansion modules
• Power Adapter: DC 5V / 1A (Input: 100–240VAC, Output: 5V/1A)
• Power Consumption: Idle 1.61W / Peak 2.72W
• Working Temperature: 0°C–45°C
• Working Humidity: 10%–95%
• Installation: Desktop stand
• Color: Dark Grey
• Qty per Carton: 20 pcs
• Net Weight per Carton: 12 kg
• Gross Weight per Carton: 12.5 kg
• Device Dimensions:
  • 40° Stand: 180.4 × 115 × 149.8 mm
  • 45° Stand: 170.3 × 115 × 158.1 mm
• Gift Box Dimensions: 285 × 121.5 × 52 mm
• Outer Carton Dimensions: 515 × 285 × 305 mm
