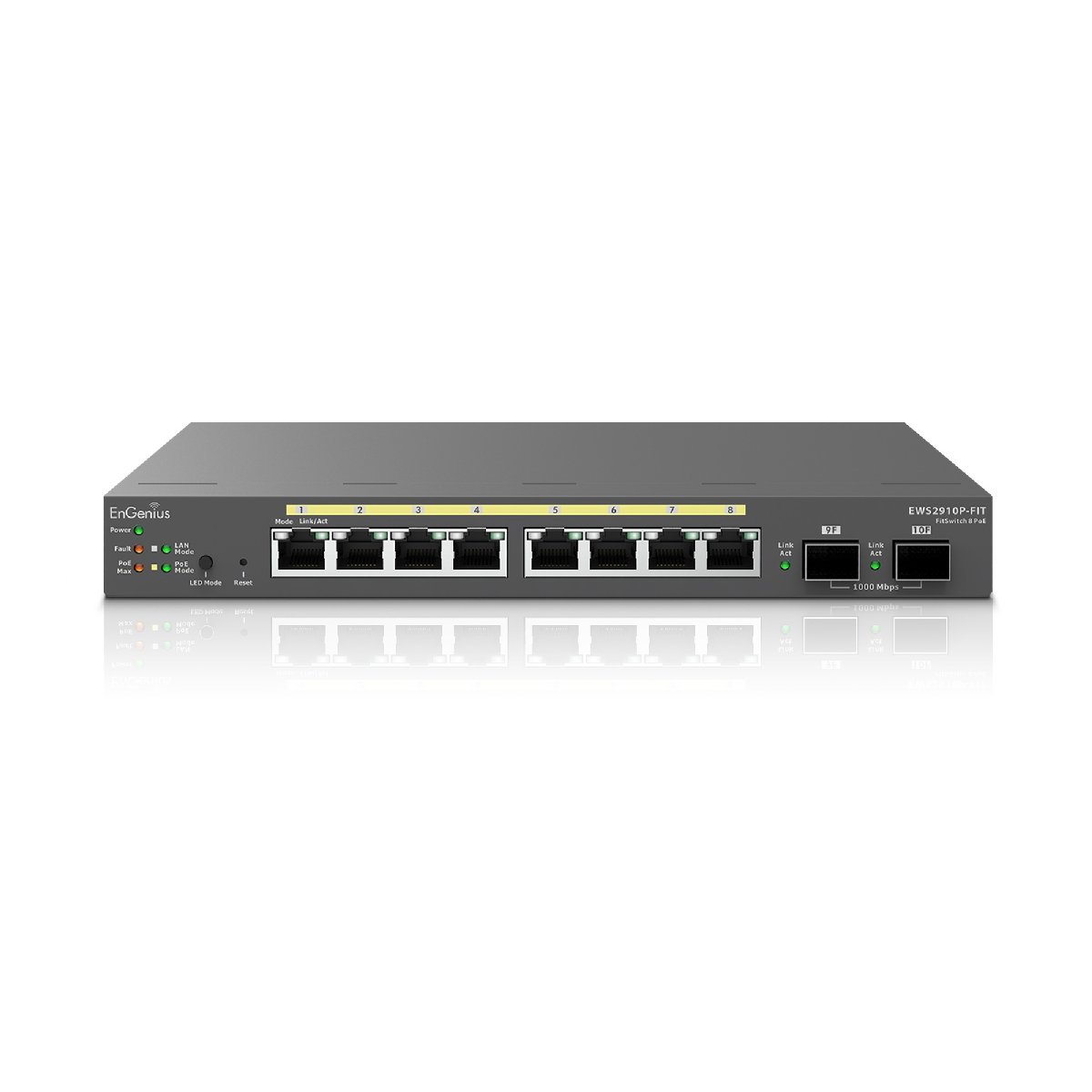

EnGenius EWS2910P-FIT - 55W Gigabit PoE 8 Port Switch
The EnGenius EWS2910P-FIT is a compact Layer 2+ managed Gigabit PoE switch designed for small and midsize business networks that need reliable wired connectivity, PoE power, fiber uplinks, and flexible network management. It provides eight Gigabit Ethernet PoE ports, two Gigabit SFP uplink ports, a 55W total PoE budget, and advanced switching features for connecting and powering wireless access points, IP phones, cameras, and other compatible network devices.
Built for EnGenius Fit deployments, the EWS2910P-FIT supports cloud-based management through FitXpress, on-premises management through FitController, and standalone management. Layer 2+ capabilities including VLANs, Voice VLAN, spanning tree, link aggregation, access control lists, 802.1X authentication, IGMP and MLD snooping, QoS, DHCP snooping, port security, and network monitoring make it a versatile managed switch for professional SMB networks.
Key Features
- Eight 10/100/1000 Mbps Gigabit Ethernet PoE ports
- Two Gigabit SFP uplink ports for fiber or compatible SFP connectivity
- 55W total PoE power budget
- Layer 2+ managed switching for business networks
- Flexible FitXpress cloud, FitController on-premises, or standalone management
- Zero-touch provisioning simplifies multi-device deployments
- Remote network monitoring, configuration, and troubleshooting
- IEEE 802.1Q VLAN tagging and port-based VLAN support
- Voice VLAN optimizes deployment of VoIP phones and voice traffic
- IEEE 802.1X and RADIUS authentication support
- Port-based and MAC-based access control lists
- DHCP snooping and DoS attack prevention
- IGMP and MLD snooping for efficient multicast traffic management
- Spanning Tree, Rapid Spanning Tree, and Multiple Spanning Tree support
- IEEE 802.3ad link aggregation
- QoS, bandwidth control, CoS, DSCP mapping, and storm control
- 9K jumbo frame support
- 8K MAC address table
- Compact desktop form factor
Applications & Use Cases
- Small and midsize business networks
- EnGenius Fit wireless access point deployments
- Powering compatible PoE and PoE+ wireless access points
- VoIP phone and unified communications networks
- IP camera and surveillance deployments within the available PoE budget
- Office and professional-service networks
- Retail stores and restaurants
- Schools and small educational facilities
- Hospitality and guest-network environments
- Branch offices and remote business locations
- Networks requiring VLAN segmentation and traffic prioritization
- Deployments requiring Gigabit SFP uplinks
- Businesses that prefer cloud, on-premises, or standalone switch management
Technical Specifications
Switching & Ports
- Manufacturer: EnGenius
- Model: EWS2910P-FIT
- Product Type: Layer 2+ Managed PoE Switch
- Ethernet Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet
- SFP Uplink Ports: 2 x Gigabit SFP
- Ethernet Standards: IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T
- Flow Control: IEEE 802.3x Full-Duplex Flow Control
- MAC Address Table: 8K
- Jumbo Frame: Up to 9K
- Multicast Groups: Up to 256
- Port Security Entries: Up to 256
PoE & Power
- PoE-Capable Ports: Ports 1-8
- PoE Standards: IEEE 802.3af/at PoE+
- Total PoE Budget: 55W
- Power Source: 100-240VAC, 50/60Hz
- Power Adapter: Included
Hardware
- SDRAM: 256MB
- Flash Memory: 32MB
- Form Factor: Desktop
- System Indicators: Power, Fault, PoE Max, LAN Mode, PoE Mode
- Port Indicators: Link / Activity / Speed
Layer 2 & Layer 2+ Features
- VLAN: IEEE 802.1Q VLAN Tagging
- Port-Based VLAN: Supported
- Voice VLAN: Supported
- Spanning Tree: IEEE 802.1D STP
- Rapid Spanning Tree: RSTP Supported
- Multiple Spanning Tree: MSTP Supported
- Link Aggregation: IEEE 802.3ad
- Loopback Detection: Supported
- IGMP Snooping: Supported
- MLD Snooping: Supported
- DHCP Snooping: Supported
- DHCP Relay: Supported
- Static Routing: Supported
- Port Isolation: Supported
- Port Mirroring: Supported
- LLDP: Supported
- Energy Efficient Ethernet: Supported
Security & Traffic Management
- Access Control Lists: Port-Based and MAC-Based ACL Support
- IPv4 / IPv6 ACL: Supported
- 802.1X Authentication: Supported
- RADIUS Authentication: Supported
- DHCP Snooping: Supported
- DoS Attack Prevention: Supported
- Storm Control: Supported
- QoS: Supported
- CoS Mapping: Supported
- DSCP Mapping: Supported
- Bandwidth Control: Supported
- Multicast Filtering: Supported
Management
- Cloud Management: EnGenius FitXpress
- On-Premises Management: EnGenius FitController
- Standalone Management: Supported
- Zero-Touch Provisioning: Supported
- Remote Monitoring: Supported
- Remote Configuration: Supported
- SNMP: v1 / v2c / v3
- RMON: Groups 1, 2, 3, and 9
- Web Management: HTTP / HTTPS
- Command Line Interface: Supported
- SSH: Supported
Environmental & Physical
- Operating Temperature: 32°F to 104°F / 0°C to 40°C
- Operating Humidity: 5% to 95%, Non-Condensing
- Dimensions: 9.44 x 4.13 x 1.06 in. / 240 x 105 x 27 mm
- Weight: 1.36 lb. / 620 g
- Certifications: FCC, CE, IC
Package Includes
- 1 x EnGenius EWS2910P-FIT Managed Gigabit PoE Switch
- 1 x Power Adapter
- 1 x Power Cord
- 1 x Wall-Mount Kit
- 1 x Rubber Feet Cushion Set
- 1 x Product Card
Compatibility & Buying Information
55W Total PoE Budget: The switch provides a shared 55W PoE power budget across its eight powered Ethernet ports. Before deployment, add the maximum power requirements of all connected PoE devices to confirm that their combined demand remains within the available budget.
Eight Copper Ports Plus Two SFP Uplinks: The EWS2910P-FIT provides eight Gigabit RJ45 ports for network devices and two additional Gigabit SFP slots for compatible fiber or copper SFP transceivers. SFP modules are selected separately based on the required media type and distance.
Fit Management Options: The EWS2910P-FIT can be managed through EnGenius FitXpress for cloud-based administration, FitController for on-premises management, or its standalone management interface. This gives businesses flexibility to choose the management model that fits their network.
Designed for SMB Networks: This compact Layer 2+ switch is well suited for smaller business deployments that need managed switching and PoE without moving to a larger 24-port or 48-port platform.
PoE Planning: The available 55W budget makes the EWS2910P-FIT suitable for a group of lower-power access points, IP phones, cameras, and other compatible powered devices. Higher-power or larger deployments may require a Fit switch with a larger total PoE budget.
Gigabit SFP Uplinks: The two SFP slots operate at Gigabit speeds. Buyers requiring 10 Gigabit SFP+ uplinks should select a switch designed with SFP+ connectivity.
