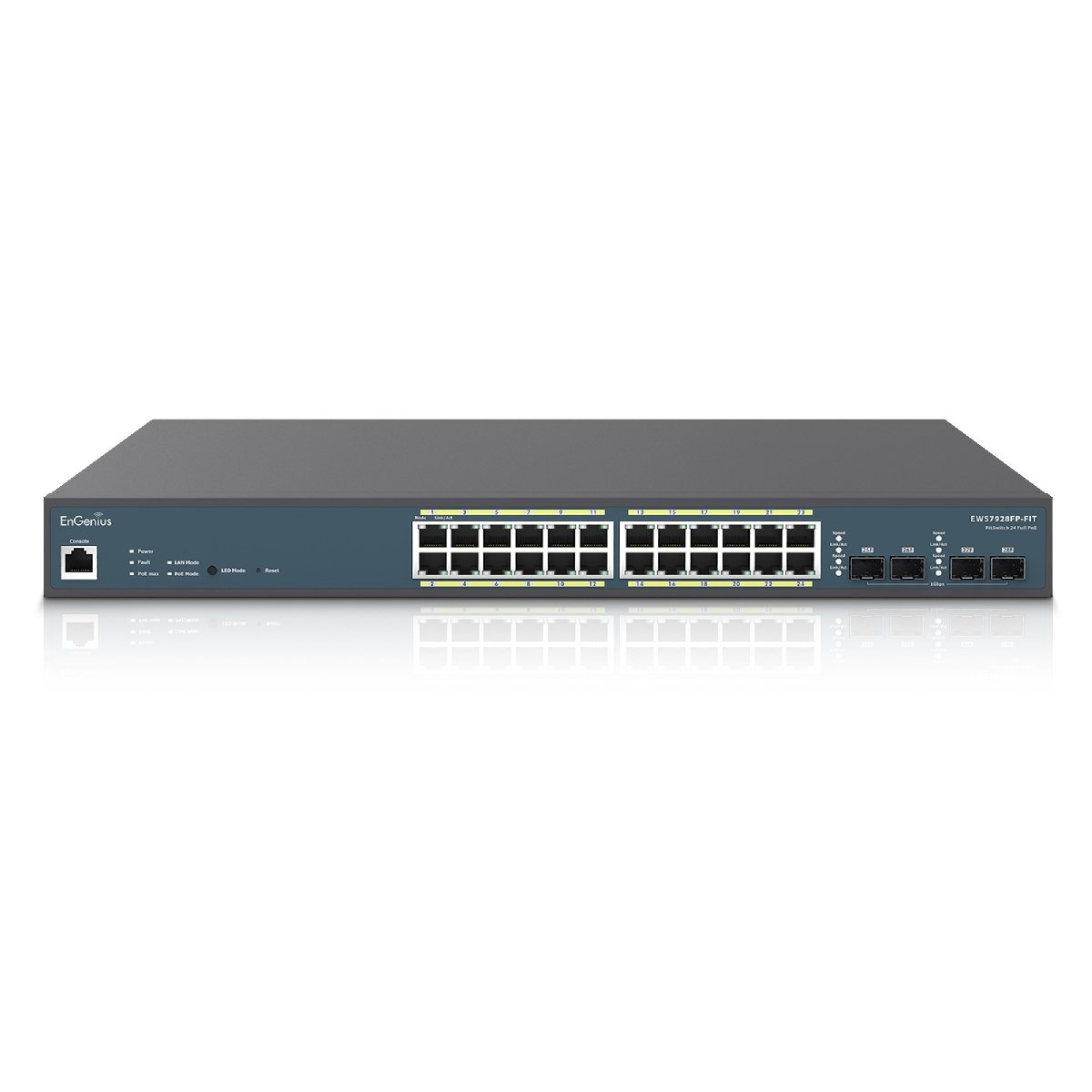

EnGenius EWS7928FP-FIT - 410W PoE+ 24 Port Gigabit Switch
The EnGenius EWS7928FP-FIT is a 24-port Layer 2+ managed Gigabit PoE+ switch built for small and midsize business networks that need high PoE capacity, centralized management, and reliable wired performance. It provides 24 Gigabit Ethernet PoE+ ports, four Gigabit SFP uplink ports, and a 410W total PoE power budget for powering compatible wireless access points, VoIP phones, IP cameras, and other network devices.
Designed for EnGenius Fit environments, the EWS7928FP-FIT combines a 56 Gbps switching capacity with VLANs, Voice VLAN, link aggregation, spanning tree, multicast management, access control lists, 802.1X authentication, DHCP snooping, QoS, port security, and other business-class networking features. It supports EnGenius FitXpress cloud management, FitController on-premises management, and standalone administration for flexible deployment and monitoring.
Key Features
- 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
- 4 x Gigabit SFP uplink ports
- IEEE 802.3af/at PoE+ support on all 24 Gigabit Ethernet ports
- 410W total PoE power budget
- 56 Gbps switching capacity
- Layer 2+ managed switching for business networks
- EnGenius FitXpress cloud management
- EnGenius FitController on-premises management
- Standalone local web management
- Zero-touch provisioning and centralized monitoring
- IEEE 802.1Q VLAN tagging and port-based VLAN support
- Voice VLAN for optimized voice and video traffic
- IEEE 802.3ad link aggregation
- STP, RSTP, and MSTP spanning tree support
- IGMP and MLD snooping
- 802.1X and RADIUS authentication
- Port-based and MAC-based access control lists
- DHCP snooping and DoS attack prevention
- Advanced QoS and traffic prioritization
- 9K jumbo frame support
- 8K MAC address table
- 19-inch 1U rack-mountable design
Applications & Use Cases
- Small and midsize business networks
- EnGenius Fit wireless access point deployments
- Powering multiple PoE and PoE+ wireless access points
- IP camera and video surveillance networks
- VoIP phone and unified communications systems
- Office buildings and professional-service environments
- Retail stores and commercial locations
- Restaurants and hospitality networks
- Schools and educational facilities
- Branch offices and distributed business locations
- Networks requiring VLAN segmentation and traffic prioritization
- Rack-mounted communications closets
- Deployments requiring Gigabit SFP uplinks
- Businesses requiring cloud, on-premises, or standalone network management
- Higher-density PoE deployments requiring substantially more power than a 240W switch
Technical Specifications
Switching & Ports
- Manufacturer: EnGenius
- Model: EWS7928FP-FIT
- Product Type: Layer 2+ Managed Gigabit PoE+ Switch
- Gigabit Ethernet Ports: 24 x 10/100/1000 Mbps RJ45
- SFP Uplink Ports: 4 x Gigabit SFP
- Switching Capacity: 56 Gbps
- Maximum Packet Forwarding Rate: 41.664 Mpps
- MAC Address Table: 8K
- Jumbo Frame Size: Up to 9K
- Packet Buffer Memory: 512 KB
- Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab
- Flow Control: IEEE 802.3x Full-Duplex Flow Control
PoE & Power
- PoE-Capable Ports: Ports 1-24
- PoE Standards: IEEE 802.3af/at PoE+
- Total PoE Budget: 410W
- Full-Load Power Consumption: 470.5W
- Power Source: 100-240VAC, 50/60Hz
Hardware & Indicators
- SDRAM: 256MB
- Flash Memory: 32MB
- System LEDs: Power, Fault, PoE Max, LAN Mode, PoE Mode
- Ethernet Port LEDs: Link / Activity / Speed
- SFP Port LEDs: Link / Activity / Speed
- Console Port: 1 x RJ45 Console Port
- Form Factor: 19-Inch 1U Rack-Mountable
Layer 2 & VLAN Features
- VLAN: IEEE 802.1Q VLAN Tagging
- Port-Based VLAN: Supported
- Voice VLAN: Supported
- Spanning Tree: STP / RSTP / MSTP
- Link Aggregation: IEEE 802.3ad LACP
- IGMP Snooping: Supported
- MLD Snooping: Supported
- Port Isolation: Supported
- Port Mirroring: Supported
- Loopback Detection: Supported
- LLDP: Supported
Security & Traffic Management
- Access Control Lists: Port-Based and MAC-Based ACL Support
- 802.1X Authentication: Supported
- RADIUS Authentication: Supported
- DHCP Snooping: Supported
- DoS Attack Prevention: Supported
- Storm Control: Supported
- Port Security: Supported
- QoS: Supported
- CoS / 802.1p: Supported
- DSCP: Supported
- Ingress and Egress Bandwidth Control: Supported
Management
- Cloud Management: EnGenius FitXpress
- On-Premises Management: EnGenius FitController
- Standalone Management: Local Web GUI
- Zero-Touch Provisioning: Supported
- Remote Monitoring: Supported
- Remote Configuration: Supported
- SNMP: Supported
- Web Management: HTTP / HTTPS
- Command Line Interface: Supported
- SSH: Supported
- Configuration Backup & Upgrade: Supported
Environmental & Physical
- Operating Temperature: 32°F to 122°F / 0°C to 50°C
- Storage Temperature: -4°F to 158°F / -20°C to 70°C
- Humidity: 5% to 95%, Non-Condensing
- Dimensions: 17.32 x 10.24 x 1.73 in. / 440 x 260 x 44 mm
- Weight: 8.38 lb. / 3.8 kg
Compatibility & Buying Information
410W Total PoE Budget: The EWS7928FP-FIT provides a shared 410W PoE budget across its 24 powered Gigabit Ethernet ports. The combined power requirements of all connected PoE devices must remain within the total available budget.
Higher-Power 24-Port Option: Compared with a 240W 24-port PoE+ switch, the EWS7928FP-FIT provides substantially more available PoE capacity for deployments with larger numbers of access points, cameras, VoIP phones, or other powered devices.
Four Gigabit SFP Uplinks: The four SFP slots provide uplink flexibility using compatible Gigabit SFP transceivers. SFP modules are selected separately based on the required fiber type, connector, and link distance.
Gigabit SFP, Not SFP+: The uplink interfaces operate at Gigabit speeds. Networks requiring 10 Gigabit uplinks should select a switch equipped with SFP+ ports.
Flexible Fit Management: The EWS7928FP-FIT can be managed through EnGenius FitXpress for cloud-based administration, FitController for on-premises management, or its standalone local web interface.
Rack-Mount Deployment: The switch uses a standard 19-inch 1U rack-mount form factor, making it suitable for network racks and communications cabinets in offices, schools, hospitality properties, retail environments, and other business installations.
