Fanvil EX101 I61 Flush Mount Accessory
The Fanvil EX101 is a flush-mount accessory kit designed specifically for the Fanvil i61 SIP video door phone. It allows the i61 to be recessed into the installation surface for a cleaner, lower-profile appearance at apartment entrances, offices, commercial buildings, communities, and other access-control locations.

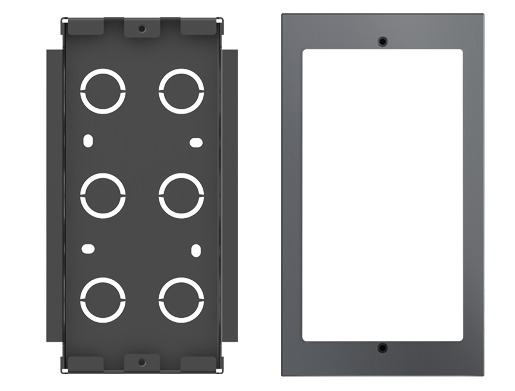

The EX101 includes a durable aluminum-alloy frame panel and SGCC steel brick box engineered around the dimensions of the Fanvil i61. Designed for permanent flush-mounted installations, the kit provides a purpose-built alternative to the i61's standard surface-mount configuration while maintaining a professional finished appearance.
Key Features
- Designed for Fanvil i61: Purpose-built flush-mount accessory for the Fanvil i61 SIP video door phone.
- Recessed Installation: Allows the i61 to sit partially within the wall or mounting surface for a cleaner installation.
- Complete Flush-Mount Assembly: Includes both the exterior frame panel and recessed brick box required for the EX101 mounting system.
- Aluminum-Alloy Frame: Exterior frame panel provides a durable finished surround for the installed i61.
- SGCC Brick Box: Recessed steel enclosure provides structural support behind the mounting surface.
- Space-Saving Design: Reduces the amount of the door phone projecting from the wall compared with a standard surface-mounted installation.
- Wide Temperature Range: Designed for operating environments from -40°C to +70°C.
Applications & Use Cases
- Apartment Entrances: Provides a cleaner recessed installation for Fanvil i61 door phones at residential entry points.
- Commercial Buildings: Supports professional flush-mounted i61 installations at controlled doors and visitor entrances.
- Office Entry Systems: Helps integrate the i61 more closely with finished walls, vestibules, and reception entrances.
- Community & Residential Projects: Suitable for projects where a lower-profile door-phone installation is preferred over surface mounting.
- New Construction: Brick-box installation can be planned into the wall during construction for a clean finished appearance.
- Access-Control Projects: Provides the mechanical mounting hardware needed when the i61 is specified as a flush-mounted SIP door phone.
Technical Specifications
Compatibility
- Accessory Model: EX101
- Compatible Door Phone: Fanvil i61
- Installation Type: Flush-mounted
Frame Panel
- Dimensions: 199.7 × 112 × 3 mm
- Material: Aluminum alloy
- Weight: Approximately 70.2 g
Brick Box
- Dimensions: 182.3 × 108.6 × 50.3 mm
- Material: SGCC
- Weight: Approximately 400.1 g
Environment
- Operating Temperature: -40°C to +70°C
Package Includes
- Frame Panel: 1 × Fanvil EX101 aluminum-alloy frame panel
- Brick Box: 1 × Fanvil EX101 SGCC recessed mounting box
Compatibility & Buying Information
- Exact Compatibility: Designed specifically for the Fanvil i61 SIP video door phone.
- Door Phone Not Included: The EX101 is the flush-mount accessory only; the Fanvil i61 must be purchased separately.
- Installation Type: Use the EX101 when the i61 needs to be recessed into the wall rather than surface mounted.
- Related Accessory: Fanvil i62, i63, and i64 models use the EX102 flush-mount kit instead of the EX101.
- Installation Planning: Confirm wall depth and available installation space for the 182.3 × 108.6 × 50.3 mm brick box before cutting or preparing the mounting surface.
- System Function: The EX101 is a mechanical mounting accessory and does not add SIP, power, networking, access-control, or camera functionality to the i61.
Setup Video
Manufacturer
FANVIL
Warranty
12 MONTH
Condition
NEW
