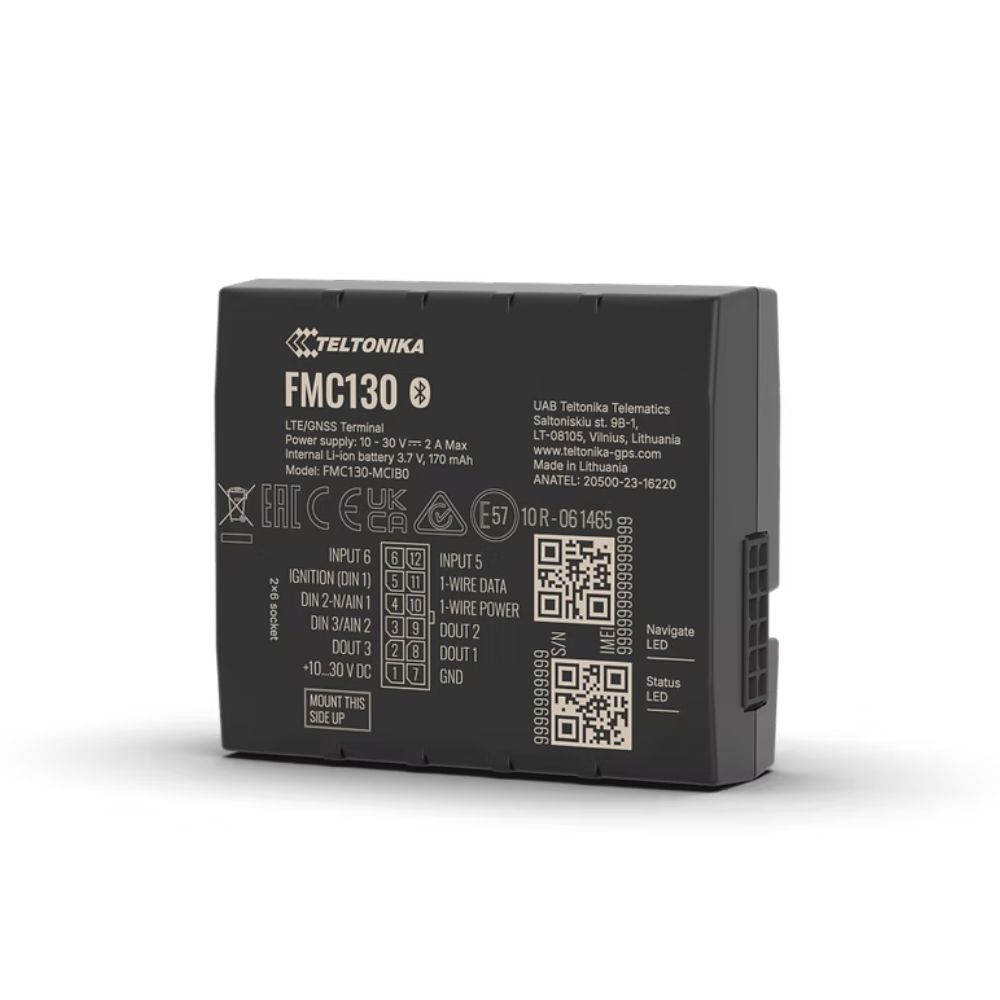

Teltonika FMC130 Advanced LTE Cat 1 GNSS Tracking Terminal

The Teltonika FMC130 is an advanced LTE Cat 1 GNSS tracking terminal designed for professional fleet management, vehicle telematics, logistics, trailer tracking, refrigerated transport monitoring, and connected mobility applications. Featuring flexible input configuration, Bluetooth connectivity, CAN Bus integration support, and advanced tracking functionality, the FMC130 delivers reliable real-time vehicle monitoring across a wide range of transportation environments.

Built with LTE Cat 1 connectivity and fallback 2G support, the FMC130 provides dependable communication for international fleet deployments and commercial vehicle operations. The device supports multiple tracking and monitoring scenarios including driver behavior analysis, fuel monitoring, immobilization, towing detection, crash detection, geofencing, and remote device management.

FMC130 Features:

• Advanced LTE Cat 1 GNSS tracking terminal designed for fleet management and vehicle telematics
• Reliable LTE Cat 1 connectivity with 2G GSM fallback support for stable communication coverage
• Integrated Bluetooth 4.0 + LE support for BLE sensors, beacons, and wireless peripherals
• Supports light vehicles, heavy-duty transport, trailers, refrigerated transport, car sharing, and international logistics applications
• Supports GNSS positioning using GPS, GLONASS, GALILEO, BEIDOU, QZSS, and AGPS
• High-accuracy GNSS tracking with tracking sensitivity up to -165 dBm and positioning accuracy under 3 meters
• Flexible I/O configuration with digital inputs, digital outputs, analog inputs, CAN adapter support, and 1-Wire interface
• Supports advanced telematics and fleet management scenarios including crash detection, towing detection, geofencing, excessive idling detection, and immobilizer functionality
• Compatible with fuel monitoring solutions including LV-CAN200, ALL-CAN300, OBDII dongles, and CAN-CONTROL devices
• Integrated accelerometer for driver behavior monitoring and event detection
• Remote device management and firmware updates supported through FOTA Web, SMS, Bluetooth, and Teltonika Configurator
• Supports Micro-SIM and eSIM configurations for flexible deployment options
• Internal high-gain GNSS and LTE antennas simplify installation and improve deployment flexibility
• Multiple sleep modes help optimize power consumption for long-term vehicle monitoring deployments
• Built-in backup battery ensures continued operation during temporary power interruptions
• Ideal for fleet operators, logistics providers, transportation companies, telematics integrators, and IoT deployments

Key Connectivity Features:

• LTE Cat 1 and GSM network support
• Bluetooth 4.0 + Low Energy connectivity
• SMS and GPRS command support
• CAN adapter integration support
• USB 2.0 Micro-USB interface
• Micro-SIM and eSIM compatibility

Supported Fleet Management Scenarios:

• Green driving and driver behavior monitoring
• Over-speeding detection
• Crash and towing detection
• Vehicle immobilization
• Excessive idling detection
• Fuel monitoring and fuel usage tracking
• Trip tracking and reporting
• Automatic and manual geofencing
• Refrigerated transport monitoring
• Trailer and cargo tracking

Technical Specifications:

• LTE Cat 1 and GSM connectivity support
• GNSS Support: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Tracking Sensitivity: -165 dBm
• Position Accuracy: < 3 m
• Input Voltage Range: 10-30 V DC with overvoltage protection
• Backup Battery: 170 mAh Li-Ion battery
• Bluetooth Version: 4.0 + LE
• Digital Inputs: 3
• Digital Outputs: 3
• Analog Inputs: 2
• CAN Adapter Inputs: 1
• 1-Wire Interface: 1
• Internal Flash Memory: 128 MB
• Ingress Protection Rating: IP41
• Dimensions: 65 x 56 x 20.6 mm
• Weight: 55 g

Supported Bluetooth Peripherals:

• Temperature and humidity sensors
• OBDII dongles
• BLE sensors and beacons
• Inateck barcode scanners
• Universal Bluetooth Low Energy sensors

The Teltonika FMC130 combines advanced LTE connectivity, flexible I/O support, Bluetooth integration, and GNSS tracking capabilities into a compact telematics platform optimized for modern fleet management and connected transportation applications.
