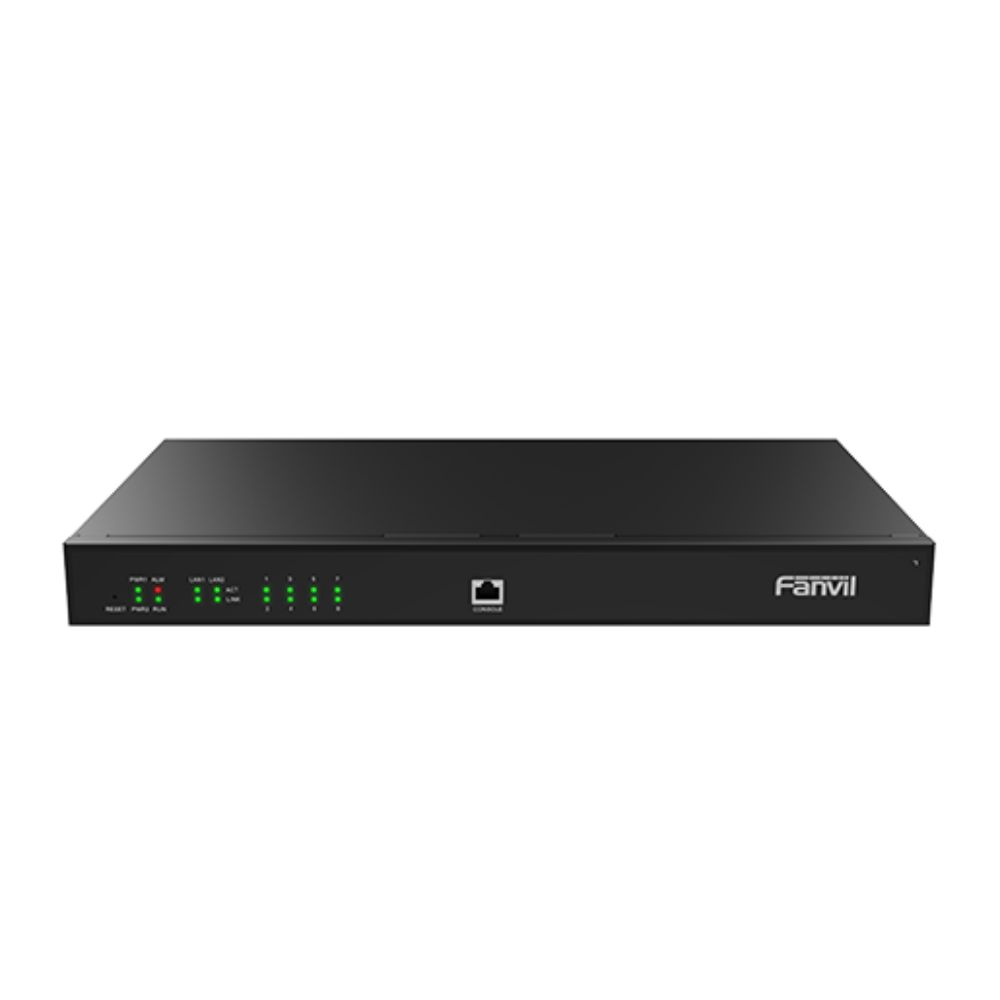

Fanvil GA200-8E Digital VoIP Gateway

The Fanvil GA200-8E is a carrier-grade digital VoIP gateway designed to connect traditional PSTN and enterprise telephony infrastructure with modern SIP-based IP communications platforms. Featuring 8 E1/T1 interfaces and support for up to 120 concurrent voice calls, the GA200-8E provides a scalable and cost-effective solution for service providers, IP PBX deployments, contact centers, and multi-site enterprise communications environments.

Built on a POWERPC and DSP hardware architecture with an embedded Linux operating system, the GA200-8E delivers reliable voice processing, protocol interoperability, and high system availability. The gateway supports seamless call conversion between TDM and IP networks, SIP trunk integration, IMS registration, multiple server registration, and compatibility with SS1, SS7, ISDN, and SIP signaling protocols. Advanced features such as E1 hot standby, carrier-grade redundant power inputs, and hardware watchdog monitoring help ensure continuous operation in mission-critical voice deployments.

Designed for MSPs, telecom carriers, system integrators, and enterprise IT teams, the Fanvil GA200-8E simplifies migration from legacy telephony systems while maintaining interoperability with existing infrastructure. With Gigabit networking, VPN support, advanced routing capabilities, centralized management options, and support for T.38 fax transmission, the GA200-8E offers a flexible and reliable platform for digital trunking and VoIP modernization projects.

Fanvil GA200-8E Features:

• Digital VoIP gateway with 8 E1/T1 interfaces
• Supports up to 120 concurrent voice calls
• Seamless call conversion between TDM and IP networks
• POWERPC and DSP hardware architecture
• Embedded Linux operating system
• Supports SIP and IMS registration
• Primary and backup SIP server registration support
• Supports SS1, SS7, ISDN, SIP v1.0, SIP v2.0, and RFC3261 protocols
• E1 hot standby support for enhanced reliability
• SIP trunk group and PCM trunk group routing
• Supports T.38 and T.30 fax transmission
• Acoustic Echo Cancellation (AEC)
• Call filtering with whitelist, blacklist, and number pool support
• Number transformation and routing capabilities
• Master and slave clock configuration support
• Dual adaptive Gigabit Ethernet ports
• IPv4 and IPv6 networking support
• VPN client support
• Built-in firewall and NAT traversal support
• TLS and SRTP encryption support
• Web-based management and configuration
• Firmware upgrade and remote maintenance capabilities
• Centralized third-party management support
• Hardware watchdog and daemon process monitoring for high availability
• Carrier-grade redundant power input design
• Level 4 lightning protection

Ideal Applications:

• SIP trunking and VoIP migration projects
• Carrier and telecom service provider deployments
• IP PBX and unified communications environments
• Contact centers and call centers
• Multi-branch enterprise voice networks
• PSTN-to-SIP network integration
• Legacy PBX modernization initiatives
• Government and public sector communications
• Hospitality and large campus telephony systems
• Business continuity and redundant voice infrastructure deployments
• Managed voice services and hosted communications platforms
• Digital trunk aggregation and routing applications

Technical Specifications:

• 8 x E1/T1 digital trunk interfaces
• Supports up to 120 concurrent voice calls
• POWERPC and DSP processing architecture
• Embedded Linux operating system
• 2 x Adaptive 10/100/1000 Mbps Gigabit Ethernet ports
• 2 x Power input ports for redundant power configuration
• 1 x Console port
• Supports SIP, IMS, SS1, SS7, ISDN, and RFC3261 signaling protocols
• Supported codecs: G.711A, G.711U, G.723, G.729, G.722, iLBC, AMR, SILK, and Opus
• Supports T.38 and T.30 fax protocols
• DTMF support via In-Band, RFC2833, and SIP INFO
• IPv4 and IPv6 networking support
• VPN client support
• Protocols supported: TCP, UDP, HTTP, HTTPS, DNS, NTP, TFTP, TELNET, STUN, TLS, SRTP, SIP/IMS, and SNMP
• Power consumption: <20W
• Lightning protection: Level 4
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 85°C
• Operating humidity: 8% to 90% non-condensing
• Dimensions: 440 x 44 x 267 mm
• Product weight: 3.4 kg
• Web-based administration and centralized management support
