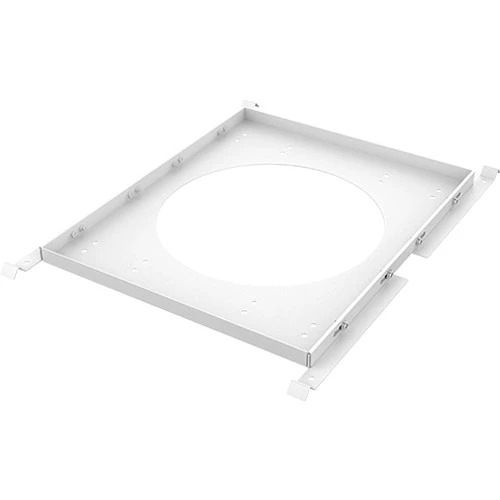

Grandstream GSC3506 CB - Ceiling Mounting Bracket
The Grandstream GSC3506-CB is an optional ceiling mounting kit designed for secure installation of the Grandstream GSC3506 V2 SIP/Multicast Paging Speaker. It provides the dedicated bracket and mounting hardware needed when the speaker is installed in ceiling applications that require the optional support bracket.
Designed for professional paging, announcement, and audio deployments, the bracket provides an installation option for ceiling materials that need additional mounting support. The kit works with the GSC3506 V2 installation method documented by Grandstream and includes the bracket and required M4 mounting screws.
Key Features
- Dedicated Ceiling Mount: Designed for ceiling installation of the Grandstream GSC3506 V2 SIP/Multicast Paging Speaker.
- Optional Mounting Solution: Provides additional support for installations where Grandstream's optional ceiling bracket mounting method is appropriate.
- Installation Hardware Included: Grandstream documentation identifies the ceiling-mount kit as including the bracket and eight M4 screws.
- Professional Installation: Supports clean, secure speaker placement in commercial paging and announcement environments.
- Grandstream Accessory: Designed around the documented GSC3506 V2 mounting system for proper fit and installation.
Applications & Use Cases
- Commercial Paging: Supports ceiling-mounted GSC3506 V2 speakers used for voice paging and facility announcements.
- Offices & Corporate Facilities: Provides a mounting option for integrated ceiling speaker installations in business environments.
- Schools & Educational Facilities: Suitable for supported paging-speaker installations in classrooms, hallways, and common areas.
- Retail & Hospitality: Helps support discreet overhead paging and announcement installations.
- Warehouses & Facilities: Provides an installation option for centrally positioned paging speakers in compatible ceiling structures.
Technical Specifications
Product & Compatibility
- Product Type: Ceiling mounting bracket kit
- Manufacturer: Grandstream
- Model: GSC3506-CB
- Documented Compatibility: Grandstream GSC3506 V2
- Installation Type: Ceiling mounting
Installation
- Speaker Cutout: GSC3506 V2 installation uses an approximately 230 mm round ceiling opening
- Mounting Hardware: 8 × M4 screws documented with the optional ceiling-mount kit
- Installation Method: Bracket is secured above the ceiling before the speaker is positioned and fastened in place
- Recommended Use: Grandstream identifies bracket mounting as an option when the ceiling material is thin and requires additional support for the GSC3506 V2
Package Includes
- Ceiling Bracket: 1 × Grandstream GSC3506 V2 ceiling bracket
- Mounting Screws: 8 × M4 screws
Compatibility & Buying Information
- Exact Model: This listing is for the Grandstream GSC3506-CB ceiling mounting bracket accessory; the GSC3506 V2 speaker is sold separately.
- Verified Compatibility: Current Grandstream documentation specifically identifies the optional ceiling bracket kit for the GSC3506 V2.
- Original GSC3506: The supplied ceiling-bracket document is specifically for the GSC3506 V2. Compatibility with the original non-V2 GSC3506 should not be assumed without confirmation.
- When to Use: Grandstream recommends the optional bracket method when the ceiling material is thin and requires additional support for the speaker installation.
- Speaker Not Included: This product is the ceiling mounting accessory only and does not include a GSC3506 V2 speaker.
Manufacturer
GRANDSTREAM
Manufacturer Part
GSC3506-CB
Warranty
12 MONTH
UPC
6947273704812
Condition
NEW
