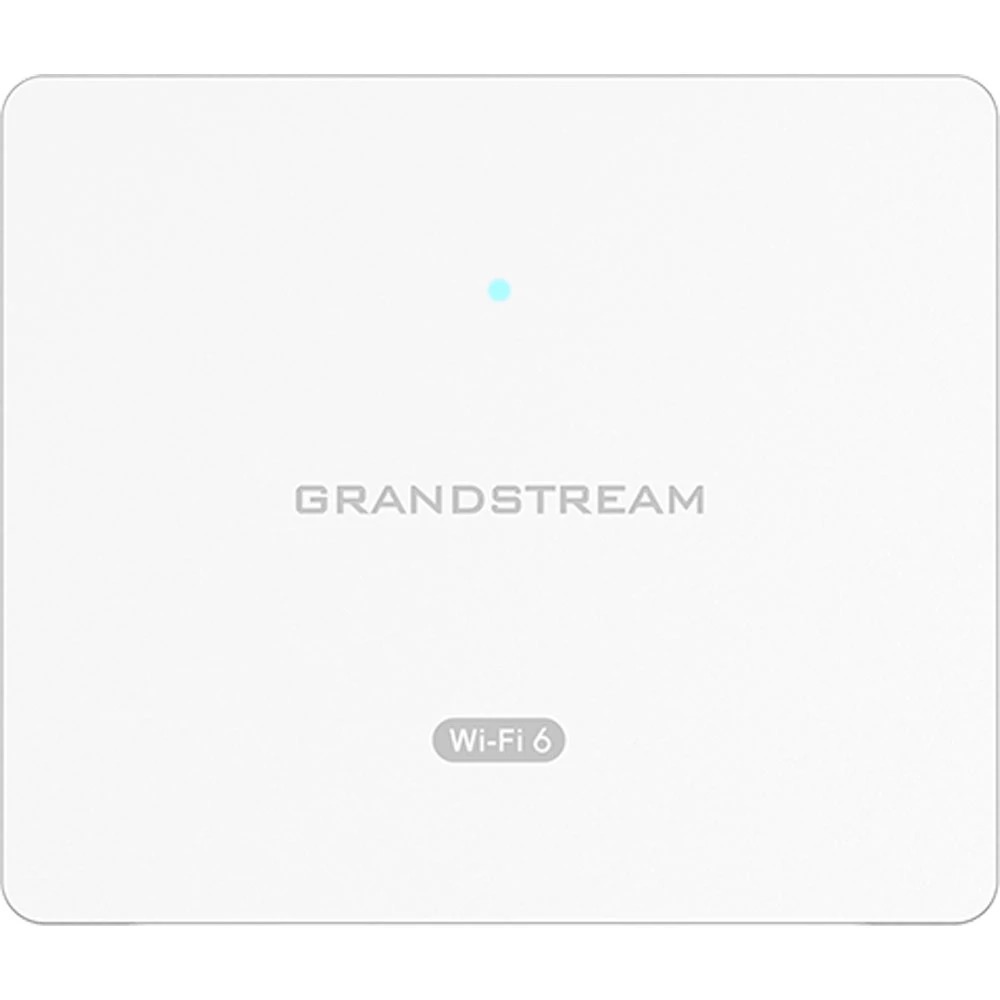

Grandstream GWN7604 Wi-Fi 6 Access Point with Integrated GigE Switch
The Grandstream GWN7604 is a compact AX3000 Wi-Fi 6 access point with an integrated Gigabit Ethernet switch, designed to bring high-speed wireless connectivity and flexible wired networking to small businesses, hotels, home offices, and other professional indoor environments. It combines up to 3 Gbps of aggregate wireless throughput with dual-band MU-MIMO, support for up to 256 concurrent Wi-Fi clients, and coverage of up to 100 meters.
Built for deployments that need more than a traditional access point, the GWN7604 includes four Gigabit Ethernet ports, including a PoE/PoE+ uplink and two PSE ports that can provide both network connectivity and PoE power to compatible downstream devices. Advanced QoS, mesh networking, captive portal support, WPA3 security, and flexible management through the built-in controller, GDMS Networking, or GWN Manager make it well suited to MSPs, hospitality networks, offices, and distributed business installations.
Key Features
- AX3000 Wi-Fi 6: Delivers up to approximately 3 Gbps of aggregate wireless throughput across the 2.4 GHz and 5 GHz bands.
- Integrated Gigabit Switch: Four Gigabit Ethernet ports provide both wireless access and additional wired connectivity from a single compact device.
- PoE/PoE+ Powered: The Gigabit uplink port supports IEEE 802.3af/802.3at PoE for simplified installation without a separate local power adapter.
- Dual PSE Ports: Two Gigabit Ethernet ports can provide network connectivity and PoE power to compatible downstream devices with a shared 12W PSE power budget.
- Up to 256 Clients: Supports dense small-business, hospitality, and professional Wi-Fi environments with up to 256 concurrent wireless clients.
- Up to 100-Meter Coverage: Internal antennas provide coverage of up to 100 meters in suitable environments.
- Dual-Band MU-MIMO: Supports 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO operation for efficient multi-client performance.
- 160 MHz Channel Support: The 5 GHz radio supports channel widths up to 160 MHz for compatible high-throughput Wi-Fi 6 clients.
- Advanced QoS: 802.11e/WMM, VLAN, and TOS support help prioritize latency-sensitive applications such as voice and video.
- Mesh Networking: Supports Grandstream mesh networking for flexible wireless deployments and expanded coverage.
- Enterprise Security: Supports WPA3, secure boot, digital signatures, unique security certificates, and randomized default passwords.
- Flexible Management: Manage locally through the embedded controller or centrally with GDMS Networking or GWN Manager.
Applications & Use Cases
- Small Business Networks: Combines Wi-Fi 6 coverage and additional Gigabit Ethernet connectivity in offices where space and cabling flexibility matter.
- Hotels & Hospitality: Supports guest Wi-Fi, captive portal deployments, and wired endpoint connectivity from a single access point.
- Home Offices: Provides high-speed wireless coverage while adding Ethernet connectivity for phones, computers, printers, or other network devices.
- MSP Deployments: Centralized cloud or on-premise management helps service providers deploy and maintain multiple Grandstream wireless networks.
- IP Phone & Endpoint Connectivity: PSE-enabled Ethernet ports can provide network access and limited PoE power to compatible downstream devices.
- Voice & Video Networks: Advanced QoS helps prioritize real-time traffic for VoIP, conferencing, and other latency-sensitive applications.
- Distributed Wi-Fi Networks: Mesh support and multiple management options make the GWN7604 useful as part of larger Grandstream wireless deployments.
Technical Specifications
Wireless & Performance
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax
- Wireless Class: AX3000
- Aggregate Wireless Throughput: Up to approximately 3 Gbps
- 2.4 GHz Radio: 2×2:2 MU-MIMO
- 5 GHz Radio: 3×3:2 MU-MIMO
- 2.4 GHz 802.11ax Data Rate: Up to 573.5 Mbps
- 5 GHz 802.11ax Data Rate: Up to 2402 Mbps
- Concurrent Clients: Up to 256
- Coverage Range: Up to 100 meters
- SSIDs: 32 total, up to 16 per radio
Frequency & Radio
- 2.4 GHz Frequency Range: 2412 to 2483.5 MHz
- 5 GHz Frequency Range: 5150 to 5895 MHz
- 2.4 GHz Channel Width: 20 MHz and 40 MHz
- 5 GHz Channel Width: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
- Maximum 2.4 GHz TX Power: Up to 24 dBm
- Maximum 5 GHz TX Power: Up to 26 dBm
Antennas
- Internal Antennas: 2 × dual-band internal antennas + 1 × 5 GHz internal antenna
- Antenna 1 Gain: 3.0 dBi at 2.4 GHz / 3.5 dBi at 5 GHz
- Antenna 2 Gain: 3.5 dBi at 2.4 GHz / 3.0 dBi at 5 GHz
- Additional 5 GHz Antenna Gain: 4.5 dBi
Network Interfaces
- Uplink: 1 × 10/100/1000 Mbps Ethernet port with PoE/PoE+
- PSE Ports: 2 × 10/100/1000 Mbps Ethernet ports with PSE
- Additional LAN Port: 1 × 10/100/1000 Mbps Ethernet port
- Total Ethernet Ports: 4 × Gigabit Ethernet
- Auxiliary: 1 × reset pinhole
- Security Slot: 1 × Kensington lock
- Status Indicator: 1 × tri-color LED
Power & PoE
- Power Input: IEEE 802.3af / 802.3at PoE
- Power Adaptation: Automatic adaptation based on detected PoE/PoE+ power
- PSE Output: LAN2 and LAN3
- PSE Power Budget: 12W total shared between LAN2 and LAN3
- Maximum AP Power Consumption: 7.5W excluding PoE output
Network & QoS
- Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
- QoS: 802.11e/WMM, VLAN, TOS
- Mesh Networking: Supported
- Captive Portal: Supported
Security
- Wireless Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3
- Encryption: TKIP / AES where applicable
- Secure Boot: Anti-hacking secure boot
- Device Protection: Critical data and control lockdown using digital signatures
- Device Identity: Unique security certificate and randomized default password per device
Management
- Embedded Controller: Manages up to 50 local GWN access points
- Cloud Management: GDMS Networking supports centralized cloud management for Grandstream networking deployments
- On-Premise Management: GWN Manager supports centralized management for large deployments
Physical & Environment
- Dimensions: 135 × 115 × 30 mm
- Weight: 253 g
- Mounting: Indoor wall mount
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -10°C to 60°C
- Operating Humidity: 10% to 90% non-condensing
Package Includes
- Wi-Fi 6 Access Point: 1 × Grandstream GWN7604
- Mounting Hardware: Mounting kit
- Documentation: Quick Installation Guide
Compatibility & Buying Information
- Exact Model: This listing is for the Grandstream GWN7604 AX3000 Wi-Fi 6 access point with an integrated four-port Gigabit Ethernet switch.
- Power: The GWN7604 is powered through its Gigabit uplink using IEEE 802.3af or 802.3at PoE. A compatible PoE switch or injector is required to power the access point.
- PSE Output: LAN2 and LAN3 can provide PoE to compatible downstream devices, with a combined maximum PSE power budget of 12W shared across both ports.
- Ethernet Connectivity: Four Gigabit ports are available: one PoE/PoE+ uplink, two PSE-enabled LAN ports, and one additional Gigabit LAN port.
- Client Capacity: Supports up to 256 concurrent Wi-Fi clients; actual wireless performance and coverage vary with the environment, interference, client capabilities, and network design.
- Management: Supports the built-in GWN controller for local deployments, GDMS Networking for cloud management, and GWN Manager for on-premise centralized management.
- Mounting: Designed for indoor wall mounting, with the mounting kit included in the package.
- Frequency Availability: Available wireless channels and maximum transmit power vary by country and regulatory region.
Product Video
Manufacturer
GRANDSTREAM
Manufacturer Part
GWN7604
Warranty
36 MONTH
UPC
6947273705369
Condition
NEW
