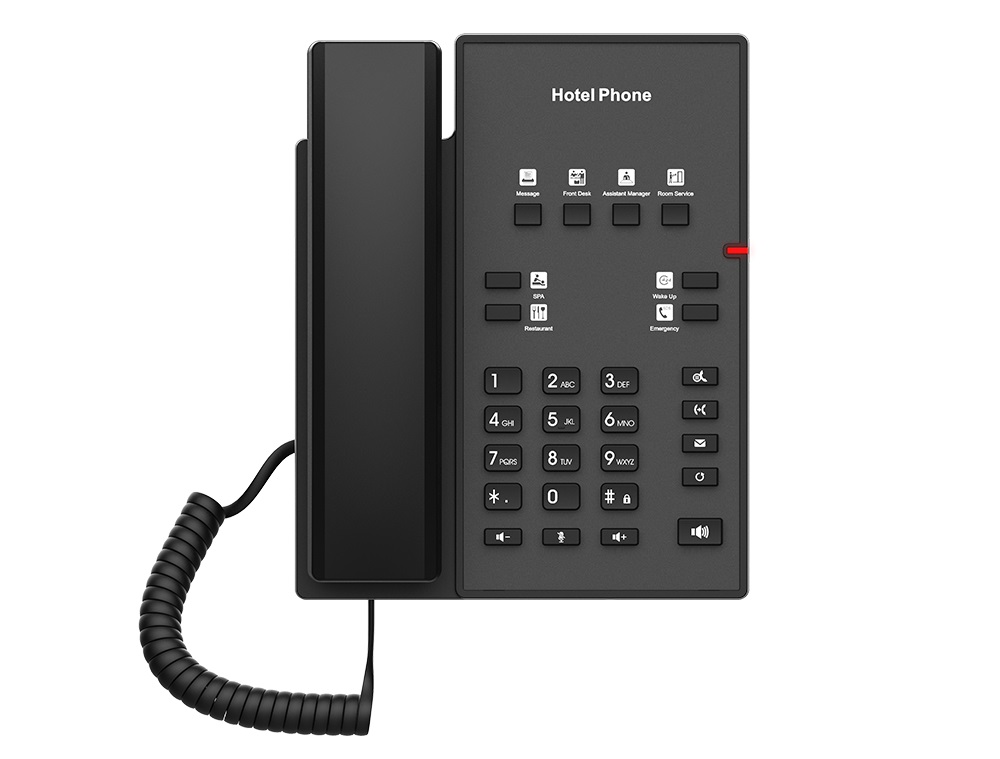

Fanvil H1 Hotel Phone
The Fanvil H1 is a hotel IP phone designed for guest rooms, hospitality properties, front desks, hospitals, retail environments, and other locations that need simple SIP calling with fast access to frequently used services. It combines two SIP lines, HD voice, a full-duplex speakerphone, integrated PoE, and eight programmable service keys in a compact black design.
A customizable faceplate allows hotels and other organizations to clearly label frequently used services such as Front Desk, Room Service, Wake Up, Restaurant, SPA, or Emergency. The H1 also supports SIP Hotspot, secure SIP communication, centralized provisioning, desktop installation, and optional wall mounting, making it well suited for large hospitality deployments that require straightforward operation and consistent room-to-room configuration.
Key Features
- 8 Programmable Service Keys: Provides one-touch access to frequently used hotel or facility services such as Front Desk, Room Service, Wake Up, Restaurant, and Emergency.
- Customizable Faceplate: Allows hotels and businesses to customize service labels and branding for the intended deployment.
- 2 SIP Lines: Supports two SIP accounts for flexible hotel and business voice deployments.
- HD Voice: G.722 and Opus wideband codecs support clearer voice communication.
- Full-Duplex Speakerphone: Acoustic Echo Cancellation and additional voice-processing technologies support hands-free calling.
- Integrated PoE: Allows network data and power to be delivered through the Ethernet connection when used with compatible PoE infrastructure.
- SIP Hotspot: Allows supported Fanvil phones to share SIP account functionality in compatible multi-phone room configurations.
- 10/100 Mbps Ethernet: Standard RJ45 network connection supports wired hotel and business VoIP deployments.
- Message Waiting Indicator: Dedicated red LED provides visual notification of waiting voicemail messages.
- Flexible Installation: Supports two desktop stand angles, with optional wall mounting available using separately purchased mounting hardware.
Applications & Use Cases
- Hotel Guest Rooms: Provides simple SIP calling and one-touch access to frequently used guest services.
- Hospitality Properties: Customizable faceplates and programmable keys help standardize guest-room phone layouts across larger deployments.
- Front Desk & Concierge Services: Programmable DSS keys can be configured for direct access to reception, management, dining, housekeeping, or other service destinations.
- Hospitals & Care Facilities: Straightforward controls and programmable service keys support rooms that require easy access to frequently called departments.
- Retail & Information Desks: Suitable for locations that need a simple SIP phone with preset service or department numbers.
- Multi-Phone Hotel Rooms: SIP Hotspot support can simplify compatible deployments where several Fanvil phones share a SIP account.
- PoE Deployments: Integrated PoE helps reduce power-cabling requirements where compatible PoE switching is available.
Technical Specifications
SIP & Calling
- SIP Lines: 2
- Programmable DSS Keys: 8
- Call Functions: Call out, answer, mute, hold, speed dial, redial, call forwarding, call transfer, hotline, and voicemail
- Call Forward: Always, Busy, No Answer
- Call Transfer: Attended and unattended
- SIP Hotspot: Supported
- Multicast: Supported
- Action URL / Active URI: Supported
- Call Logs: Up to 600 incoming, outgoing, and missed-call records through web management
Audio
- HD Voice: Supported
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711A/U, G.729AB, G.723.1, G.726, iLBC
- Speakerphone: Full-duplex with Acoustic Echo Cancellation
- Audio Sampling: Wideband ADC/DAC with 16 kHz sampling
- Voice Processing: VAD, CNG, BNE, NR, AGC, PLC, adaptive jitter buffer
- DTMF: In-band, RFC2833, SIP INFO
- Voice Quality Monitoring: VQM supported
Network
- Ethernet: 1 × RJ45 10/100 Mbps Ethernet port
- IP Modes: IPv4, IPv6, IPv4/IPv6
- IP Configuration: Static IP, DHCP, PPPoE
- Network Access Control: IEEE 802.1X
- VPN: L2TP, OpenVPN
- VLAN: IEEE 802.1P/Q
- QoS: Supported
- LLDP: Supported
- RTCP-XR: Supported
Protocols & Security
- SIP: SIP v1 and SIP v2 over UDP, TCP, and TLS
- Media: RTP, RTCP, SRTP
- Additional Protocols: STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Keys & Interfaces
- Total Keypad: 28 keys
- Dialing Keys: 12 standard telephone keys
- Programmable DSS Keys: 8
- Function Keys: Hold, Transfer, Redial, Voice Message
- Volume Controls: Volume Up, Volume Down, Mute
- Hands-Free Key: 1
- Message Indicator: 1 × red LED
- Handset Port: 1 × RJ9
- Network Port: 1 × RJ45
Power
- PoE: Integrated PoE
- DC Input: 5V DC / 0.6A
- External Power Adapter: Optional
- PoE Power Consumption: Approximately 1.28W to 2.12W
- Adapter Power Consumption: Approximately 0.669W to 1.438W
Provisioning & Management
- Web Management: Supported
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
- Configuration Import / Export: Supported
- Firmware Upgrade: Supported
- Web Packet Capture: Supported
- Syslog: Supported
Physical & Environment
- Color: Black
- Custom Faceplate: Supported
- Desktop Stand Positions: 31° and 35°
- 31° Desktop Dimensions: 169 × 184 × 124 mm
- 35° Desktop Dimensions: 169 × 184 × 135 mm
- Wall-Mounted Dimensions: 169 × 95.3 × 201.6 mm
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 95% RH
- Installation: Desktop or optional wall mount
Package Includes
- Hotel IP Phone: 1 × Fanvil H1
- Handset: 1 × wired handset
- Handset Cord: 1 × handset cord
- Ethernet Cable: 1 × Ethernet cable
- Desktop Stand: 1 × stand
- Quick Installation Guide: 1 × Fanvil H1 Quick Installation Guide
Compatibility & Buying Information
- SIP Compatibility: Designed for compatible SIP PBX, hosted VoIP, and hotel telephone deployments using standard SIP signaling.
- Hotel Service Keys: Eight programmable DSS keys can be configured for services such as Front Desk, Room Service, Wake Up, Restaurant, SPA, voicemail, or emergency destinations.
- SIP Hotspot: Supports compatible Fanvil multi-phone deployments where phones can share SIP account functionality; configuration depends on the deployed network and SIP environment.
- Power: Supports integrated PoE or 5V DC / 0.6A input. Fanvil identifies the external power adapter as optional, so it should not be assumed to be included.
- Desktop Installation: Desktop stand is included and supports two viewing angles.
- Wall Mounting: Wall mounting is supported, but the wall stand/bracket is sold separately.
- Custom Faceplate: The front service panel can be customized for hotel branding and property-specific service labels.
- Model Difference: This H1 uses standard Ethernet networking. It should not be confused with the separate Fanvil H1-2 Wire model designed for Fanvil 2-wire infrastructure.
Product Video
Manufacturer
FANVIL
Warranty
24 MONTH
UPC
889837003404
Condition
NEW
