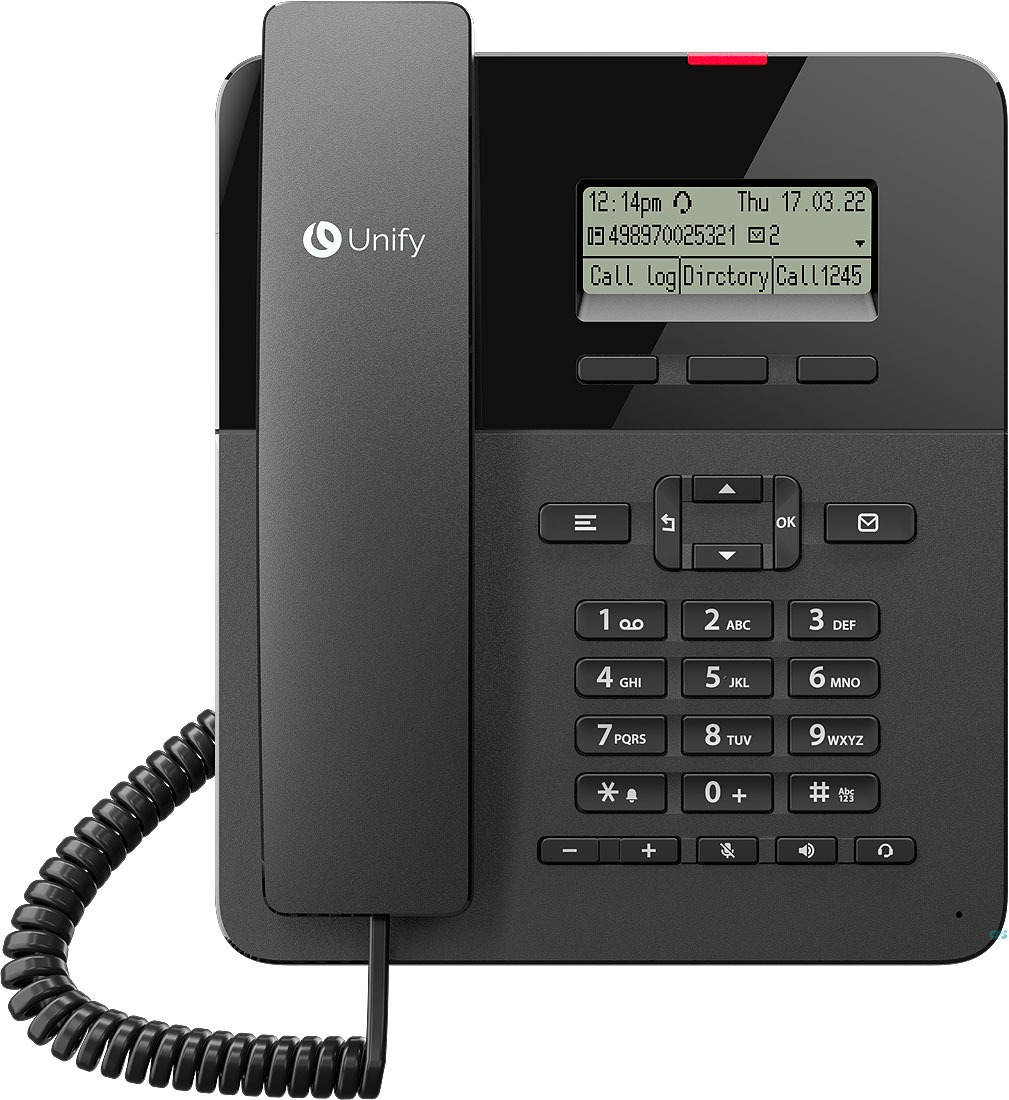

Mitel CP110, OpenScape Desk Phone
The Mitel OpenScape Desk Phone CP110 L30250-F600-C580 is a compact, cost-effective business IP phone designed for everyday office, shared-space, hospitality, education, retail, and other professional communications environments. It combines a 2.8-inch monochrome display, three programmable soft-labeled keys, Gigabit Ethernet, a dedicated headset connection, Power over Ethernet, and wideband voice support in an easy-to-use desktop phone.
Designed as the entry model in the OpenScape CPx10 family, the CP110 focuses on essential business calling without the USB, wireless, or key-module expansion features of higher-tier models. SIP and HFA / CorNet-IP software options allow the same hardware platform to support compatible OpenScape communications environments depending on system software and administrator configuration.
Key Features
- Entry-level Mitel OpenScape CPx10 Series business desk phone
- Exact manufacturer part number L30250-F600-C580
- 2.8-inch monochrome graphical display
- 162 × 48 pixel display resolution
- Three-line graphical user interface
- 3 freely programmable function keys with soft labels on the display
- Default programmable-key assignments for call log, forwarding, and redial
- 2 fixed function keys for settings and messages
- 3-way navigation control with OK key
- Dedicated mute, loudspeaker, and headset controls
- Dedicated volume adjustment
- Full-duplex hands-free speakerphone
- G.722 and OPUS wideband audio support
- Dedicated headset interface for compatible wired or cordless headsets
- 2 x 10/100/1000 Mbps Gigabit Ethernet interfaces
- Integrated Ethernet switch with PC pass-through
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af Power over Ethernet
- PoE Class 1
- Optional external power supply support
- Passive RFID tag
- SIP and HFA / CorNet-IP software support
- Optional wall mounting
Applications & Use Cases
- General office users
- Shared workspaces
- Common-area phones
- Reception overflow positions
- Retail stores
- Hospitality environments
- Classrooms and educational facilities
- Warehouse and stock-room communications
- Healthcare offices
- Small and midsize businesses
- OpenScape Business deployments
- OpenScape 4000 deployments
- OpenScape Voice SIP environments
- Cost-conscious Gigabit IP phone deployments
Technical Specifications
Product
- Product: Mitel OpenScape Desk Phone CP110
- Manufacturer Part Number: L30250-F600-C580
- Product Family: OpenScape Desk Phone CPx10
- Positioning: Entry-Level Business IP Phone
- Operational Software: SIP and HFA / CorNet-IP
- Housing Color: Black
Display
- Display Size: 2.8 Inches
- Display Type: Monochrome Graphical LCD
- Resolution: 162 × 48 Pixels
- Display Layout: 3 Lines
- Signaling LED: Red
Keys & User Interface
- Freely Programmable Keys: 3
- Key Labeling: Electronic Soft Labels on LCD
- Default Assignments: Call Log, Call Forwarding and Redial
- Fixed Function Keys: 2
- Fixed Functions: Settings and Messages
- Navigation: 3-Way Navigator Plus OK
- Audio Keys: Mute, Loudspeaker and Headset
- Volume Control: Dedicated Volume Up / Down
Audio
- G.711 A-Law / µ-Law: Supported
- G.722: Supported
- G.729AB: Supported
- OPUS: Supported
- Speakerphone: Full-Duplex
- Open Listening: Supported
- Wideband Audio: Supported with Compatible Platform and Codec
Headset Support
- Dedicated Headset Interface: Yes
- Wired Headsets: Supported with Compatible Headsets
- Cordless Headsets: Supported Through Compatible Headset Interface Solutions
- Dedicated Headset Key: Yes
- USB Headset: Not Supported - No USB Interface
- Built-In Bluetooth: No
Ethernet & Networking
- Ethernet Interfaces: 2
- Ethernet Speed: 10/100/1000 Mbps Autosensing
- Integrated Ethernet Switch: Yes
- PC Pass-Through: Supported
- Energy Efficient Ethernet: IEEE 802.3az
- IEEE 802.1X: Supported
- LLDP-MED: Supported
- VLAN / QoS: Supported
Security
- Media Encryption: SRTP
- Signaling Encryption: TLS
- Digital Certificates: X.509 V3
- HTTPS: Supported
- Maximum TLS RSA Key Length: Up to 4096 Bit
Wireless & Expansion
- Built-In Wi-Fi: No
- CP10 Wi-Fi Adapter Support: No
- Built-In Bluetooth: No
- NFC: No
- USB Interface: No
- KM410 Key Module Support: No
- KM710 Key Module Support: No
Power
- Power over Ethernet: Supported
- PoE Standard: IEEE 802.3af
- PoE Class: Class 1
- External Power: Optional Country-Specific Power Supply
- North American Power Supply: L30250-F600-C143
- External Power Supply Included: No, Unless Specifically Bundled by Seller
Desk & Wall Installation
- Desk Stands: Included
- Desk Positions: 22.5° and 45°
- Wall Mounting: Supported
- Optional Wall Mount Kit: L30250-F600-C596
Physical & Environment
- Width: Approximately 187 mm / 7.36 in
- 22.5° Position: Approximately 215 mm High × 187 mm Wide × 201 mm Deep
- 45° Position: Approximately 183 mm High × 187 mm Wide × 168 mm Deep
- Weight: Approximately 0.75 kg / 1.65 lb
- Operating Temperature: +5°C to +40°C / +41°F to +104°F
- Storage Temperature: -25°C to +70°C / -13°F to +158°F
Package Includes
- Mitel OpenScape Desk Phone CP110
- Desk Stands
- Handset
- Handset Cable
- Installation and Quick Reference Guide
Compatibility & Buying Information
Exact SKU: This page is for Mitel OpenScape Desk Phone CP110 part number L30250-F600-C580.
Entry-Level CPx10 Model: CP110 is designed as the cost-effective entry point into the OpenScape CPx10 family. It provides essential business calling, Gigabit Ethernet, headset support, wideband audio, and programmable functions without the additional expansion interfaces found on higher-end models.
Three Programmable Keys: The CP110 provides three freely programmable keys with labels shown directly on the display. Default assignments include call log, forwarding, and redial, but available programming depends on communications platform and administrator configuration.
Gigabit Ethernet: Both Ethernet interfaces support 10/100/1000 Mbps operation, allowing the phone and an attached computer to share a Gigabit network connection.
No USB: CP110 does not include a USB port. USB headsets, USB DECT accessories, and the OpenScape CP10 Wi-Fi adapter cannot be connected to this model.
No Wi-Fi: Unlike CP210, CP410, and CP710, the CP110 does not support the optional CP10 Wi-Fi USB adapter. Network connectivity is through wired Ethernet.
No Key Module Expansion: CP110 does not support KM410 or KM710 programmable key modules. Customers requiring large-scale programmable-key expansion should consider CP410 or CP710.
No Bluetooth or NFC: The CP110 does not include integrated Bluetooth or NFC. Bluetooth accessory pairing is a CP710 feature within the current CPx10 family.
Dedicated Headset Port: Compatible wired and supported cordless business headsets can be connected through the phone's dedicated headset interface without occupying an Ethernet connection.
SIP and HFA: CP110 hardware supports both SIP and HFA / CorNet-IP operating software. Feature availability depends on the communications platform, installed software, licensing, and administrator configuration.
OpenScape Business Documentation: The supplied OpenScape Business Quick Reference Guide applies to CP110 units operating with HFA software on an OpenScape Business system.
OpenScape 4000 Documentation: The supplied OpenScape 4000 User Guide applies to CP110 units operating with HFA software on an OpenScape 4000 platform.
PoE Class 1: CP110 can be powered through an IEEE 802.3af PoE network connection. An optional external power supply can be used when PoE is unavailable.
Wall Mounting: CP110 can be installed on a wall using optional OpenScape wall-mount kit L30250-F600-C596.
Best Fit: Mitel CP110 is best suited to general office workers, common areas, hospitality, education, retail, warehouse positions, and other users who need reliable OpenScape business calling, Gigabit Ethernet, headset connectivity, and HD voice without USB, Wi-Fi, Bluetooth, or key-module expansion.
