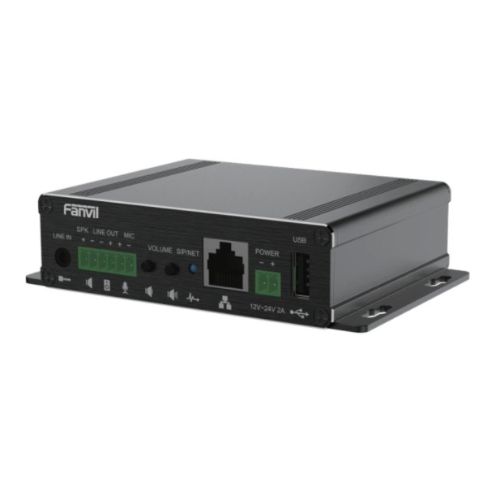

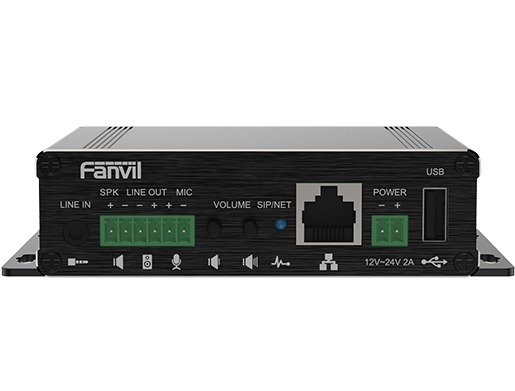

Fanvil PA3 SIP Paging Gateway
The Fanvil PA3 is a compact SIP paging gateway designed for public-address, paging, intercom, background music, and emergency-notification applications. It connects SIP and IP networks to passive speakers, active speakers, microphones, external audio sources, programmable call buttons, and local audio storage, allowing integrators to build flexible IP paging systems for schools, warehouses, offices, hospitals, retail locations, transportation facilities, and other commercial environments.
The PA3 includes a built-in mono power amplifier capable of up to 30W output depending on the available DC input voltage, while PoE operation supports up to 10W speaker output. Two SIP lines, multicast, MP3 broadcasting, USB and TF-card storage, audio line input/output, microphone input, programmable DSS button ports, IP-camera linkage, and centralized provisioning provide a versatile foundation for custom SIP paging and intercom deployments.
Key Features
- 2 SIP Lines: Supports two SIP accounts for paging, intercom, calling, and communications integration.
- 10W to 30W Built-In Amplifier: Drives a compatible 4Ω passive speaker with output power determined by the PA3 power source.
- Flexible Speaker Connectivity: Supports a passive speaker through the amplified output and compatible active speakers through the adjustable line-out connection.
- Microphone Input: Supports an external electret condenser microphone for custom paging and intercom installations.
- 3.5 mm Line Input: Allows an external audio source to be connected for paging, music, or other audio applications.
- Multicast Paging: Dynamic multicast support enables one-to-many paging and broadcast applications on compatible IP networks.
- MP3 & Offline Broadcasting: USB and TF-card storage support local audio files for prerecorded announcements and offline broadcasting.
- Recording Support: Supports call or audio recording through compatible USB storage or server-based workflows.
- Programmable DSS Inputs: Two external button interfaces can be configured for functions such as speed dial and emergency calling.
- IP Camera Linkage: Can integrate with a compatible IP camera to support video-intercom applications.
- PoE Support: Integrated PoE simplifies installations by carrying network connectivity and power over one Ethernet connection.
- Compact Installation: Small enclosure supports desktop, wall-mounted, or embedded equipment installations.
Applications & Use Cases
- IP Paging Systems: Connects SIP networks to compatible speakers for live announcements, alerts, and facility-wide paging.
- Schools & Campuses: Supports classroom paging, scheduled announcements, emergency notifications, and background audio.
- Warehouses & Industrial Facilities: Provides high-output paging and intercom connectivity for large operational environments.
- Retail Stores: Supports background music, staff announcements, promotional audio, and emergency messaging.
- Healthcare Facilities: Can be integrated into compatible paging and intercom systems for announcements and internal communications.
- Transportation Facilities: Supports prerecorded or live announcements in stations, terminals, and other public spaces.
- Emergency Call Stations: Programmable external button inputs can be used for compatible one-touch calling or assistance applications.
- Custom System Integration: Audio I/O, SIP, multicast, USB storage, TF-card storage, DSS inputs, and IP-camera linkage support specialized integrator-built solutions.
Technical Specifications
SIP & Paging
- SIP Lines: 2
- SIP: SIP v1 and SIP v2 over UDP, TCP, and TLS
- Calling: Call out, answer, reject, call waiting, intercom, and speed dial
- Auto Answer: Supported
- Multicast: Supported
- Dynamic Multicast: Supported
- Action URL / Active URI: Supported
- IP Camera Linkage: Supported for compatible video-intercom applications
- IP Address Voice Announcement: Supported in English
Audio
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
- Full-Duplex Audio: Supported with Acoustic Echo Cancellation
- DTMF: In-band, RFC2833, SIP INFO
- MP3 Broadcasting: Supported
- Local Recording: Supported with compatible USB storage
Passive Speaker Output
- Speaker Output: 1 × amplified mono passive-speaker output
- Recommended Speaker Impedance: 4Ω
- PoE Output Power: Up to 10W
- 12V DC Output Power: Up to 10W
- 18V DC Output Power: Up to 20W
- 24V DC Output Power: Up to 30W
- Recommended Speaker Wire: 18 AWG or larger
- Connection: Terminal socket
Audio Inputs & Outputs
- Line Input: 1 × 3.5 mm audio input
- Line Output: 1 × adjustable terminal output for compatible active speakers
- Maximum Line Output: Up to 1.2 Vpp
- Microphone Input: 1 × terminal input
- Recommended Microphone: Electret condenser microphone
- Microphone Sensitivity: -38 dB
- Microphone Impedance: 2.2 kΩ
External Controls & Storage
- DSS Button Ports: 2 programmable external-button connections
- DSS LED Output: 5.0V DC / 5 mA
- USB: 1 × USB 2.0 port
- TF Card: 1 × TF-card slot
- Volume Controls: Hardware Volume Up and Volume Down buttons
- Reset: Hardware reset button
- Status LED: SIP and network-status indicator
Network
- Ethernet: 1 × RJ45 10/100 Mbps adaptive Ethernet port
- IP Modes: IPv4, IPv6, IPv4/IPv6
- IP Configuration: Static IP, DHCP, PPPoE
- VPN: L2TP, OpenVPN
- VLAN: Supported
- Media Protocols: RTP, RTCP, SRTP
- Additional Protocols: STUN, DHCP, IPv6, PPPoE, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Power
- DC Input: 12V to 24V DC / 2A
- PoE: Class 4
- PoE Power Consumption: Approximately 1.85W to 10.8W
- DC Power Consumption: Approximately 1.1W to 8.5W
- Amplifier Output: Maximum speaker power depends on the selected power source and input voltage
Provisioning & Management
- Web Management: Supported
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
- Configuration Import / Export: Supported
- Firmware Upgrade: Supported
- Web Packet Capture: Supported
- Syslog: Supported
- Network Time Synchronization: Supported
Physical & Environment
- Color: Black
- Dimensions: 125 × 84.2 × 31 mm
- Installation: Desktop, wall-mounted, or embedded installation
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +60°C
- Operating Humidity: 10% to 95% RH
Compatibility & Buying Information
- Passive Speaker Output: The built-in amplifier supports a compatible 4Ω passive speaker. Maximum output is 10W with PoE or 12V DC, 20W at 18V DC, and 30W at 24V DC.
- Active Speakers: Compatible powered speakers can be connected through the adjustable line-out terminal instead of the amplified passive-speaker output.
- Power: Supports PoE Class 4 or 12V to 24V DC / 2A. Select the DC voltage based on the required passive-speaker amplifier output.
- Microphone: Fanvil recommends an electret condenser microphone for the MIC input. External microphone and speaker hardware should be selected to match the PA3 electrical specifications.
- External Call Buttons: Two programmable DSS ports support external buttons for functions such as speed dial or emergency calling; the buttons are external accessories rather than built-in controls.
- Local Audio Storage: USB storage and a TF card can be used for compatible prerecorded audio and recording functions. Storage media is separate from the PA3 itself.
- SIP Platform Integration: The PA3 uses standard SIP and RTP-based communications and can integrate with compatible IP PBX, paging, and communications systems. Individual features depend on the server and network configuration.
- IP Camera Integration: Compatible IP-camera linkage can add video to an intercom workflow, but the PA3 does not contain a built-in camera.
- Mounting: Fanvil publishes a separate PA3 Mounting Dimensions document for installers planning wall-mounted or embedded installations.
Manufacturer
FANVIL
Manufacturer Part
PA3
Warranty
24 MONTH
UPC
889837001608
Condition
NEW
