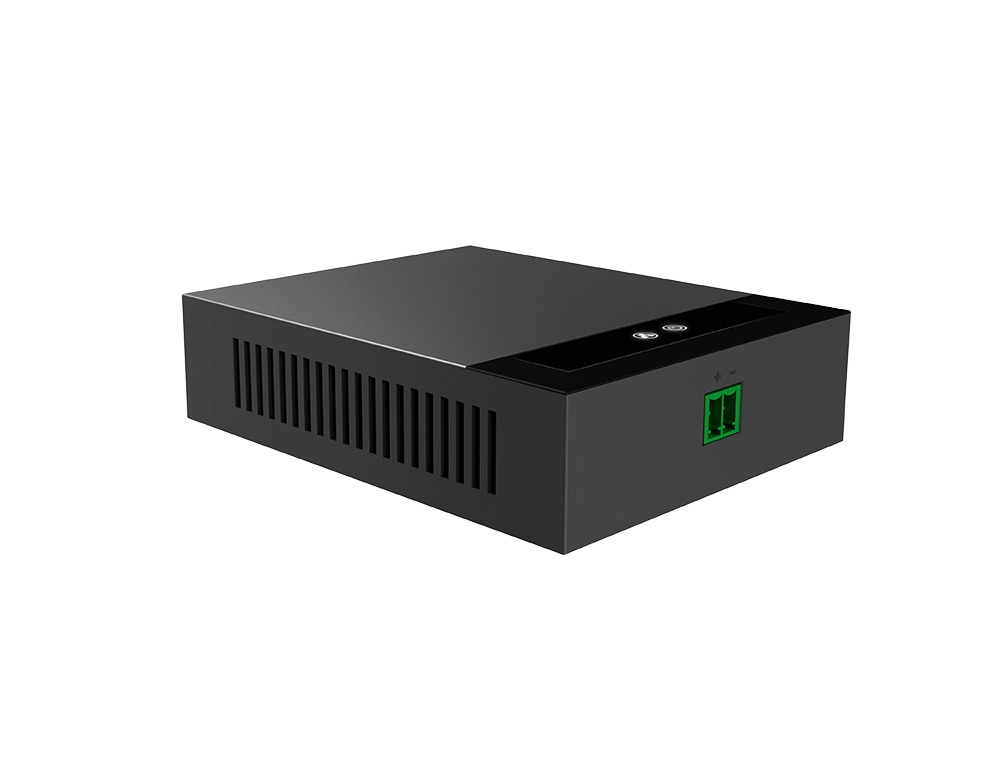

Fanvil PN1 2-Wire Converter
The Fanvil PN1 is a compact 2-wire converter designed to carry IP network connectivity and PoE power over existing two-conductor cabling, helping installers upgrade legacy wiring without running new Ethernet throughout the building. With one 10/100 Mbps RJ45 Ethernet interface and one 2-wire interface, the PN1 can connect compatible PoE-enabled IP devices across existing PSTN, CAT 5e, RVV, or similar supported wiring.
The PN1 can be deployed as a pair of converters or integrated with Fanvil PN8 and PN24 2-Wire PoE switches for larger installations. Fanvil supports transmission distances up to 300 meters when both network and power are carried over the 2-wire link, or up to 1600 meters for network-only operation depending on cable quality and interference. This makes the PN1 well suited for hotels, apartment communities, villas, offices, and building-renovation projects where existing wiring needs to be preserved.
Key Features
- Ethernet-to-2-Wire Conversion: Converts between a standard RJ45 Ethernet connection and a 2-wire link for supported IP-device deployments.
- Reuse Existing Cabling: Allows suitable PSTN, CAT 5e, RVV, and similar two-conductor wiring to be reused instead of installing new Ethernet cable.
- Network & Power Over 2-Wire: Supports simultaneous network and power transmission over the 2-wire link for compatible PoE applications.
- Up to 300-Meter Network & Power Distance: Supports network and PoE transmission up to 300 meters depending on wiring quality and interference.
- Up to 1600-Meter Network-Only Distance: Supports extended network-only transmission up to 1600 meters when power is not carried over the 2-wire link.
- Standard PoE Output: Supports IEEE 802.3af/at PoE output for compatible Ethernet devices.
- 10/100 Mbps Ethernet: RJ45 interface supports 10/100 Base-T with auto-negotiation.
- No Master/Slave Requirement: When two PN1 units are used together, Fanvil does not require dedicated master and slave converter roles.
- PN8 & PN24 Compatible: Can connect to Fanvil PN8 and PN24 2-Wire PoE switches for centralized network and power distribution.
- Plug-and-Play Design: Simplifies retrofit installations without complex endpoint configuration.
- Status Indicators: Red power and green network LEDs provide operating-status visibility.
- Compact Housing: Small ABS enclosure supports discreet installation in retrofit and structured communications environments.
Applications & Use Cases
- Legacy Building Upgrades: Converts suitable existing two-wire infrastructure for modern IP communications without requiring complete recabling.
- Hotel Retrofits: Helps extend network connectivity and power to compatible IP devices using existing guest-room wiring.
- Apartment & Community Deployments: Supports IP-device upgrades across multi-unit properties where legacy two-wire cabling is already installed.
- Office Renovations: Provides a practical method for adding Ethernet and PoE connectivity in locations where installing new CAT cabling would be disruptive.
- Historic Buildings: Reduces the need for extensive new cable runs where architectural or construction limitations make rewiring difficult.
- IP Phone Deployments: Supports compatible PoE IP phones over existing two-wire cabling when deployed within Fanvil's supported 2-Wire architecture.
- IP Intercom & Security Devices: Can provide Ethernet and standard PoE output for compatible IP devices when power and cabling requirements are within the PN1's supported limits.
- PN8 / PN24 Extensions: Provides conversion from the Fanvil 2-wire network to a standard RJ45 Ethernet/PoE connection at the endpoint.
Technical Specifications
Ethernet Interface
- Connector: 1 × RJ45
- Ethernet Speed: 10/100 Base-T
- Auto-Negotiation: Supported
- PoE Output: IEEE 802.3af/at
2-Wire Interface
- 2-Wire Ports: 1
- Function: Network transmission with optional power delivery over supported two-conductor cabling
- Compatible Wiring: CAT 5e, 24 AWG, RVV 2 × 0.5, or similar supported cabling
- Master / Slave Configuration: Not required between two PN1 converters
Transmission
- Network & Power Transmission: Up to 300 m
- Network-Only Transmission: Up to 1600 m
- Distance Considerations: Maximum supported distance depends on cable type, cable condition, and electrical interference
Power
- AC Input: 100V to 240V AC
- Power Adapter Output: 54V DC / 1.5A
- Maximum Output: Up to 80W
- PoE Standard: IEEE 802.3af/at
Operating Modes
- Ethernet Input / 2-Wire Output: PN1 converts Ethernet to a 2-wire network-and-power connection when the powered converter is used.
- 2-Wire Input / Ethernet Output: PN1 converts the incoming 2-wire connection to RJ45 Ethernet and can provide PoE output to a compatible device.
- PN1 Pair Operation: Two PN1 converters can form a point-to-point 2-wire link without dedicated master and slave roles.
- PN8 / PN24 Operation: A PN1 can be used at the remote end of a compatible Fanvil PN8 or PN24 2-wire connection.
Controls & Indicators
- Reset Button: 1
- Factory Reset: Press and hold reset for approximately 10 seconds
- Power Indicator: Red LED
- Network Indicator: Green LED
Physical & Environment
- Housing Material: ABS
- Color: Gunmetal
- Product Dimensions: 85 × 68 × 22.7 mm
- Weight: 0.69 kg
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +80°C
- Installation: Wall-mounted or flush-mounted
Package Includes
- 2-Wire Converters: 2 × Fanvil PN1
- Power Adapter: 1 × PN1 power adapter
- 2-Wire Connectors: 2 × connectors / terminal blocks
- Quick Installation Guide: 1 × Fanvil PN1 Quick Installation Guide
Compatibility & Buying Information
The Fanvil PN1 is designed to convert between a standard RJ45 Ethernet/PoE connection and Fanvil's 2-wire network architecture. It is not an analog telephone adapter and does not convert analog voice service to SIP. Its purpose is to transport Ethernet network connectivity, and when supported, PoE power across suitable two-conductor wiring.
Two PN1 converters can be used together for a point-to-point link. Fanvil specifies that there is no master/slave distinction between the two converters. In a powered point-to-point installation, the PN1 connected on the network side uses the supplied power adapter and sends network and power over the 2-wire connection to the second PN1.
The PN1 is also compatible with Fanvil PN8 and PN24 2-Wire PoE switches. In this configuration, the PN8 or PN24 supplies network and power over the 2-wire cabling and a PN1 at the remote end converts that connection back to standard RJ45 Ethernet/PoE for a compatible IP device.
Fanvil specifies up to 300 meters when both network and power are transmitted, and up to 1600 meters for network-only transmission. Actual supported distance depends on cable gauge, cable condition, wiring topology, connected-device power requirements, and interference, so existing cabling should be evaluated before deployment.
