Teltonika PR1CS530

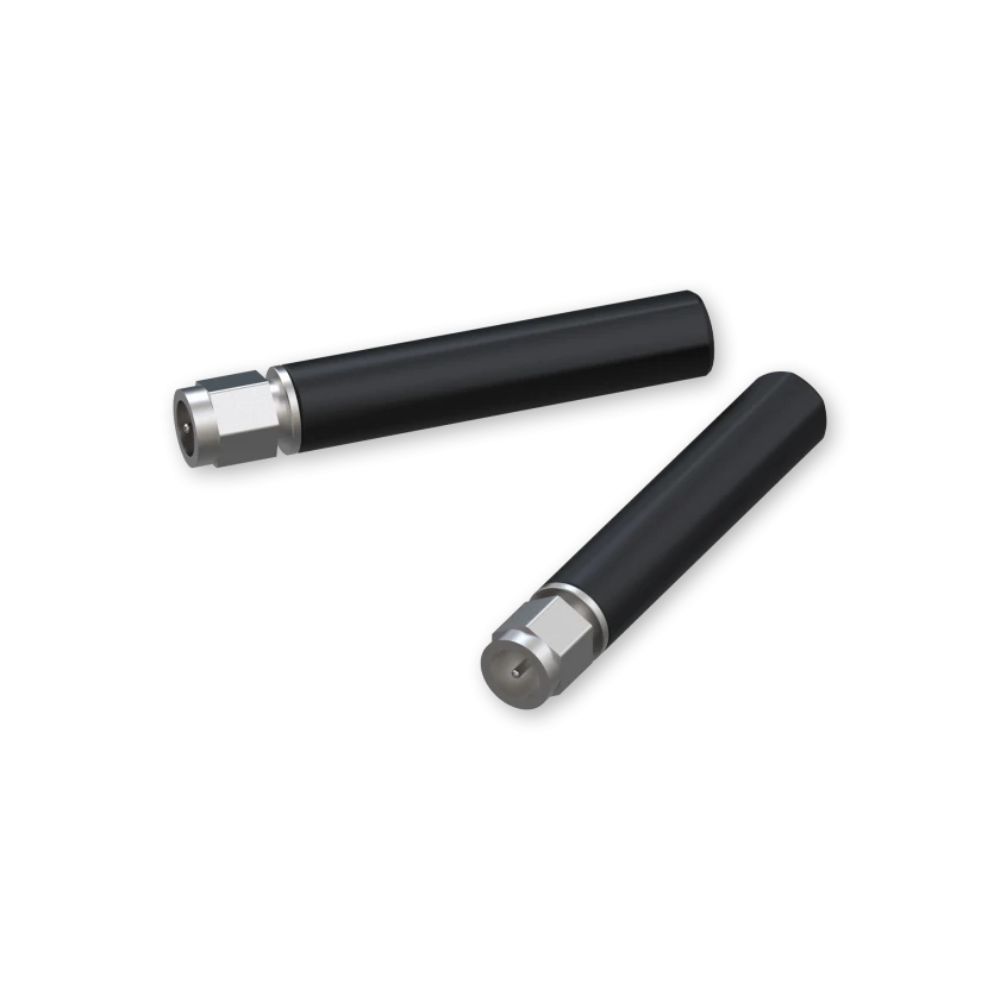

The TELTONIKA 5G Straight Compact Mobile SMA Antenna is a high-performance, omni-directional antenna designed for reliable 5G connectivity in mobile and IoT applications.

Technical Data:

• Frequency range: 698 ~ 960 MHz, 1710 ~ 2690 MHz, 3300 ~ 6000 MHz
• Polarisation: Linear
• Radiation pattern type: Omni-directional
• Gain: ≤ 2.8 dBi
• V.S.W.R ≤ 7.9
• Efficiency: ≤ 68.9%
• Impedance: 50 Ω
• Connector type: SMA Male
• Weight: 5.1 g
• Operating temperature: -40 °C ~ +85 °C
• Ingress protection rating: IP53
• RoHS compliant

Compatible with: ATRM50, RUT271, RUT976, RUTC50,RUTM30, RUTM31, RUTM50, RUTM51, RUTM52, RUTM54, RUTM55, RUTM56, RUTM59, RUTX50,TRB500, TRM500.
