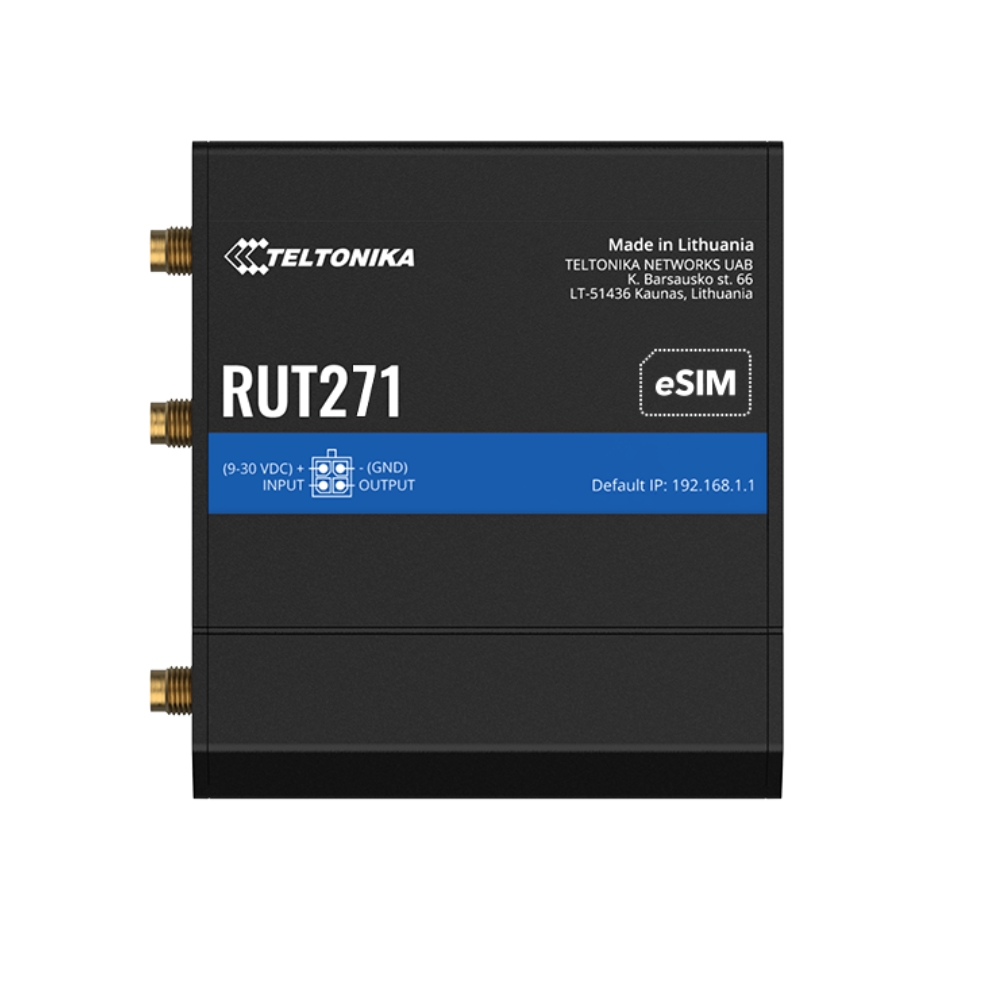

Teltonika RUT271200000 RedCap 5G Router eSIM (Global)
The Teltonika RUT271200000 is a compact industrial RedCap 5G router designed for IoT, remote monitoring, industrial automation, smart infrastructure, retail, transportation, and other professional deployments that need the low latency and improved efficiency of 5G without the cost or complexity of a full-capacity 5G router. Built on 3GPP Release 17 RedCap technology, the RUT271 supports 5G Sub-6 GHz Standalone connectivity with download speeds up to 223 Mbps and upload speeds up to 123 Mbps while remaining backward compatible with 4G LTE Cat 4 networks.
This RUT271200000 Global version adds consumer-type eSIM support with management for up to seven eSIM profiles and also includes a physical Mini-SIM slot. The router combines cellular connectivity with Wi-Fi 4, one 10/100 Mbps WAN port, one 10/100 Mbps LAN port, automatic WAN failover, load balancing, VPN services, advanced firewall functions, industrial I/O, passive PoE capability, and Teltonika's RutOS operating system. Remote configuration and monitoring through Teltonika RMS make it well suited for distributed networks and unattended installations.
Key Features
- Industrial 5G RedCap router based on 3GPP Release 17
- 5G Sub-6 GHz Standalone connectivity
- Up to 223 Mbps 5G download speed
- Up to 123 Mbps 5G upload speed
- Backward compatible with 4G LTE Cat 4
- Up to 195 Mbps LTE download speed
- Up to 105 Mbps LTE upload speed
- Consumer-type eSIM support
- Supports download and management of up to seven eSIM profiles
- 1 x external Mini-SIM slot
- Automatic SIM and eSIM switching capabilities
- Wi-Fi 4 802.11b/g/n access point and station functionality
- Supports up to 50 simultaneous Wi-Fi connections
- 1 x 10/100 Mbps WAN Ethernet port configurable as LAN
- 1 x 10/100 Mbps LAN Ethernet port
- Automatic WAN failover and network backup
- Load balancing support
- 1 digital input and 1 digital output
- 9–30 VDC industrial power input
- Passive PoE power option through LAN1
- RutOS operating system based on OpenWrt
- OpenVPN, IPsec, WireGuard, ZeroTier, Tinc, GRE, L2TP, and other VPN support
- Advanced firewall, VLAN, QoS, and attack-prevention features
- Teltonika Remote Management System support
- Compact aluminum housing with IP30 protection
- DIN rail, wall, and flat-surface mounting options with compatible mounting accessories
Applications & Use Cases
- Industrial IoT connectivity
- Remote monitoring and telemetry systems
- Industrial automation and machine connectivity
- Smart city and smart infrastructure installations
- Digital signage and kiosk connectivity
- Retail and point-of-sale networks
- Remote security and surveillance systems
- Transportation and fleet infrastructure
- Utility and energy monitoring
- Building automation systems
- Backup Internet connectivity for remote equipment
- Primary cellular WAN for compact industrial networks
- Deployments requiring 5G latency with moderate bandwidth requirements
- Locations transitioning from 4G LTE toward 5G infrastructure
- Multi-site installations managed through Teltonika RMS
- Applications requiring eSIM-based carrier provisioning
Technical Specifications
Mobile & Cellular
- Manufacturer: Teltonika Networks
- Model: RUT271
- Order Code: RUT271200000
- Product Type: Industrial RedCap 5G Router
- Region: Global
- 3GPP Release: Release 17 RedCap
- 5G Technology: 5G Sub-6 GHz Standalone
- Maximum 5G Download: 223 Mbps
- Maximum 5G Upload: 123 Mbps
- 4G Technology: LTE Cat 4
- Maximum LTE Download: 195 Mbps
- Maximum LTE Upload: 105 Mbps
- Mobile Antenna Connectors: 2 x SMA
- Mobile Antennas: 2 x Included Swivel 5G Antennas
Global Cellular Bands
- 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- 4G LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71
- 4G LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
SIM & eSIM
- eSIM: Consumer-Type eSIM
- eSIM Profiles: Up to 7 Profiles
- eSIM Operations: Profile Download and Removal
- Physical SIM: 1 x Mini-SIM / 2FF Slot
- SIM Voltage: 1.8 V / 3 V
- SIM Switching: Supported on Compatible Configuration
- Automatic Switch Conditions: Weak Signal, Data Limit, SMS Limit, Roaming, No Network, Network Denied, Data Connection Failure, SIM Idle Protection
- eSIM Data Plan: Not Included
Wi-Fi
- Wireless Standard: IEEE 802.11b/g/n Wi-Fi 4
- Wireless Band: 2.4 GHz
- Operating Modes: Access Point and Station
- Maximum Wi-Fi Clients: Up to 50 Simultaneous Connections
- Wi-Fi Antenna Connector: 1 x RP-SMA
- Wi-Fi Antenna: 1 x Included Swivel Antenna
- Wireless Mesh: IEEE 802.11s
- Fast Roaming: IEEE 802.11r
- BSS Transition Management: IEEE 802.11v
- Radio Resource Measurement: IEEE 802.11k
- Wi-Fi Security: WPA2-PSK, WPA2-Enterprise, WPA3-SAE, WPA3-EAP, WPA-EAP, WPA-PSK, OWE
Ethernet & Network
- Ethernet Ports: 2 x RJ45 10/100 Mbps
- WAN: 1 x 10/100 Mbps, Configurable as LAN
- LAN: 1 x 10/100 Mbps
- Auto MDI/MDIX: Supported
- WAN Failover: Supported
- Network Backup: Mobile, Wi-Fi WAN, Wired, VRRP
- Load Balancing: Supported
- VLAN: Port and Tag-Based VLAN Separation
- QoS: Supported
- Smart Queue Management: Supported
- DHCP: Client, Server, Relay, Static Leases
- IPv4 / IPv6: Supported
- Dynamic Routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
VPN & Security
- OpenVPN: Client and Server
- IPsec: IKEv1 and IKEv2
- WireGuard: Client and Server
- ZeroTier: Supported
- Tinc: Supported
- GRE: Supported
- L2TP: Client and Server
- DMVPN: Supported
- SSTP: Client Support
- Firewall: NAT, NAT-T, NAT64, DMZ, Port Forwarding, Custom Rules
- Attack Prevention: DDoS, Port Scan, SSH, HTTP, and HTTPS Attack Protection
- Authentication: Pre-Shared Keys, X.509 Certificates, RADIUS, TACACS+
- 802.1X: Port-Based Network Access Control Server
Industrial & IoT Interfaces
- Digital Input: 1
- Digital Input Logic Low: 0–6 V
- Digital Input Logic High: 8–30 V
- Digital Output: 1 x Open Collector
- Maximum Digital Output: 30 V, 300 mA
- Modbus: TCP Client and Server
- OPC UA: Client and Server
- DNP3: Station and Outstation
- DLMS/COSEM: Client
- MQTT: Broker, Publisher, and Modbus MQTT Gateway
- Data to Server: HTTP(S), MQTT, Azure MQTT
Management & Software
- Operating System: RutOS Based on OpenWrt Linux
- Web Interface: HTTP / HTTPS
- Remote Management: Teltonika RMS
- Firmware Management: WebUI, FOTA, RMS
- SSH: Supported
- TR-069: Supported
- SNMP: v1, v2, v3
- JSON-RPC: Management API over HTTP / HTTPS
- Cloud Integration: Azure IoT Hub, AWS IoT Core, ThingWorx, Cumulocity
- CPU: MediaTek 580 MHz MIPS 24KEc
- RAM: 128 MB DDR2
- Flash Storage: 32 MB NOR Flash
Power & Physical
- Power Connector: 4-Pin Industrial DC Socket
- Input Voltage: 9–30 VDC
- Reverse Polarity Protection: Supported
- Passive PoE: 9–30 VDC over Spare Pairs, Mode B
- IEEE PoE Compatibility: Passive PoE Only; Not IEEE 802.3af/at/bt
- Idle Power Consumption: Less Than 1.5 W
- Maximum Power Consumption: Less Than 3 W
- Housing: Aluminum with Plastic Panels
- Dimensions: 83 x 25 x 74 mm
- Weight: 130 g
- Ingress Protection: IP30
- Operating Temperature: -40°C to 75°C
- Operating Humidity: 10% to 90% Non-Condensing
- Mounting: DIN Rail, Wall, or Flat Surface with Compatible Mounting Kit
- Regulatory: CE, UKCA, FCC, IC / ISED, RCM, CB, WEEE
Package Includes
- 1 x Teltonika Networks RUT271 Router
- 1 x 9 W Universal Power Supply
- 2 x Mobile 5G Antennas, Swivel, SMA Male
- 1 x Wi-Fi Antenna, Swivel, RP-SMA Male
- 1 x Ethernet Cable, 1.5 m
- 1 x SIM Adapter Kit
- 1 x Quick Start Guide
- 1 x Packaging Box
Compatibility & Buying Information
RUT271200000 Global eSIM Version: This order code is the Global RUT271 configuration with consumer-type eSIM support and a Universal power supply. It supports the listed global 5G NR SA and LTE bands for deployments in supported regulatory regions.
5G RedCap: The RUT271 uses 3GPP Release 17 RedCap technology. RedCap is designed to provide lower-complexity 5G connectivity for IoT and industrial applications that benefit from 5G latency and network capabilities but do not require multi-gigabit full-capacity 5G performance.
Standalone 5G: The router's 5G connectivity uses 5G Standalone architecture. Confirm that the intended mobile operator supports compatible 5G SA RedCap service and the required radio bands at the installation location.
4G LTE Fallback: The RUT271 is backward compatible with LTE Cat 4, allowing the router to use supported 4G networks where compatible 5G RedCap service is unavailable.
eSIM Support: The RUT271200000 supports consumer-type eSIM profile download and removal with storage for up to seven eSIM profiles. Cellular service and operational data plans are not included with the router.
Physical SIM: In addition to eSIM capability, the router includes one external Mini-SIM / 2FF slot. SIM and eSIM switching behavior can be configured for supported failover conditions.
Wi-Fi 4: The RUT271 provides 2.4 GHz IEEE 802.11b/g/n wireless connectivity rather than Wi-Fi 5, Wi-Fi 6, or Wi-Fi 7. It can operate as an access point or wireless station and supports up to 50 simultaneous Wi-Fi connections.
10/100 Ethernet: The router includes two Fast Ethernet ports rather than Gigabit Ethernet. One port operates as WAN and can be configured as LAN, while the second is a LAN port.
Passive PoE: The RUT271 can be powered through passive PoE on supported Ethernet wiring using 9–30 VDC Mode B. This is not IEEE 802.3af, 802.3at, or 802.3bt PoE and should not be treated as standard active PoE.
Remote Management: Teltonika RMS support allows compatible RUT271 deployments to be remotely monitored, configured, and maintained, which is useful for distributed or difficult-to-access installations.
Best Fit: The RUT271200000 is well suited for IoT integrators, industrial networks, utilities, transportation, automation systems, kiosks, digital signage, remote equipment, and other professional deployments that need compact 5G RedCap connectivity, LTE fallback, eSIM flexibility, Wi-Fi, Ethernet, VPNs, and remote management.
