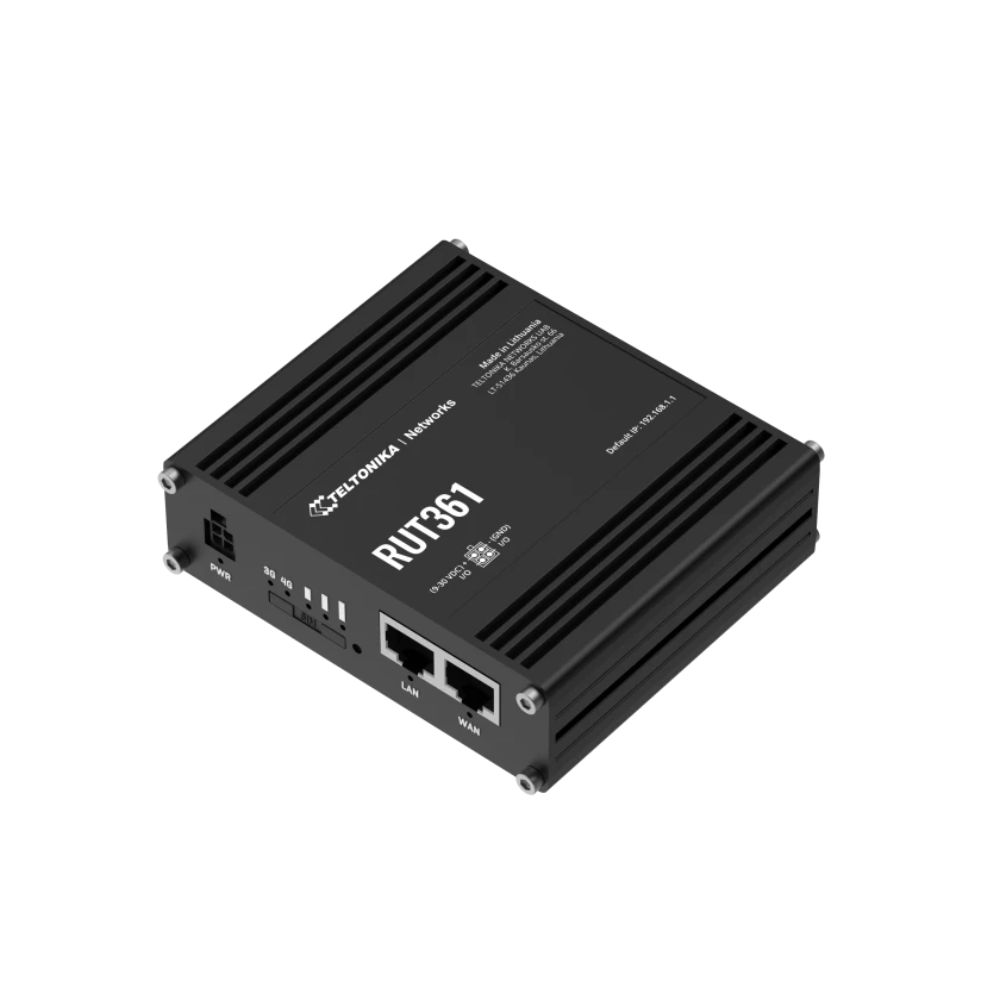

Teltonika RUT361200800 - RUT361 LTE CAT 6 Router

• Teltonika Networks RUT361 industrial cellular router
• Exact order code RUT361200800
• North American hardware configuration
• Standard package with US power supply
• 4G LTE Cat 6 cellular connectivity
• Up to 300 Mbps cellular download speed
• Up to 50 Mbps cellular upload speed
• Carrier aggregation support
• 3GPP Release 12
• 1 x external Mini-SIM / 2FF slot
• 2 x SMA mobile antenna connectors
• 2.4 GHz IEEE 802.11b/g/n Wi-Fi 4
• 2x2 MIMO Wi-Fi
• Access Point and Station wireless modes
• Up to 50 simultaneous Wi-Fi connections
• 2 x RP-SMA Wi-Fi antenna connectors
• 1 x 10/100 Mbps WAN Ethernet port
• 1 x 10/100 Mbps LAN Ethernet port
• Automatic WAN failover
• Mobile, wired, and Wi-Fi WAN backup options
• Load balancing support
• 2 x configurable digital I/O pins on the power connector
• 4-pin industrial power socket
• 9–30 VDC input range
• Reverse-polarity protection
• RutOS operating system based on OpenWrt
• Teltonika Remote Management System support
• OpenVPN, IPsec, WireGuard, ZeroTier, Tailscale, GRE, DMVPN, and additional VPN support
• MODBUS TCP support
• OPC UA support
• MQTT and Data to Server functionality
• SNMP v1/v2/v3 support
• SMS monitoring and control functions
• VLAN, firewall, QoS, hotspot, and routing functionality
• Aluminum industrial housing
• IP30 ingress-protection rating
• -40°C to +75°C operating temperature

• Industrial IoT connectivity
• Machine-to-machine communications
• Factory automation systems
• Industrial control cabinets
• PLC and controller connectivity
• Remote equipment monitoring
• Cellular WAN for branch and remote locations
• Automatic cellular internet failover
• Retail stores and kiosks
• ATMs and payment systems
• Security and surveillance networks
• Remote camera installations
• Energy and utility infrastructure
• Renewable-energy sites
• Smart-city infrastructure
• Transportation networking
• Fleet and vehicle connectivity
• Digital signage
• Remote telemetry systems
• Building-management systems
• Managed networks requiring remote RMS administration
• VPN-connected field equipment
• MODBUS TCP and industrial data collection
• Primary or backup LTE connectivity for North American deployments

• 1 x Teltonika RUT361 Industrial Cellular Router
• 1 x 18 W US Power Supply
• 2 x Mobile Antennas, Swivel, SMA Male
• 2 x Wi-Fi Antennas, Swivel, RP-SMA Male
• 1 x Ethernet Cable, 1.5 m
• 1 x SIM Adapter Kit
• 1 x Quick Start Guide
• 1 x Packaging Box

Exact North American SKU: RUT361200800 is the RUT361 2***** North American configuration supplied as a standard package with a US power supply. Do not substitute band specifications from the RUT361 1***** EMEA, Australia, and Brazil hardware version.

North American LTE Bands: This version supports LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, and B71 plus LTE-TDD B41 and B48. Confirm that the intended carrier and deployment use compatible LTE bands.

3G Clarification: Generic RUT361 family specifications describe 3G capability, but Teltonika's current ordering table does not publish 3G bands for the RUT361 2***** North American version. Buyers should therefore base RUT361200800 deployments on its documented North American LTE band support rather than assuming 3G fallback.

LTE Cat 6 Performance: The router supports LTE Cat 6 carrier aggregation with theoretical cellular rates up to 300 Mbps download and 50 Mbps upload. Actual throughput depends on carrier provisioning, supported band combinations, network congestion, signal quality, antenna placement, and local tower capabilities.

Single SIM: RUT361 provides one external Mini-SIM slot. It is not a dual-SIM router, so deployments requiring automatic switching between two SIM cards should use a Teltonika model designed for dual-SIM operation.

SIM Size: The physical SIM holder accepts Mini-SIM / 2FF. The standard package includes a SIM adapter kit for supported smaller SIM formats.

Fast Ethernet: Both Ethernet interfaces operate at 10/100 Mbps. RUT361 does not provide Gigabit Ethernet, so wired throughput is limited by the Fast Ethernet interfaces even though LTE Cat 6 has a higher theoretical cellular maximum.

WAN and LAN Ports: The router provides one dedicated 10/100 Mbps WAN interface and one 10/100 Mbps LAN interface, allowing a wired internet connection to operate alongside cellular connectivity for failover and routing scenarios.

WAN Failover: RutOS can use cellular, wired WAN, and Wi-Fi WAN as network sources and automatically switch between available connections according to the configured failover policy.

2.4 GHz Wi-Fi Only: RUT361 provides IEEE 802.11b/g/n Wi-Fi on 2.4 GHz. It does not provide 5 GHz or 6 GHz wireless networking.

Wi-Fi Client Capacity: Teltonika specifies up to 50 simultaneous Wi-Fi connections. Real-world capacity depends on client activity, application requirements, RF interference, bandwidth demand, and available WAN throughput.

Mobile Antennas: Two SMA mobile antenna ports are provided for LTE operation. The standard package includes two swivel SMA mobile antennas, and both required antenna connections should be used for proper MIMO operation.

Wi-Fi Antennas: Two RP-SMA Wi-Fi antenna ports are provided for 2x2 Wi-Fi operation. These are RP-SMA connections and should not be confused with the standard SMA connectors used for the mobile antennas.

Included US Power Supply: RUT361200800 is specifically packaged with the US power supply. The current standard package uses an 18 W adapter providing 12 VDC / 1.5 A through the 4-pin power connector.

Industrial DC Power: The router itself accepts 9–30 VDC through its 4-pin industrial power socket, allowing it to be integrated with compatible industrial DC sources when the included AC adapter is not used.

Standard Power Interface: The standard RUT361200800 configuration is documented with the 4-pin DC power socket. Do not assume standard IEEE 802.3af/at/bt PoE input through the Ethernet ports.

Configurable I/O: Pins 3 and 4 of the power connector provide two configurable I/O channels. Each supported channel can be configured according to RutOS for digital-input or open-collector-output functionality.

RMS Compatibility: RUT361 supports the Teltonika Remote Management System for centralized monitoring, configuration, remote access, and fleet management. RMS service availability and licensing should be planned separately from the hardware purchase where applicable.

Industrial Protocol Support: MODBUS TCP, OPC UA, MQTT, DNP3, DLMS, Data to Server, and other RutOS functions make the router useful for industrial data collection and remote-control applications, but compatibility with a specific PLC, meter, controller, or cloud platform should be verified at the protocol and application level.

VPN Deployments: RUT361 supports multiple VPN technologies including OpenVPN, IPsec, WireGuard, ZeroTier, Tailscale, GRE, and DMVPN, making it suitable for secure remote access and site-to-site connectivity.

Optional Mounting Hardware: DIN-rail, wall, and flat-surface mounting are supported with appropriate Teltonika mounting accessories. Mounting hardware beyond the standard package should be selected separately based on the installation method.

Operating Environment: The aluminum housing is rated IP30 and the router operates from -40°C to +75°C. IP30 does not make the product weatherproof, so outdoor or wet-location installations require a suitable protective enclosure.

Best Fit: Teltonika RUT361200800 is a strong fit for MSPs, industrial integrators, OEMs, utilities, transportation operators, security installers, automation professionals, and IT teams that need a compact North American LTE Cat 6 router with carrier aggregation, wired WAN failover, 2.4 GHz Wi-Fi, industrial I/O, advanced RutOS networking, VPN support, and centralized RMS management.
