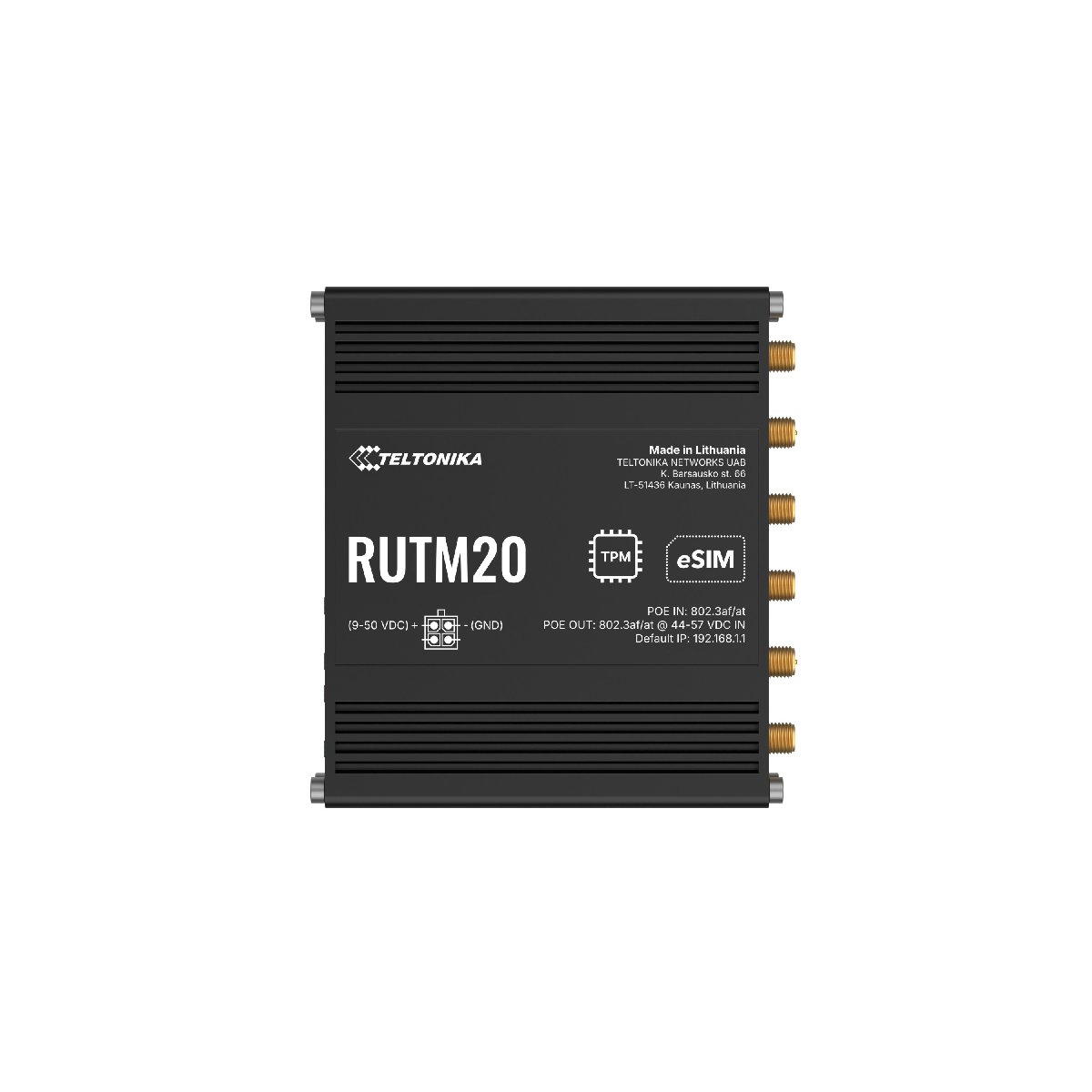

Teltonika RUTM20 (AU) Compact 5G Router
The Teltonika RUTM20100400 is an ultra-compact industrial 5G router designed for IoT, IIoT, retail, transportation, surveillance, remote monitoring, automation, and other space-constrained deployments that require high-speed cellular connectivity and dependable network redundancy. The RUTM20 combines a global 5G modem with dual physical SIM slots, integrated eSIM, dual-band Wi-Fi 5, Gigabit Ethernet, and Teltonika's RutOS operating system in a compact industrial enclosure.
This RUTM20100400 configuration uses Teltonika's Global RUTM20 cellular hardware and is supplied with an AU power supply. A key advantage of the RUTM20 is its flexible Power over Ethernet architecture: the WAN interface supports active IEEE 802.3af/at PoE input as well as passive PoE input, while the LAN interface can provide active IEEE 802.3af/at PoE output to a compatible downstream device. Combined with automatic cellular failover, eSIM carrier switching, advanced VPN services, industrial protocols, and Teltonika RMS support, the RUTM20 is well suited for compact professional installations where reliable global connectivity and simplified power delivery are important.
Key Features
- Ultra-compact industrial 5G router
- Global Telit 5G cellular modem
- 5G Sub-6 GHz Standalone and Non-Standalone support
- 3GPP Release 16 mobile platform
- Peak 5G download speeds up to 3.4 Gbps depending on network mode
- Peak 5G upload speeds up to 900 Mbps depending on network mode
- LTE Cat 19 download support up to 1.6 Gbps
- LTE Cat 18 upload support up to 211 Mbps
- 3G fallback support
- 2 x physical Mini-SIM slots
- Integrated consumer-type eSIM
- Supports up to 7 eSIM profiles
- Automatic SIM and eSIM switching scenarios
- Dual-band Wi-Fi 5 connectivity
- Wireless speeds up to 867 Mbps
- Supports up to 150 simultaneous Wi-Fi connections
- 1 x Gigabit Ethernet WAN port
- 1 x Gigabit Ethernet LAN port
- Active IEEE 802.3af/at PoE input through WAN
- Passive PoE input through WAN
- Active IEEE 802.3af/at PoE output through LAN
- PoE output capability up to 30 W with appropriate power input
- Automatic WAN failover and network backup
- Load balancing support
- BACnet, OPC UA, Modbus TCP, MQTT, DNP3, and DLMS/COSEM support
- Advanced VPN and firewall functionality
- TPM 2.0 hardware security
- RutOS operating system based on OpenWrt
- Remote monitoring and management through Teltonika RMS
- Wide -40°C to 75°C operating temperature range
- Anodized aluminum industrial housing
Applications & Use Cases
- Industrial IoT and IIoT connectivity
- Space-constrained industrial installations
- Point-of-sale and retail systems
- Digital signage and self-service kiosks
- Remote surveillance and IP camera installations
- Transportation and mobile networking
- Public transportation connectivity
- Fleet and service vehicle networks
- Industrial automation systems
- Remote equipment monitoring
- Utilities and smart metering infrastructure
- Energy and renewable-energy systems
- Building automation and BACnet applications
- Primary 5G Internet connectivity
- Backup cellular connectivity for fixed networks
- PoE-powered remote networking installations
- PoE-powered camera or access-point deployments
- Multi-carrier installations requiring automatic failover
- eSIM deployments requiring remote carrier switching
- Multi-site installations managed through Teltonika RMS
Technical Specifications
System & Cellular
- Manufacturer: Teltonika Networks
- Model: RUTM20
- Order Code: RUTM20100400
- Product Type: Compact Industrial 5G Router
- Hardware Family: RUTM20 1***** Global
- Package: Standard Package with AU PSU
- Mobile Technology: 5G, 4G LTE, 3G
- 3GPP Release: Release 16
- 5G Architecture: SA / NSA
- Maximum 5G Download: Up to 3.4 Gbps Depending on Network Mode
- Maximum 5G Upload: Up to 900 Mbps Depending on Network Mode
- LTE: Cat 19 Download / Cat 18 Upload
- Maximum LTE Download: Up to 1.6 Gbps
- Maximum LTE Upload: Up to 211 Mbps
- Maximum 3G Download: Up to 42 Mbps
- Maximum 3G Upload: Up to 5.7 Mbps
Global Cellular Bands
- 5G NR SA / NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
- 4G LTE: B1, B2/B25, B3, B4/B66, B26/B5/B18/B19, B7, B8, B12/B17, B13, B14, B20, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B71
- 3G: B1, B2, B4, B5/B6/B19, B8
- Band Availability: Certain supported cellular bands may be disabled by default depending on configuration and regulatory requirements
SIM & eSIM
- Physical SIM Slots: 2 x Mini-SIM / 2FF
- SIM Voltage: 1.8 V / 3 V
- eSIM: Integrated Consumer-Type eSIM
- eSIM Profiles: Up to 7 Profiles
- eSIM Operations: Profile Download and Removal
- Cellular Data Plan: Not Included
- Automatic Switching: Supported Between Compatible Physical SIM and eSIM Connections
- Switch Conditions: Weak Signal, Data Limit, SMS Limit, Roaming, No Network, Network Denied, Data Connection Failure
- SIM Idle Protection: Supported
- Multiple PDN: Supported
- Band Management: Band Lock and Active Band Status
Wi-Fi
- Wireless Standard: IEEE 802.11b/g/n/ac Wave 2
- Wi-Fi Generation: Wi-Fi 5
- Wireless Bands: 2.4 GHz and 5 GHz
- Maximum Wireless Rate: Up to 867 Mbps
- MU-MIMO: Supported
- Operating Modes: Access Point and Station
- Maximum Wi-Fi Clients: Up to 150 Simultaneous Connections
- Wireless Mesh: IEEE 802.11s
- Fast Roaming: IEEE 802.11r
- BSS Transition Management: IEEE 802.11v
- Radio Resource Measurement: IEEE 802.11k
- Wi-Fi Antenna Connectors: 2 x RP-SMA
Ethernet & Network
- Ethernet Ports: 2 x RJ45 10/100/1000 Mbps
- WAN: 1 x Gigabit Ethernet
- LAN: 1 x Gigabit Ethernet
- Auto MDI/MDIX: Supported
- WAN Failover: Supported
- Network Backup: Mobile, Wi-Fi WAN, Wired WAN, VRRP
- Load Balancing: Supported
- VLAN: Port and Tag-Based VLAN Separation
- QoS / SQM: Supported
- IPv4 / IPv6: Supported
- Policy-Based Routing: Supported
- Network Monitoring: Supported
PoE & Power
- DC Power Connector: 4-Pin Industrial DC Socket
- DC Input Voltage: 9–50 VDC
- Reverse Polarity Protection: Supported
- Voltage Surge / Transient Protection: Supported
- PoE Input Port: WAN
- Active PoE Input: IEEE 802.3af/at
- Active PoE Input Modes: Alternative A and B
- Passive PoE Input: 18–50 VDC, Mode A and B
- PoE Output Port: LAN
- Active PoE Output: IEEE 802.3af/at, Alternative A
- Maximum PoE Output: Up to 30 W Depending on Input Power Conditions
- Router Idle Power Consumption: Less Than 4.5 W
- Router Maximum Power Consumption: Less Than 8.5 W
Industrial Protocols & IoT Services
- BACnet: BACnet/IP Router
- OPC UA: Client and Server
- Modbus TCP: Client and Server
- Modbus Custom Registers: Supported
- MQTT: Broker and Publisher
- Modbus MQTT Gateway: Supported
- DNP3: Station and Outstation
- DLMS/COSEM: Client
- Data to Server: HTTP(S), MQTT, Azure MQTT
- Custom Data Processing: Supported Through Data to Server and Lua Scripting
VPN & Security
- OpenVPN: Client and Server
- IPsec: IKEv1 / IKEv2
- WireGuard: Client and Server
- ZeroTier: Supported
- Tailscale: Supported
- Tinc: Client and Server
- DMVPN: Supported
- L2TP: Supported
- SSTP: Client
- GRE: Supported
- TPM: TPM 2.0
- 802.1X: Port-Based Network Access Control Client and Server
- Firewall: NAT, Port Forwarding, Traffic Rules, DMZ, Custom Rules
- Attack Prevention: DDoS, Port Scan, SSH, HTTP, and HTTPS Protection
Management & System
- Operating System: RutOS Based on OpenWrt Linux
- CPU: MediaTek Dual-Core 880 MHz MIPS1004Kc
- RAM: 256 MB DDR3
- Flash Storage: 16 MB Serial NOR + 256 MB Serial NAND
- Web Interface: HTTP / HTTPS WebUI
- Remote Management: Teltonika RMS
- Firmware Management: WebUI, FOTA, RMS
- SSH: Supported
- TR-069: Supported
- SNMP: v1, v2, v3
- JSON-RPC: Supported
- Teltonika Networks Web API: Supported
- Cloud Integration: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
Physical & Environmental
- Mobile Antenna Connectors: 4 x SMA
- Wi-Fi Antenna Connectors: 2 x RP-SMA
- Housing: Anodized Aluminum Housing and Panels
- Dimensions: 100 x 30 x 93.8 mm
- Weight: 319 g
- Mounting: DIN Rail, Wall, or Flat Surface with Compatible Mounting Kit
- Ingress Protection: IP30
- Operating Temperature: -40°C to 75°C
- Operating Humidity: 10% to 90% Non-Condensing
- Regulatory: CE, UKCA, CB, RCM, FCC, WEEE
Package Includes
- 1 x Teltonika Networks RUTM20 Router
- 1 x 18 W AU Power Supply
- 4 x 5G Straight Compact Mobile SMA Antennas
- 2 x Straight Compact Wi-Fi RP-SMA Antennas
- 1 x Ethernet Cable, 1.5 m
- 1 x SIM Adapter Kit
- 1 x Quick Start Guide
Compatibility & Buying Information
RUTM20100400 AU Package: This order code uses Teltonika's RUTM20 1***** Global cellular hardware and is supplied in the standard package with an AU power supply. The AU designation refers to the supplied PSU package rather than limiting the cellular modem to Australian frequency bands.
Global 5G Hardware: The RUTM20 uses a global Telit 5G modem with broad 5G, LTE, and 3G frequency support. Carrier certification, enabled bands, local regulations, service-plan compatibility, and actual network availability should still be confirmed for the intended deployment.
5G SA & NSA: The router supports both Standalone and Non-Standalone 5G architectures. Actual throughput depends on the mobile operator, network architecture, supported bands, signal conditions, antenna placement, and service plan.
Australia & Global Deployment: The RUTM20100400 package includes the AU power supply while retaining the Global RUTM20 modem configuration. This makes the SKU particularly convenient for Australian deployments while maintaining broad cellular band support for compatible international applications.
Dual SIM + eSIM: Two physical Mini-SIM slots are combined with integrated consumer-type eSIM capability. Up to seven compatible eSIM profiles can be stored for flexible carrier provisioning and failover.
eSIM Data Service: Cellular and eSIM data plans are not included with the router. Compatible carrier service and provisioning are required.
Gigabit Ethernet: The RUTM20 includes one Gigabit WAN port and one Gigabit LAN port, providing wired throughput appropriate for high-speed cellular deployments.
Active PoE Input: The WAN port supports IEEE 802.3af/at active PoE input, allowing compatible installations to provide network connectivity and router power through the same Ethernet cable. Passive PoE input from 18–50 VDC is also supported.
Active PoE Output: The LAN port supports IEEE 802.3af/at active PoE output for powering a compatible downstream device. Available PoE output depends on how the RUTM20 itself is powered and can reach up to 30 W under supported input conditions.
Wi-Fi 5: Dual-band 802.11ac Wave 2 wireless networking provides speeds up to 867 Mbps and supports up to 150 simultaneous Wi-Fi connections under supported configurations.
Industrial Protocols: RutOS supports BACnet, OPC UA, Modbus TCP, MQTT, DNP3, DLMS/COSEM, and Data to Server functionality for integration with compatible industrial and IoT systems.
Remote Management: Teltonika RMS can be used to remotely monitor, configure, update, and access compatible RUTM20 deployments, helping reduce service visits for distributed installations.
Best Fit: The RUTM20100400 is a strong choice for Australian IoT integrators, industrial systems, transportation, retail, surveillance, kiosks, automation, and other space-constrained installations that need global 5G connectivity, dual SIM and eSIM flexibility, Gigabit Ethernet, Wi-Fi 5, active PoE input/output, VPNs, industrial protocols, and centralized remote management.
Interactive 3D Product View
Drag to rotate the RUTM20 and scroll or pinch to zoom.
Product Video
