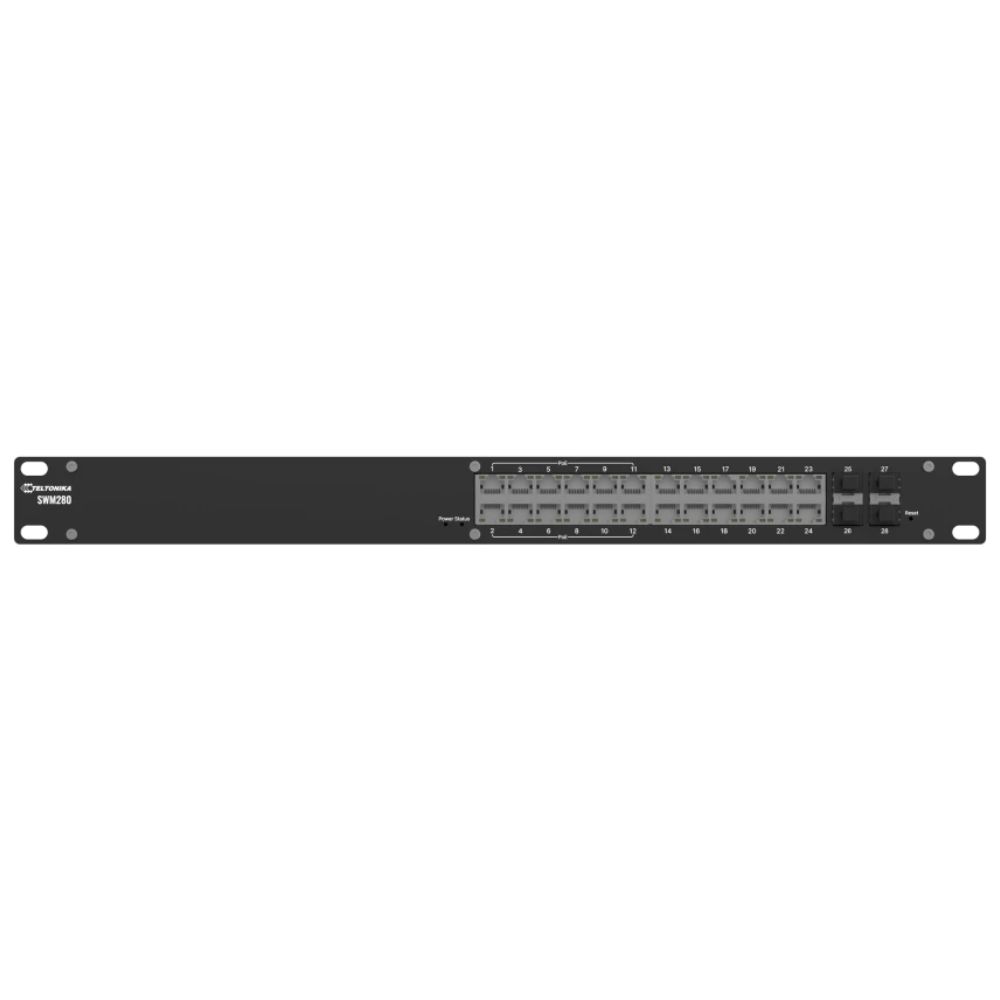

Teltonika SWM280 24-Port Switch

The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.

Features:

• 24 x Gigabit Ethernet ports (10/100/1000 Mbps) with auto MDI/MDIX crossover
• 4 x SFP fiber ports for long-range connectivity
• Supports IEEE 802.3 standards including 802.3af/at PoE+
• Industrial protocols: Profinet (Class B optional), EtherNet/IP, SNMP, LLDP
• Multi-layer managed switch with Layer 2 & Layer 3 capabilities (VLAN, static and dynamic routing)
• PoE+ support on ports 1–12 with up to 30 W per port and 300 W total budget
• Advanced security: 802.1x port-based access control, MAC filtering, Radius & TACACS+ authentication
• Traffic management: QoS (port priority, DSCP, 802.1p), rate limiting, and traffic shaping
• Diagnostics tools: cable diagnostics, ping, traceroute, and remote PoE port reboot
• Robust hardware: Anodized aluminum casing, IP30 rated, wide operating temperature (0–50 °C)
• Power input: 100–240 VAC with C14 connector
• Mounting options: Rack mount kit included
• Certifications: CE, UKCA, CB, RCM, FCC, IC
