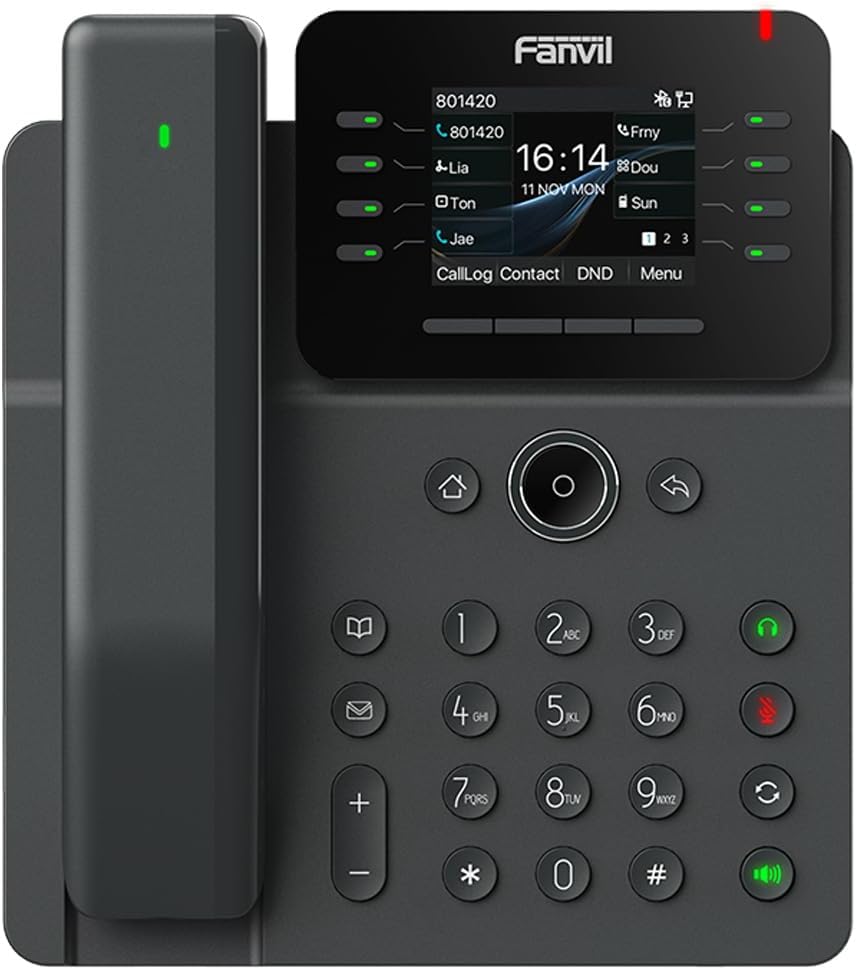

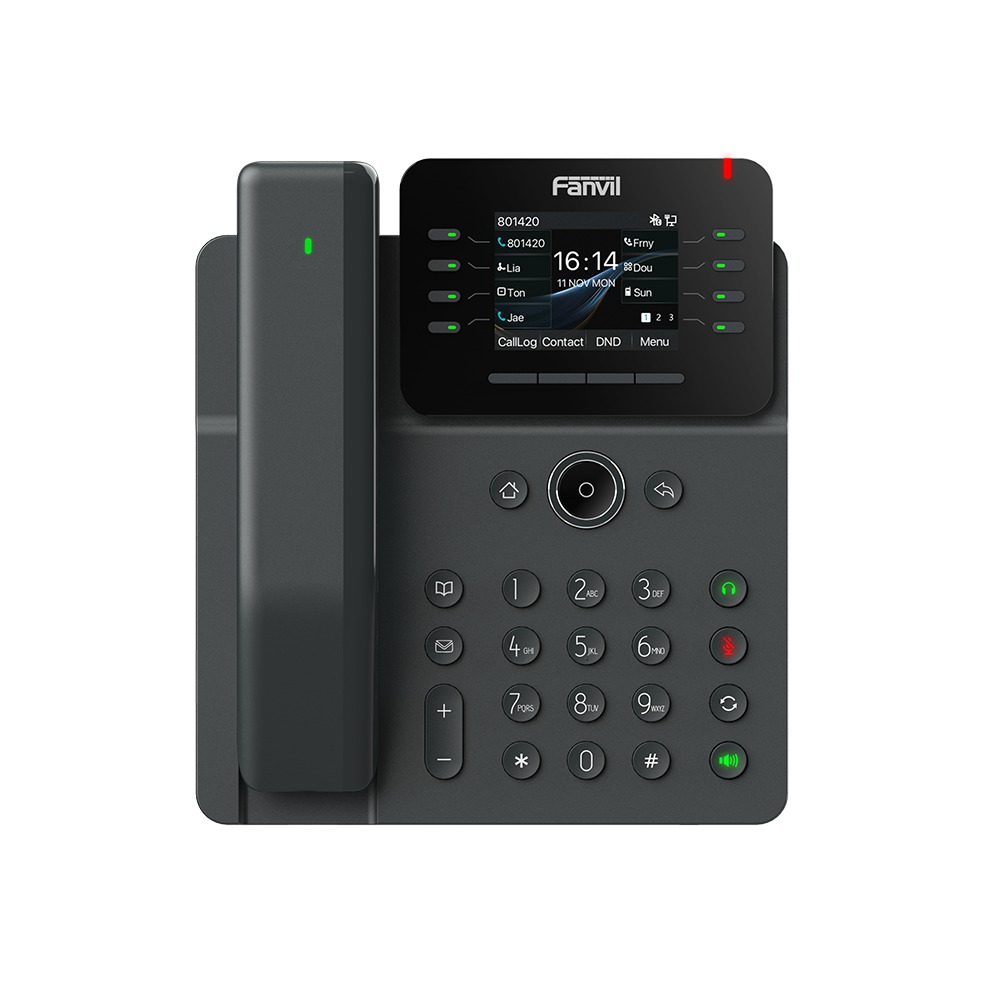

Fanvil V62 Pro - Mid-level IP Phone
The Fanvil V62 Pro is a professional business IP phone designed for office users who need advanced SIP calling features together with greater mobility around the workspace. It combines a 2.8-inch color display, 12 SIP lines, 6-way audio conferencing, HD voice, dual Gigabit Ethernet ports, integrated PoE, and up to 21 programmable DSS keys with the Fanvil BTH60 Bluetooth wireless handset.
The included Bluetooth wireless handset allows users to move away from the desk while remaining on a call, with a specified connection distance of up to 10 meters / 32 feet. Programmable handset controls, handset-locating functionality, Gigabit networking, EHS headset support, flexible provisioning, and desktop or optional wall-mount installation make the V62 Pro well suited for business offices, reception areas, managers, sales teams, and other professional VoIP deployments.
Key Features
- BTH60 Bluetooth Wireless Handset: Included wireless handset allows users to move away from the desk while remaining connected to calls.
- Up to 10-Meter Handset Range: Fanvil specifies a wireless handset connection distance of up to 10 meters / 32 feet.
- 12 SIP Lines: Supports up to 12 SIP accounts for business users managing multiple lines, extensions, or identities.
- 2.8-Inch Color Display: 320 × 240 color screen provides a clear interface for calling, contacts, DSS functions, and phone settings.
- 6-Way Audio Conferencing: Supports multi-party voice conferences directly from the desk phone.
- HD Voice: G.722 and Opus codecs provide wideband audio through the speakerphone and handset.
- Up to 21 DSS Keys: Programmable DSS functions can be configured for Line, BLF, Speed Dial, and other supported phone functions.
- Dual Gigabit Ethernet: Two 10/100/1000 Mbps Ethernet ports support high-speed network connectivity and PC passthrough.
- Integrated PoE: IEEE 802.3af PoE allows network connectivity and power through a single Ethernet cable.
- Programmable Handset Key: The BTH60 handset provides a programmable key for supported functions including DTMF, mute, hold, and speed dial.
- Handset Locator: The phone can help locate the Bluetooth wireless handset when it has been misplaced nearby.
- EHS Headset Support: Supports compatible Poly and Jabra wireless headset deployments through supported EHS cables.
Applications & Use Cases
- Business Offices: Provides multi-line SIP calling, programmable DSS functions, HD voice, and Gigabit networking for everyday professional communications.
- Managers & Executives: The Bluetooth wireless handset allows users to move around an office while remaining connected to active calls.
- Sales & Customer Service: Multiple SIP lines, programmable keys, call handling, conferencing, and headset support help streamline high-volume communications.
- Reception & Front Desk: BLF and programmable DSS functions can provide quick access to extensions, line status, transfers, and frequently used contacts.
- Open Office Environments: The wireless handset provides additional movement compared with a traditional corded handset while keeping a dedicated desk-phone workflow.
- Conference Calling: Built-in 6-way audio conferencing supports team discussions without requiring a separate conference phone for smaller meetings.
- PoE VoIP Deployments: Integrated IEEE 802.3af PoE simplifies installations by eliminating the need for a separate power connection when a compatible PoE network is available.
- MSP & Business Deployments: Auto provisioning, web management, VLAN, QoS, encryption, and standard SIP support make the V62 Pro suitable for managed business-phone installations.
Technical Specifications
Display & User Interface
- Display: 2.8-inch color screen
- Resolution: 320 × 240 pixels
- SIP Lines: 12
- DSS Keys: Up to 21 programmable DSS functions
- Local Phonebook: Up to 1000 entries
- Remote Phonebook: XML / LDAP
- Call History: Up to 1000 incoming, outgoing, and missed-call records
- Voice Message Waiting Indication: Supported
- Screen Saver: Supported
Bluetooth Wireless Handset
- Wireless Handset: Fanvil BTH60
- Connection Distance: Up to 10 m / 32 ft
- Battery Capacity: 300 mAh built-in battery
- Talk Time: Up to 13 hours
- Standby Time: Up to 14 hours
- Programmable Key: 1 programmable key with red LED
- Call Key: 1
- Volume Keys: 2, volume increase and decrease
- Status Indicator: Red, green, and blue LED
- Handset Search: Supported
- Automatic Pairing: Supported
- Handset Dimensions: 203 × 46 × 42.3 mm
- Handset Weight: 187 g
Calling & Conferencing
- Audio Conference: Up to 6-way
- Call Hold / Resume: Supported
- Call Waiting: Supported
- Call Forward: Always, Busy, No Answer
- Call Transfer: Attended and unattended
- BLF: Supported
- Call Parking / Pickup: Supported when provided by the server
- Do Not Disturb: Supported
- Auto Answer: Supported
- Hot Desking: Supported
- Direct IP Calling: Supported
- Multicast: Supported
- SIP Hotspot: Supported
Audio
- HD Voice: Supported on handset and speakerphone
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711A/U, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
- Acoustic Echo Cancellation: Full-duplex AEC
- Voice Processing: VAD, CNG, BNE, NR, AGC, PLC, adaptive jitter buffer
- DTMF: In-band, RFC2833, SIP INFO
- Voice Quality Monitoring: VQM supported
- Hearing Aid Compatibility: HAC supported
Network
- Ethernet Ports: 2 × RJ45 10/100/1000 Mbps Gigabit Ethernet ports
- PC Port: Bridged Gigabit Ethernet passthrough
- IP Modes: IPv4, IPv6, IPv4/IPv6
- IP Configuration: Static IP, DHCP, PPPoE
- Network Access Control: IEEE 802.1X
- VPN: L2TP, OpenVPN
- VLAN: Supported
- LLDP: Supported
- CDP: Supported
- QoS: Supported
- SIP Backup Server: Supported
Protocols & Security
- SIP: SIP 2.0 over UDP, TCP, and TLS
- Media: RTP, RTCP, SRTP
- DNS: A, SRV, NAPTR
- Additional Protocols: STUN, DHCP, PPPoE, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
- Encryption: AES128 and AES256
Interfaces & Headset Support
- Handset Port: 1 × RJ9
- Headset Port: 1 × RJ9
- Poly Wireless Headset Support: Through compatible Poly APD-80 EHS cable
- Jabra Wireless Headset Support: Through Fanvil EHS20 EHS cable
- Security Slot: 1
Power
- PoE: IEEE 802.3af
- DC Input: 5V DC / 2A
- External Power Adapter: Optional
- Power Consumption with Adapter: Approximately 1.35W to 4.40W
- Power Consumption with PoE: Approximately 1.89W to 5.60W
Provisioning & Management
- Web Management: Supported
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
- Configuration Import / Export: Supported
- Phonebook Import / Export: Supported
- Firmware Upgrade: Supported
- Web Packet Capture: Supported
- Syslog: Supported
Physical & Environment
- Color: Dark Gray
- Desktop Installation: 40-degree or 45-degree stand positions
- Wall Mounting: Supported with optional wall-mount bracket
- Dimensions at 40-Degree Stand Position: 191.8 × 164.5 × 174.2 mm
- Dimensions at 45-Degree Stand Position: 191.8 × 154.5 × 181.9 mm
- Wall-Mounted Dimensions: 191.8 × 91.6 × 215.6 mm
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 95% RH
Package Includes
- IP Phone: 1 × Fanvil V62 Pro
- Wireless Handset: 1 × Fanvil BTH60 Bluetooth wireless handset
- Ethernet Cable: 1 × network cable
- Desktop Stand: 1 × desk stand
- Quick Installation Guide: 1 × Fanvil V62 Pro Quick Installation Guide
Compatibility & Buying Information
The Fanvil V62 Pro is specifically designed around the BTH60 Bluetooth wireless handset. Fanvil states that the Bluetooth handsets are interchangeable across its V Series Pro models, providing flexibility for compatible V Series Pro deployments. The handset supports automatic pairing, a handset-locating function, programmable controls, and a specified operating distance of up to 10 meters / 32 feet.
The V62 Pro supports 12 SIP lines and 6-way audio conferencing. Some older V62 Pro datasheet text contains an incorrect reference to 2 SIP lines in the introductory paragraph, while the same datasheet's specification section, Fanvil's QIG, product page, and current documentation identify 12 SIP lines. This NTS page therefore uses the verified 12-line specification.
The phone includes dual Gigabit Ethernet ports and supports IEEE 802.3af PoE. A 5V DC / 2A external power option is also supported, but Fanvil identifies the external power adapter as optional. Deployments using a compatible PoE network do not require a separate AC adapter.
The standard V62 Pro configuration includes the Bluetooth wireless handset. Fanvil's package documentation identifies the traditional wired RJ9 handset, handset cord, external power adapter, and wall-mount bracket as optional items, so those accessories should not be assumed to be included with every V62 Pro SKU.
