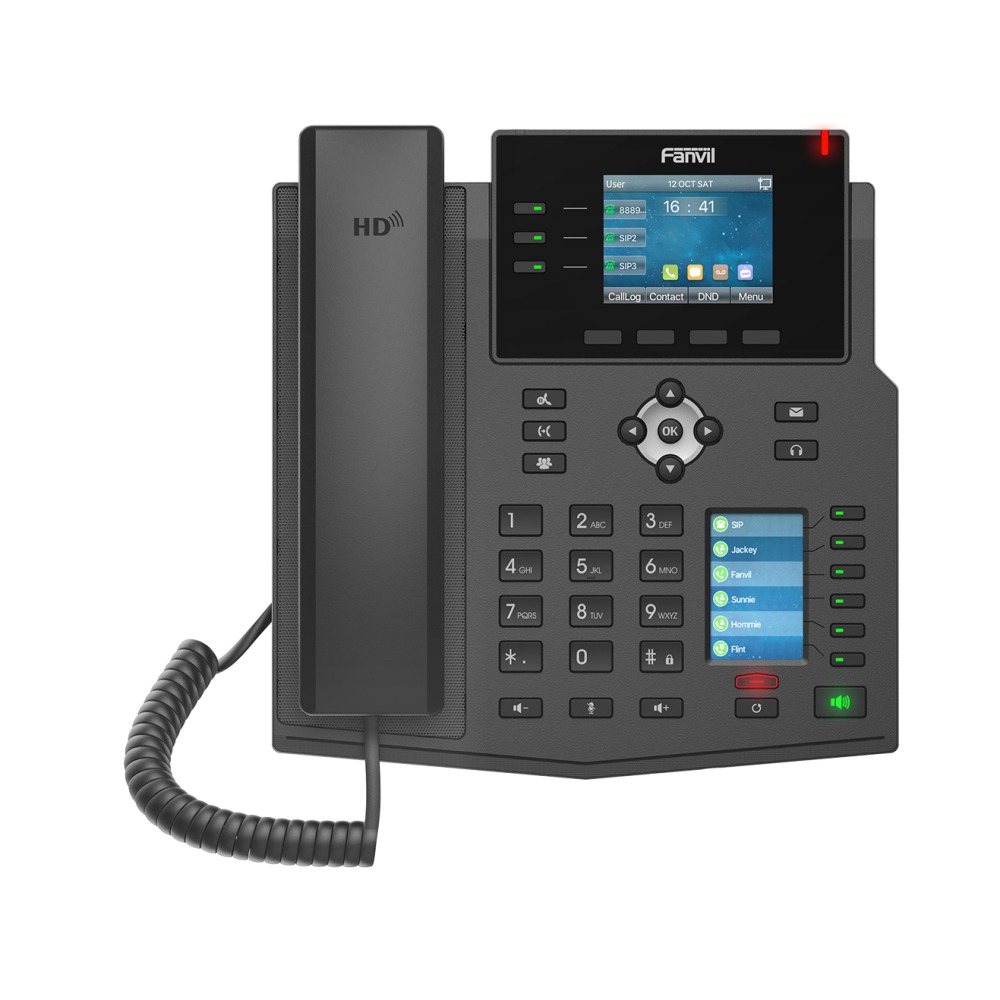

Fanvil X4U V2 Neutral
The Fanvil X4U V2 Neutral is a customizable neutral-branded business IP phone designed for professional VoIP deployments that need strong call handling, programmable keys, and Gigabit connectivity without fixed front-facing business branding. It features 12 SIP lines, a 2.8-inch main color display, a dedicated 2.4-inch DSS display, HD voice, 6-way audio conferencing, dual Gigabit Ethernet ports, and integrated PoE.
Built for offices, reception areas, sales teams, customer-service environments, MSP deployments, and private-label business communications, the X4U V2 provides up to 30 programmable DSS functions across five pages. USB expansion supports optional Fanvil Wi-Fi and Bluetooth dongles, while EHS headset compatibility, Opus audio, IPv4/IPv6 networking, centralized provisioning, and flexible desktop or wall-mounted installation make it a versatile business phone for managed SIP environments.
Key Features
- Neutral-Branded Design: Designed for deployments where the phone can be customized to fit business or service-provider branding requirements.
- 12 SIP Lines: Supports up to 12 SIP accounts for users managing multiple extensions, lines, or business identities.
- Dual Color Displays: Combines a 2.8-inch main color display with a dedicated 2.4-inch DSS display for quick access to programmable functions.
- Up to 30 DSS Functions: Six physical DSS keys with five selectable pages provide up to 30 programmable functions.
- 6-Way Audio Conferencing: Supports local multi-party audio conferencing directly from the phone.
- HD Voice: G.722 and Opus wideband codecs provide clear audio through both the handset and speakerphone.
- Dual Gigabit Ethernet: Two 10/100/1000 Mbps Ethernet ports provide high-speed network connectivity and PC passthrough.
- Integrated PoE: IEEE 802.3af PoE enables power and network connectivity through a single Ethernet connection.
- USB Expansion: USB 2.0 port supports optional Fanvil Wi-Fi and Bluetooth dongles or compatible USB storage.
- Wireless Headset Support: Supports compatible EHS wireless headset solutions for hands-free business communications.
- Hearing Aid Compatible: HAC handset supports users with compatible hearing devices.
- Flexible Installation: Adjustable desktop stand supports 45° and 50° viewing angles, with optional wall mounting available.
Applications & Use Cases
- Business Offices: Provides multi-line SIP calling, HD voice, programmable DSS functions, and Gigabit networking for everyday professional communications.
- MSP & Service Provider Deployments: Neutral branding makes the X4U V2 suitable for customized or private-label business-phone installations.
- Reception & Front Desk: Up to 30 DSS functions support BLF, extension monitoring, speed dial, transfers, and frequently used calling features.
- Sales & Customer Service: Twelve SIP lines, conferencing, headset support, and programmable functions help users manage frequent business calls.
- Administrative Workstations: Dual displays provide quick access to call information and programmable line functions without requiring a large touchscreen endpoint.
- Conference Calling: Built-in 6-way audio conferencing supports team discussions directly from the desktop phone.
- PoE VoIP Deployments: Integrated IEEE 802.3af PoE simplifies installation where compatible PoE switching is available.
- Managed SIP Rollouts: Auto provisioning, web management, VLAN, QoS, VPN, IPv6, and redundant SIP-server support make the phone suitable for standardized managed deployments.
Technical Specifications
Display & User Interface
- Main Display: 2.8-inch color LCD
- Main Display Resolution: 320 × 240 pixels
- DSS Display: 2.4-inch color LCD
- DSS Display Resolution: 240 × 320 pixels
- SIP Lines: 12
- Line Keys: 3 with LED indicators
- Physical DSS Keys: 6 with LED indicators
- DSS Pages: 5
- Programmable DSS Functions: Up to 30
- Soft Keys: 4
- Local Phonebook: Up to 1000 entries
- Remote Phonebook: XML / LDAP, up to 1000 entries
- Call Logs: Up to 1000 incoming, outgoing, and missed-call records
Calling & Conferencing
- Audio Conference: Up to 6-way
- Call Hold / Resume: Supported
- Call Waiting: Supported
- Call Forward: Always, Busy, No Answer
- Call Transfer: Attended and unattended
- Call Parking / Pickup: Supported when provided by the SIP server
- Do Not Disturb: Supported
- Auto Answer: Supported
- Hot Desking: Supported
- Direct IP Calling: Supported
- Multicast: Supported
- Primary & Backup SIP Servers: Supported
Audio
- HD Voice: Supported on handset and speakerphone
- Hearing Aid Compatibility: HAC handset
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711A/U, G.729, G.729A, G.729B, G.729AB, G.723.1, G.726, iLBC
- Speakerphone: Full-duplex Acoustic Echo Cancellation
- Voice Processing: VAD, CNG, BNE, NR, AGC, PLC, adaptive jitter buffer
- DTMF: In-band, RFC2833, SIP INFO
- Voice Quality Monitoring: VQM supported
Network
- Ethernet Ports: 2 × RJ45 10/100/1000 Mbps Gigabit Ethernet ports
- Network Port: 1 × Gigabit Ethernet
- PC Port: 1 × bridged Gigabit Ethernet
- IP Modes: IPv4, IPv6, IPv4/IPv6
- IP Configuration: Static IP, DHCP, PPPoE
- Network Access Control: IEEE 802.1X
- VPN: L2TP, OpenVPN
- VLAN: Supported
- LLDP: Supported
- QoS: Supported
- Redundant Servers: Supported
Protocols & Security
- SIP: SIP v1 and SIP v2 over UDP, TCP, and TLS
- Media: RTP, RTCP, SRTP
- Additional Protocols: STUN, DHCP, IPv6, PPPoE, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
- Encryption: AES128 and AES256
- HTTPS Mutual Authentication: Supported
- Network Firewall: Supported
USB & Headset Support
- USB Port: 1 × USB 2.0 Type-A
- Wi-Fi Support: Optional Fanvil WF20 USB Wi-Fi dongle
- Bluetooth Support: Optional Fanvil BT20 USB Bluetooth dongle
- USB Recording: Supported with compatible USB storage
- Handset Port: 1 × RJ9
- Headset Port: 1 × RJ9
- Poly Wireless Headset Support: Through compatible Poly APD-80 EHS cable
- Jabra Wireless Headset Support: Through Fanvil EHS20 EHS cable
- Security Slot: 1
Power
- PoE: IEEE 802.3af
- DC Input: 5V DC / 2A
- External Power Adapter: Optional
- Adapter Power Consumption: Approximately 0.87W to 4.72W
- PoE Power Consumption: Approximately 1.27W to 6.80W
Provisioning & Management
- Web Management: Supported
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
- Configuration Import / Export: Supported
- Phonebook Import / Export: Supported
- Firmware Upgrade: Supported
- Online Upgrade: Supported
- Web Packet Capture: Supported
- Syslog: Supported
Physical & Environment
- Color: Black
- Desktop Stand: 45° and 50° adjustable positions
- 45-Degree Dimensions: 214 × 188.6 × 181.1 mm
- 50-Degree Dimensions: 214 × 180.5 × 190.1 mm
- Wall-Mounted Dimensions: 214 × 119.4 × 219.1 mm
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 95% RH
Package Includes
- IP Phone: 1 × Fanvil X4U V2 Neutral
- Handset: 1 × HD handset
- Handset Cord: 1 × handset cord
- Ethernet Cable: 1 × Ethernet cable
- Desktop Stand: 1 × adjustable stand
- Quick Installation Guide: 1 × Fanvil X4U V2 Quick Installation Guide
Compatibility & Buying Information
- Neutral-Branded Version: This NTS SKU is the X4U V2 neutral-branded model and can be customized for business branding while retaining the standard X4U V2 hardware and phone functions.
- Power: Supports IEEE 802.3af PoE or an optional 5V DC / 2A power adapter. The AC adapter should not be assumed to be included.
- Wi-Fi: Wi-Fi is not built in; wireless networking requires the optional Fanvil WF20 USB Wi-Fi dongle.
- Bluetooth: Bluetooth is not built in; compatible Bluetooth functionality requires the optional Fanvil BT20 USB dongle.
- Wall Mounting: Requires the optional Fanvil WB102 wall-mount bracket, sold separately.
- Headset Compatibility: Supports compatible wired headsets and EHS wireless headset integrations; specific EHS cables or adapters are sold separately.
- SIP Platform Support: Designed for standards-based SIP deployments. PBX-dependent features such as BLF, call parking, voicemail, and some conferencing functions require compatible server configuration.
Manufacturer
FANVIL
Warranty
24 MONTH
Condition
NEW
